| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| 特徴: | 軽量 設置 耐久性 | 長さ: | 60m |
|---|---|---|---|
| 接着剤: | 自己接着 | 抗張力: | ≥80n/25mm |
| 応用: | 熱断熱と蒸気バリア | 伸長: | ≥15％ |
| 火災評価: | クラスA/クラス1 | 温度抵抗: | -30℃への120℃ |
| 反射率: | 97％ | 水蒸気の伝送速度: | ≤0.02g/m²•24時間 |
| 厚さ: | 0.03-0.05mm | 材料: | アルミホイル |
| 重さ: | 85-90GSM | 幅: | 1.2m |
| ハイライト: | flame retardant aluminum foil facing,aluminum-glass cloth duct wrap,mineral wool lamination foil |
||

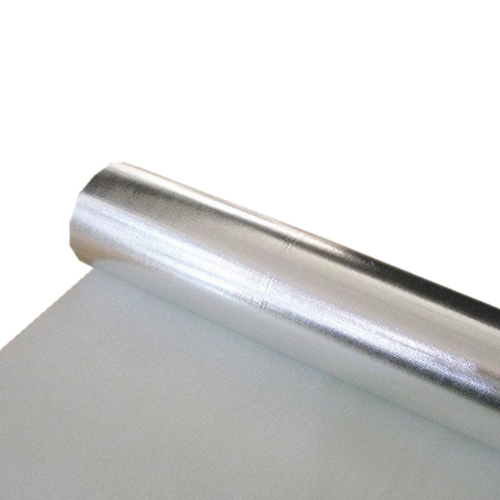

Product Introduction Of The ALUMINUM-GLASS CLOTH FOIL FACING
This versatile flame-retardant foil facing is the ideal partner for insulating blanket and board products. Specifically designed for online lamination with fiberglass, rock wool, and mineral wool insulation, it adds a critical layer of fire protection and a durable, reflective finish. Used as a duct wrap or as the facing on pre-fabricated insulation boards, it simplifies installation for contractors while providing a Class 1 fire-rated, vapor-tight seal for architectural and industrial insulation projects, from commercial walls to boiler insulation.

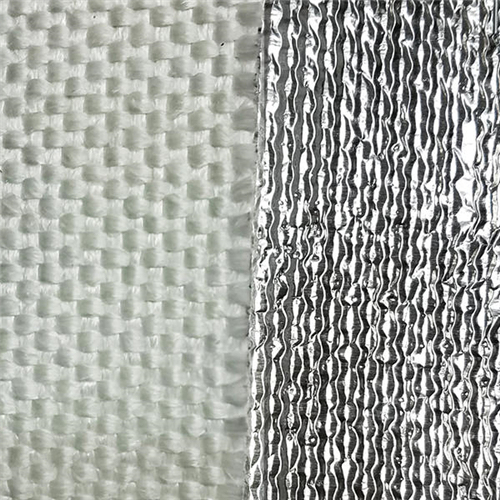

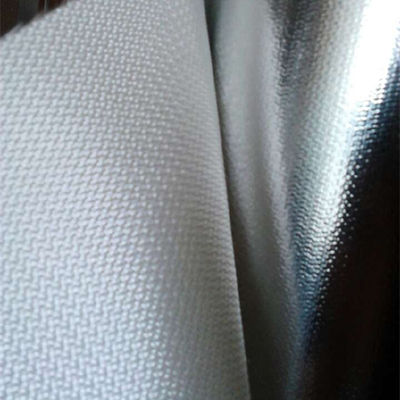

Product Details Of The ALUMINUM-GLASS CLOTH FOIL FACING
Product Parameter Of The ALUMINUM-GLASS CLOTH FOIL FACING
| Product | Construction |
|---|---|
| FG-701 | Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R701 | Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R1801 | Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
TYPICAL PHYSICAL PROPERTIES
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| FG-701 | 160 | 310 | 190 | 125 | 5.75 | 95% | -29~ +66 | ----- |
| FG-R701 | 130 | 260 | 180 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
| FG-R1801 | 170 | 300 | 160 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
Product Feature And Application Of The ALUMINUM-GLASS CLOTH FOIL FACING
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION:
Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.
