| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| 抗張力: | ≥40n/25mm | 熱反射性: | 97％ |
|---|---|---|---|
| 長さ: | 50m-100m | 応用: | 屋根、壁、屋根裏部屋、HVACダクト |
| 火災評価: | クラスA | パッキング: | ロールまたはシート |
| 材料: | アルミホイル | 幅: | 1m-1.5m |
| 厚さ: | 0.03mm-0.05mm | 色: | 銀 |
| 使用法: | 断熱材 | 水蒸気の伝送速度: | 0.02g/m²・24時間 |
| 伸長: | ≥10％ | 接着型タイプ: | 自己接着 |
| ハイライト: | heavy-duty aluminum foil,fiberglass heat barrier foil,industrial moisture barrier foil |
||

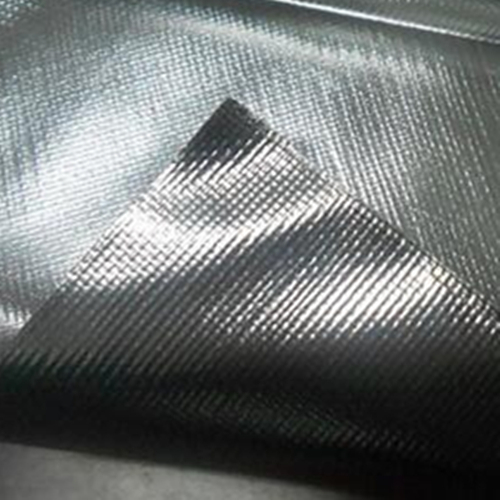

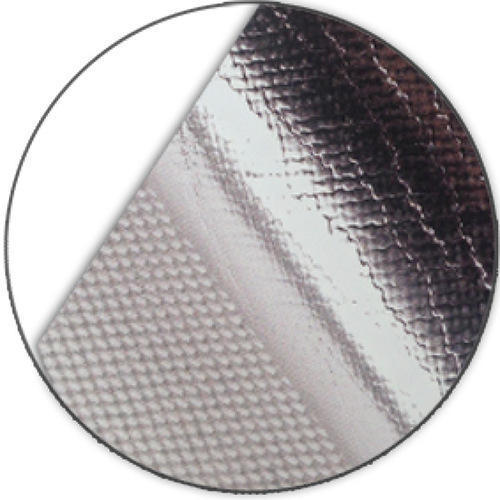

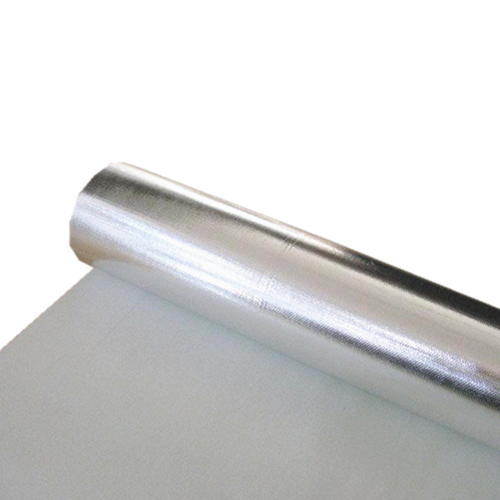

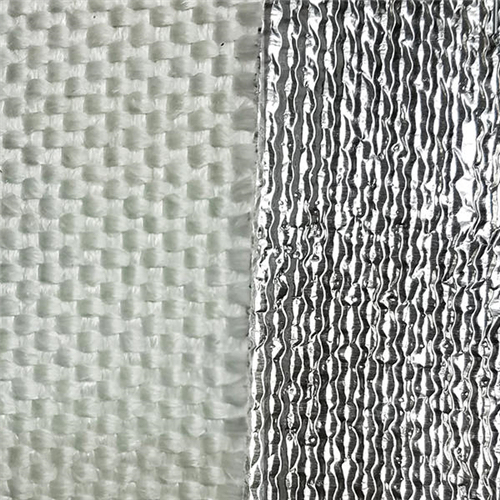

Product Introduction Of The ALUMINUM-GLASS CLOTH FOIL FACING
The FANRYN FG-R1801 is a heavy-duty, fire-retardant facing solution engineered for large industrial machinery, generators, and high-temperature equipment. Featuring a thicker 18-micron aluminum foil layer, it provides enhanced protection against intense heat, sparks, and moisture ingress. The flame-retardant adhesive and 95 gsm fiberglass cloth offer a Class 1 Fire Rating, making it a safe and reliable choice for protecting sensitive equipment from both environmental and operational hazards, thereby reducing downtime and maintenance costs.
Product Details Of The ALUMINUM-GLASS CLOTH FOIL FACING
Product Parameter Of The ALUMINUM-GLASS CLOTH FOIL FACING
|
Product |
Construction |
|
FG-701 |
Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R701 |
Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R1801 |
Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
TYPICAL PHYSICAL PROPERTIES
|
Product |
Basic weight (g/m²) |
Tensile MD (n/25mm) |
Tensile XD (n/25mm) |
Bursting Strength(n) |
WVTR (ng/N.s) |
Reflectivity of Foil Surface |
Temperature Resistance (℃) |
Fire Rating |
|
FG-701 |
160 |
310 |
190 |
125 |
5.75 |
95% |
-29~ +66 |
----- |
|
FG-R701 |
130 |
260 |
180 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FG-R1801 |
170 |
300 |
160 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
Product Feature And Application Of The ALUMINUM-GLASS CLOTH FOIL FACING
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION:
Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.

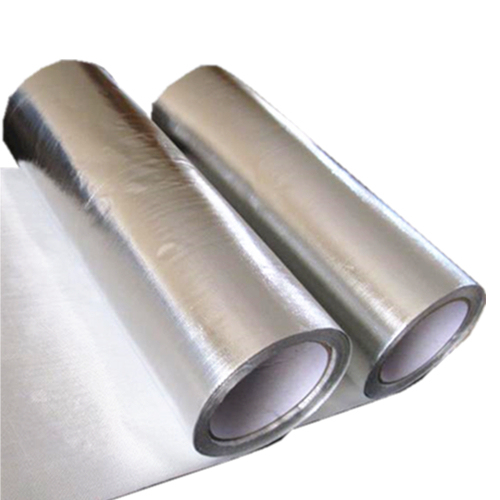

Product Shipping Of The ALUMINUM-GLASS CLOTH FOIL FACING
