| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| 圧縮強度: | 10〜100KPa | 材料: | ミネラルウール |
|---|---|---|---|
| 耐薬品性: | ほとんどの化学物質に耐性があります | 水分耐性: | 湿気に耐性があります |
| 耐火性: | クラスA1 | 熱伝導率: | 0.035-0.04 w/mk |
| 形状: | 繊維 | 応用: | 建物の断熱、産業断熱 |
| 温度範囲: | -200°Cから650°C | 断熱タイプ: | 熱絶縁 |
| 密度: | 10-100 kg/m3 | 音響の性能: | 音の吸収 |
| 吸収: | 1％未満 | 環境への影響: | 環境に優しい |
| ハイライト: | aluminum fiberglass foil facing,high strength insulation jacketing,pipeline equipment insulation foil |
||

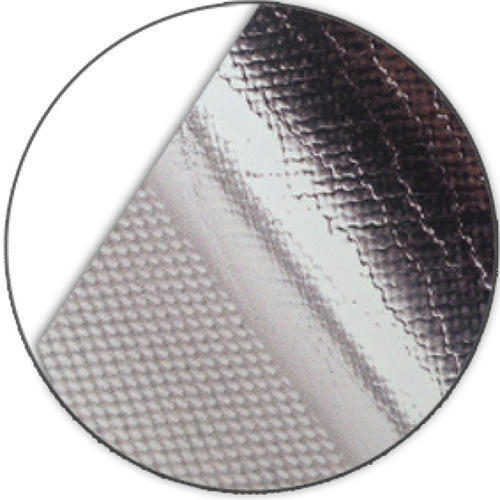

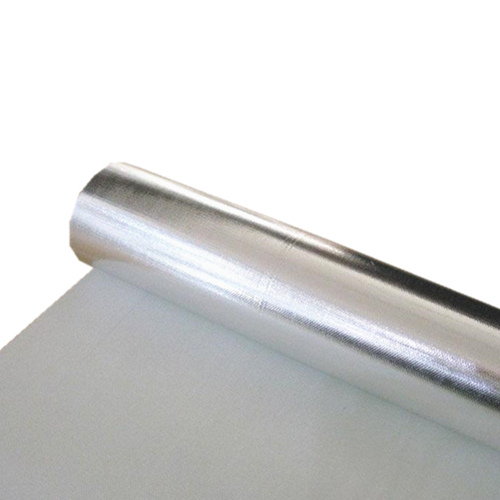

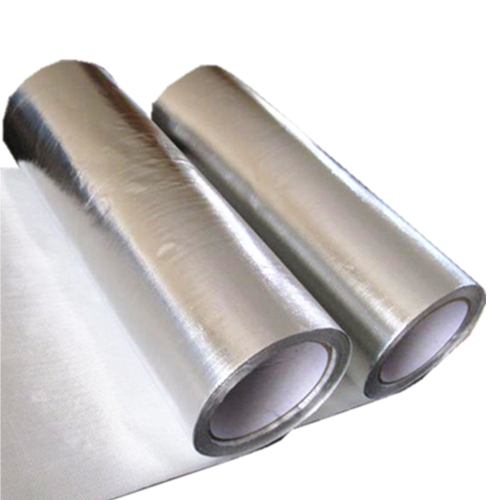

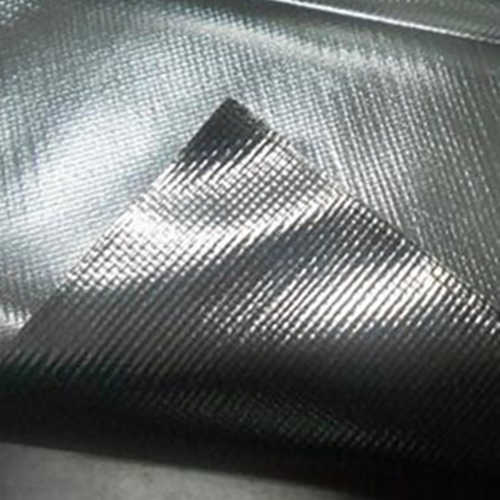

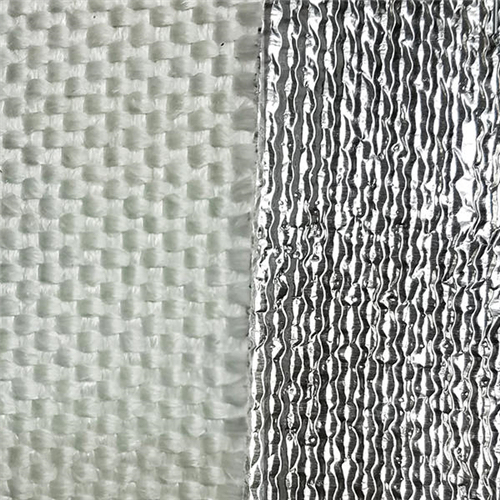

Designed for demanding industrial environments, the FANRYN FG-701 is a robust jacketing material that provides durable protection for pipelines, valves, and large equipment. The combination of a 7-micron aluminum foil and a heavy-duty 110 gsm fiberglass cloth, bonded with polyethylene, creates a tough, tear-resistant barrier against moisture, abrasion, and casual physical impact. Its high tensile strength ensures it remains intact during installation and throughout its long service life, safeguarding the underlying insulation in chemical plants, refineries, and power generation facilities.
| Product | Construction |
|---|---|
| FG-701 | Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R701 | Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R1801 | Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| FG-701 | 160 | 310 | 190 | 125 | 5.75 | 95% | -29~ +66 | ----- |
| FG-R701 | 130 | 260 | 180 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
| FG-R1801 | 170 | 300 | 160 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION: Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.
