| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| 幅: | 1.2m | 材料: | アルミホイル |
|---|---|---|---|
| 難燃剤: | クラスA | 長さ: | 60m |
| 応用: | HVACダクト、パイプ、および機器の断熱と蒸気バリア | 水蒸気の伝送速度: | ≤0.02g/m²・24時間 |
| 温度抵抗: | -30℃への120℃ | 皮の強度: | ≥6n/25mm |
| 抗張力: | ≥40n/25mm | 構造: | アルミホイル/接着剤/クラフトペーパー |
| 放射性: | 0.03 | 厚さ: | 0.03-0.08mm |
| 反射率: | 97％ | ||
| ハイライト: | fire retardant aluminum glass cloth foil,HVAC duct wrap vapor barrier,Class 1 rated foil facing |
||

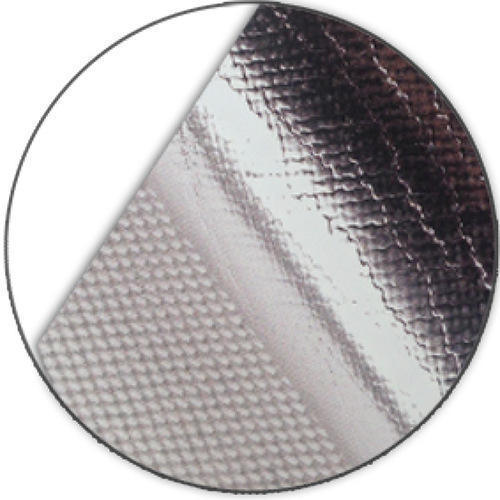

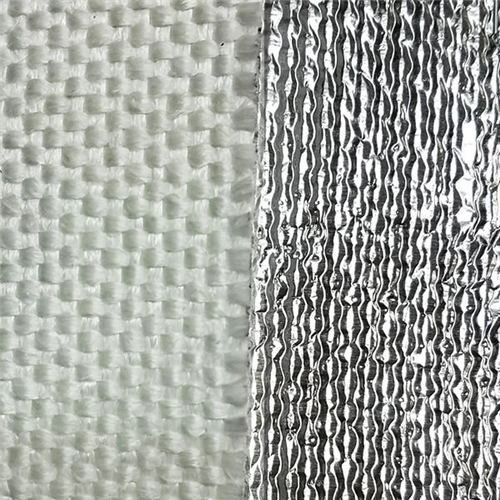

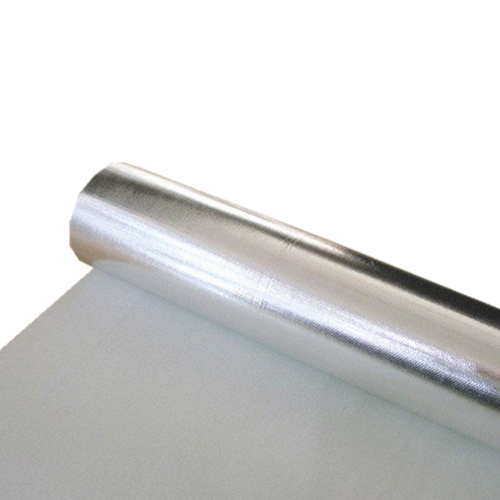

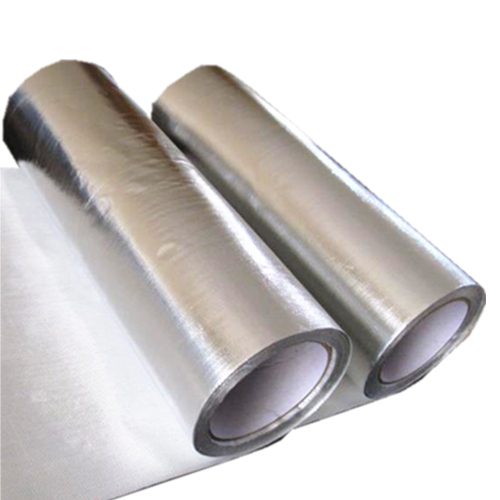

Product Introduction Of The ALUMINUM-GLASS CLOTH FOIL FACING
The FANRYN FG-R701 is a premium fire-retardant composite material engineered for critical applications in Heating, Ventilation, and Air Conditioning (HVAC) systems. Constructed with a 7-micron aluminum foil laminated to a 110 gsm fiberglass cloth using a flame-retardant adhesive, it effectively blocks vapor transmission and reflects radiant heat. Its Class 1 Fire Rating ensures it meets stringent safety standards, making it an indispensable solution for commercial buildings, hospitals, and schools where fire safety is paramount. This facing is also perfectly suited for laminating to duct insulation boards.
Product Details Of The ALUMINUM-GLASS CLOTH FOIL FACING
Product Parameter Of The ALUMINUM-GLASS CLOTH FOIL FACING
|
Product |
Construction |
|
FG-701 |
Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R701 |
Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R1801 |
Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
TYPICAL PHYSICAL PROPERTIES
|
Product |
Basic weight (g/m²) |
Tensile MD (n/25mm) |
Tensile XD (n/25mm) |
Bursting Strength(n) |
WVTR (ng/N.s) |
Reflectivity of Foil Surface |
Temperature Resistance (℃) |
Fire Rating |
|
FG-701 |
160 |
310 |
190 |
125 |
5.75 |
95% |
-29~ +66 |
----- |
|
FG-R701 |
130 |
260 |
180 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FG-R1801 |
170 |
300 |
160 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
Product Feature And Application Of The ALUMINUM-GLASS CLOTH FOIL FACING
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION:
Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.
