| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 証明: | CE, ASTM E84, EN 13501 12018 |
| モデル番号: | ミョウバン箔仕上げのロックウールボード |
| 最小注文数量: | 仕様ごとに1*40HQ |
| 価格: | 0.2-5$/m2 |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 7～10日 |
| 支払条件: | T/T |
| 供給の能力: | 1*40HQ 7日間 |
| 吸水性: | 低い | 耐湿性: | 良い |
|---|---|---|---|
| 製品名: | ミネラルウールボード | 熱伝導率: | <=0.044 W/m・K |
| 厚さ: | 30～100mm | 設置方法: | 機械的固定または接着 |
| 耐火性: | 不燃性A1種 | 色: | 茶色 |
| 寸法: | 通常は 600x1200 mm またはカスタマイズ | 吸音率: | 0.8～0.9 |
| 密度: | 40～200kg/m3 | 環境への影響: | リサイクル可能で環境に優しい |
| 応用: | 断熱、防火、防音 | 材料: | ミネラルウール |
| ハイライト: | aluminum foil rockwool insulation board,fireproof mineral wool panel,acoustic insulation rockwool board |
||
Products Description

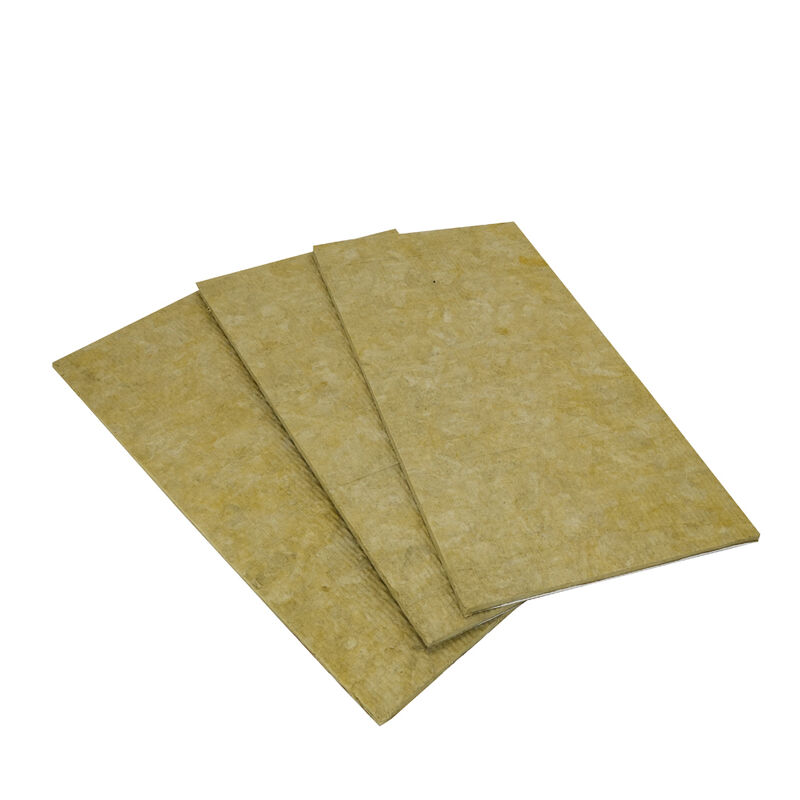

FANRYN Rock Wool Board is produced from naturally sourced volcanic rock, primarily basalt and dolomitic limestone. These raw materials are superheated to a molten state above 1450°C in a cupola furnace, then transformed into fine, inorganic fibers by a high-speed centrifugal spinner. The fibers are bonded with a thermosetting resin to form a dimensionally stable, resilient, and fire-resistant wool substrate.

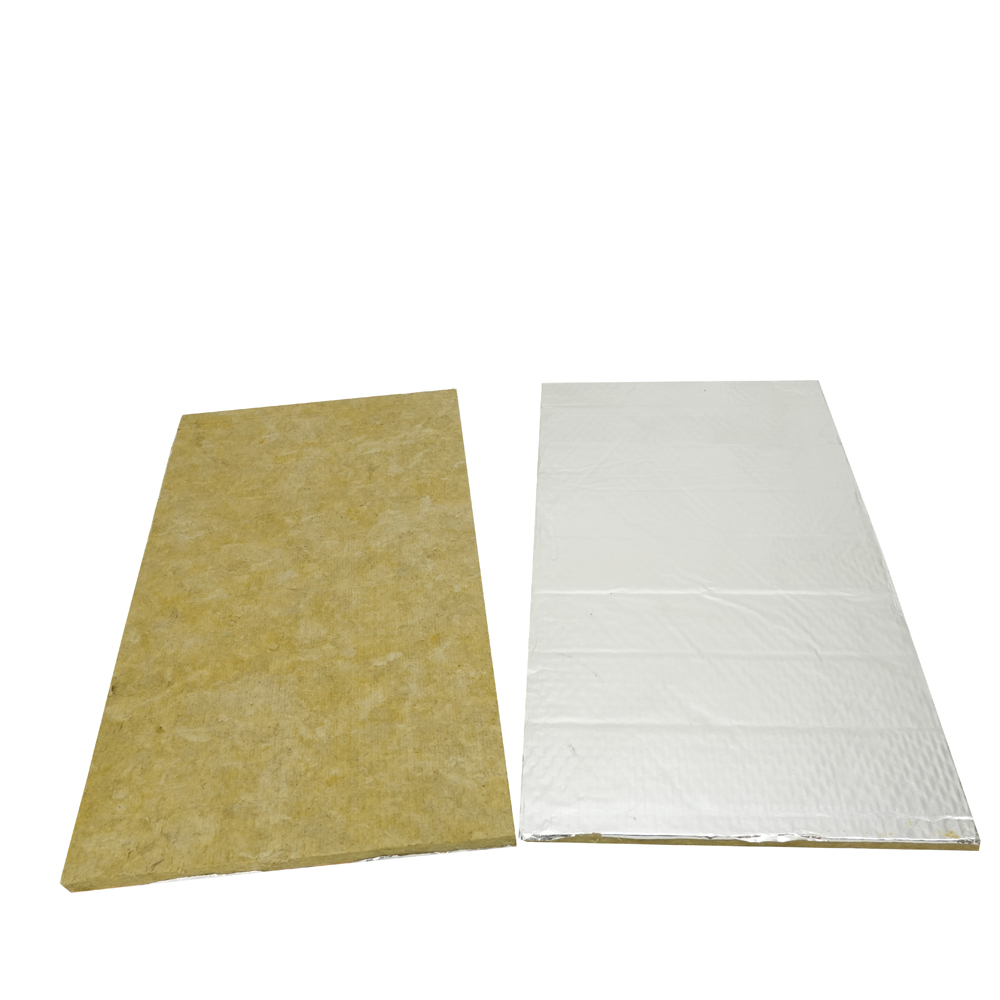

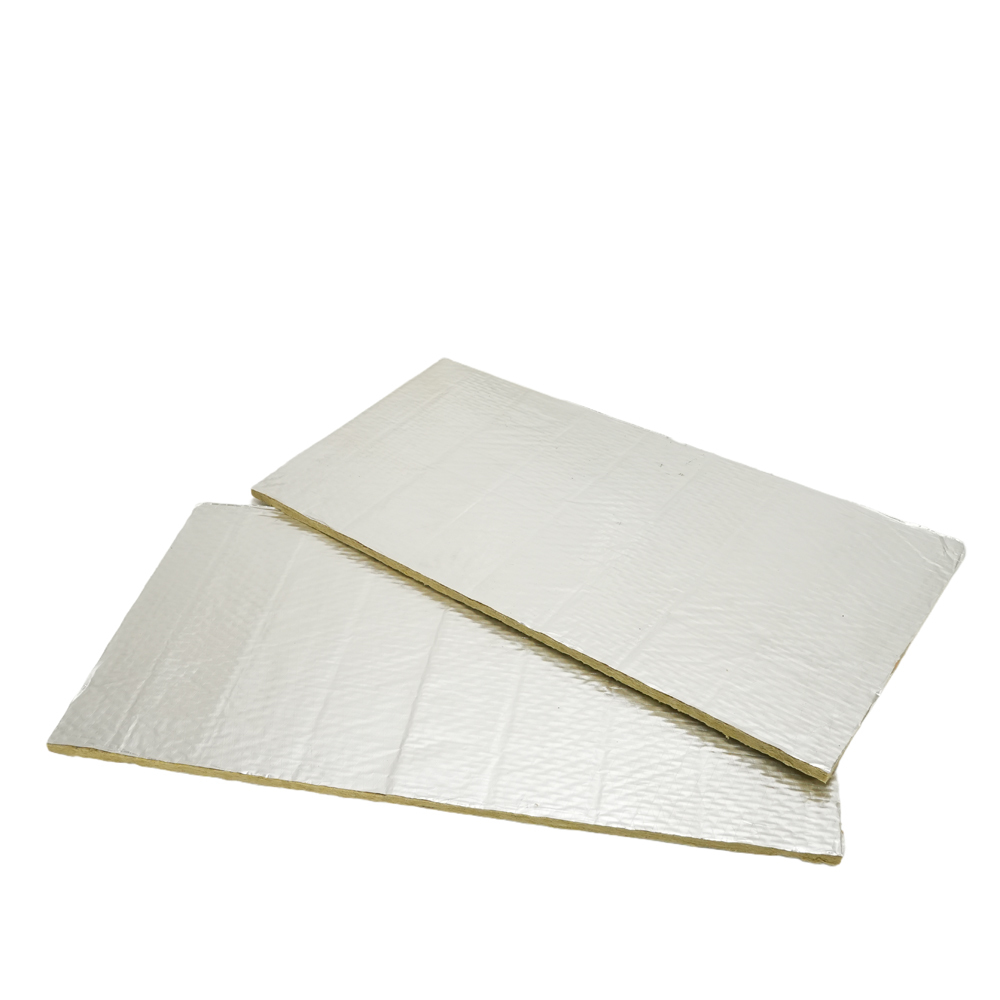

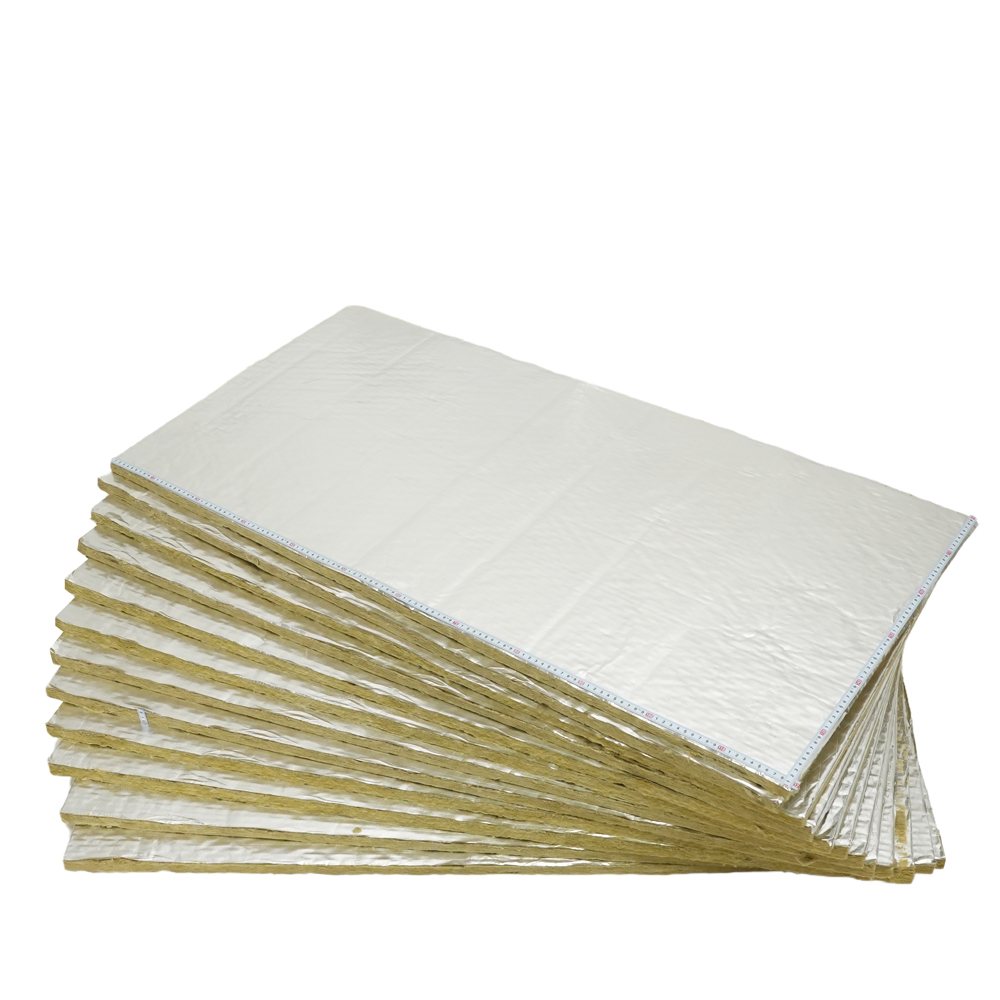

For enhanced functional performance, the board is factory-laminated on one side with a reinforced, puncture-resistant aluminium foil facing. This facing provides a durable radiant barrier that reflects thermal energy, significantly boosting overall thermal insulation effectiveness. It also acts as an advanced vapour barrier, blocking moisture ingress to maintain the insulation’s performance over time and prevent mould or corrosion. The smooth, robust surface offers improved handling and ease of installation, making it an ideal high-performance solution for HVAC ductwork, roofing assemblies, wall lining systems, and industrial thermal-acoustic applications.
Product feature of the rock wool board
Thermal & Energy Efficiency
The mineral wool matrix and reflective foil work together to significantly reduce heat transfer, cutting energy use for both heating and cooling.
Fire Safety
With an A1 non-combustible rock wool core and foil reinforcement, it ensures high fire resistance without toxic emissions, maintaining stability under extreme heat.
Acoustic Performance
The fibrous structure absorbs noise while the foil adds sound-blocking properties, improving indoor acoustic comfort.
Moisture & Corrosion Resistance
The foil acts as an effective vapour barrier, keeping the core dry to prevent mould and protect against corrosion.
Installation & Durability
Pre-cut panels with a tough foil surface allow for easy handling and installation, ensuring long-term reliability.
Product Specifications
|
Properties |
Board |
Standards |
|
Density Tolerance |
±10% |
GB/T 19686-2005 |
|
Fire Performance |
Non-Combustible |
GB/T 5464-1999 |
|
Reaction to fire Class A1 |
GB/T 8624-2006 |
|
|
Thermal Conductivity (W/mK, at70±5℃) |
≤0.044 |
GB/T 10295 |
|
Fiber Diameter |
7(+/-1)um |
GB/T 5480. 4 |
|
Shot Content (shot size＞0.25mm) |
≤12% |
|
|
Moisture Content |
≤0.5% |
|
|
Organic Matter Content |
≤4% |
|
|
Melting Point |
＞1000℃ |
|
Product size
|
Product |
Board |
|
Density (kg/m3) |
40-200 |
|
Size :L x W (mm) |
600X1200 |
|
Thickness (mm) |
30-100 |
Product application
1. Building & Construction
External Wall Insulation
Roofing Systems
Floating Floors
Partition Walls
2. Industrial & Pipeline Insulation
Large-Diameter Pipeline Insulation
Plant and Facility Cladding
3. Sector-Specific Uses
Public & Commercial Buildings
Residential Buildings
Industrial Plants
Production Facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing
1. Vacuum plastic bag
2. PE shrinking bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on rock wool board?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
