| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 証明: | CE, ASTM E84, EN 13501 12018 |
| モデル番号: | ミョウバン箔仕上げのロックウールボード |
| 最小注文数量: | 仕様ごとに1*40HQ |
| 価格: | 0.2-5$/m2 |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 7～10日 |
| 支払条件: | T/T |
| 供給の能力: | 1*40HQ 7日間 |
| 吸水性: | 低い | 耐湿性: | 良い |
|---|---|---|---|
| 製品名: | ミネラルウールボード | 熱伝導率: | <=0.044 W/m・K |
| 厚さ: | 30～100mm | 設置方法: | 機械的固定または接着 |
| 耐火性: | 不燃性A1種 | 色: | 茶色 |
| 寸法: | 通常は 600x1200 mm またはカスタマイズ | 吸音率: | 0.8～0.9 |
| 密度: | 40～200kg/m3 | 環境への影響: | リサイクル可能で環境に優しい |
| 応用: | 断熱、防火、防音 | 材料: | ミネラルウール |
| ハイライト: | Rockwool board heat insulation,Acoustic insulation mineral wool board,CE certified rockwool insulation board |
||
Products Description

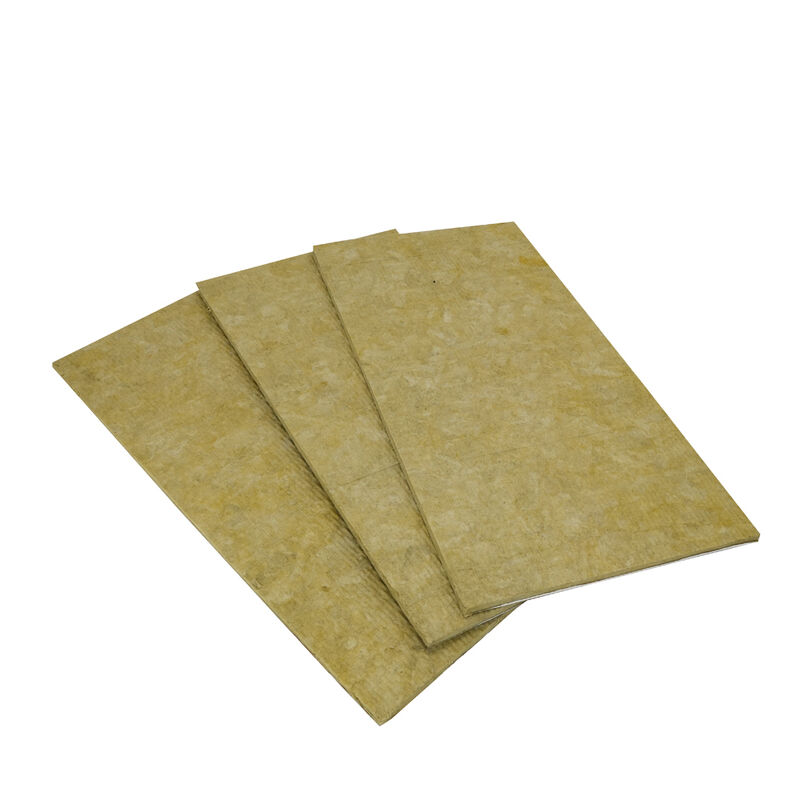

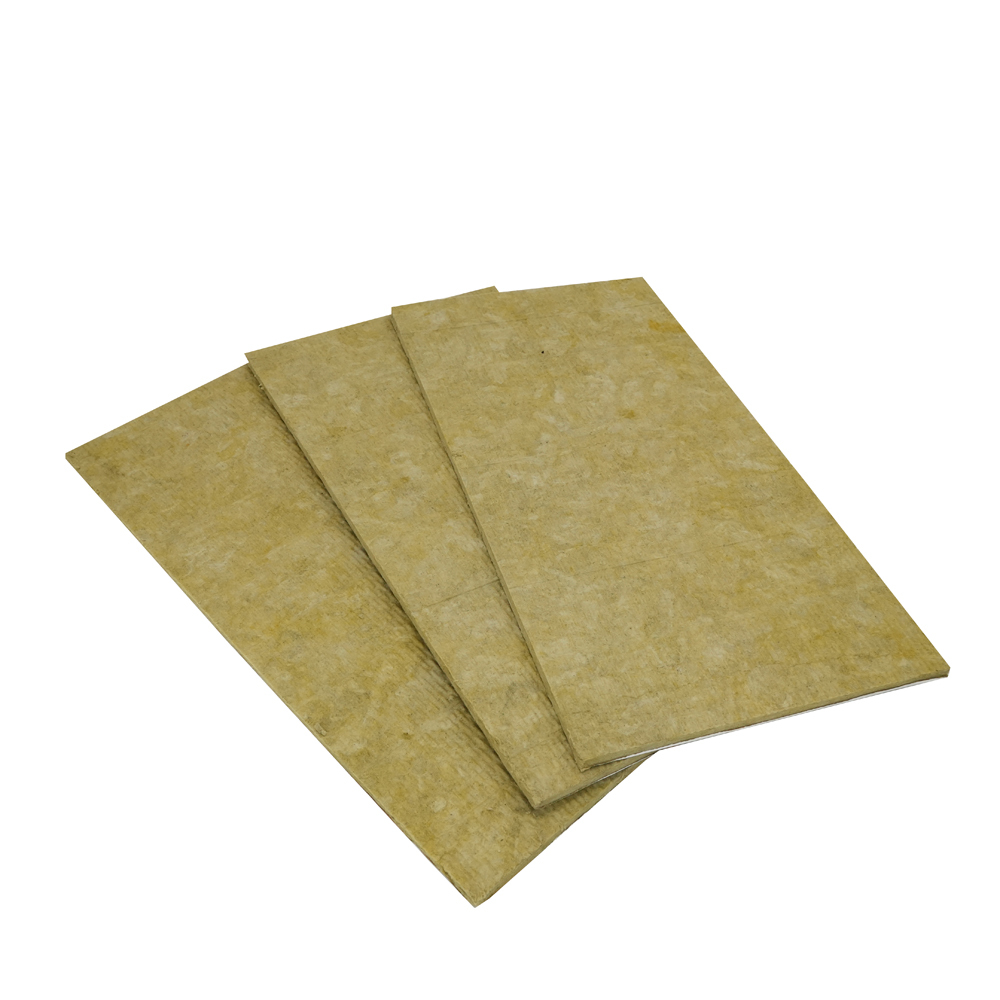

FANRYN Rock Wool Board is manufactured from natural rocks such as basalt and limestone. The rocks are melted in a cupola at temperatures exceeding 1450°C, and the molten lava is fiberized by a high-speed spinner. These inorganic fibers are then bonded using a thermosetting resin to form a stable and resilient wool matrix.

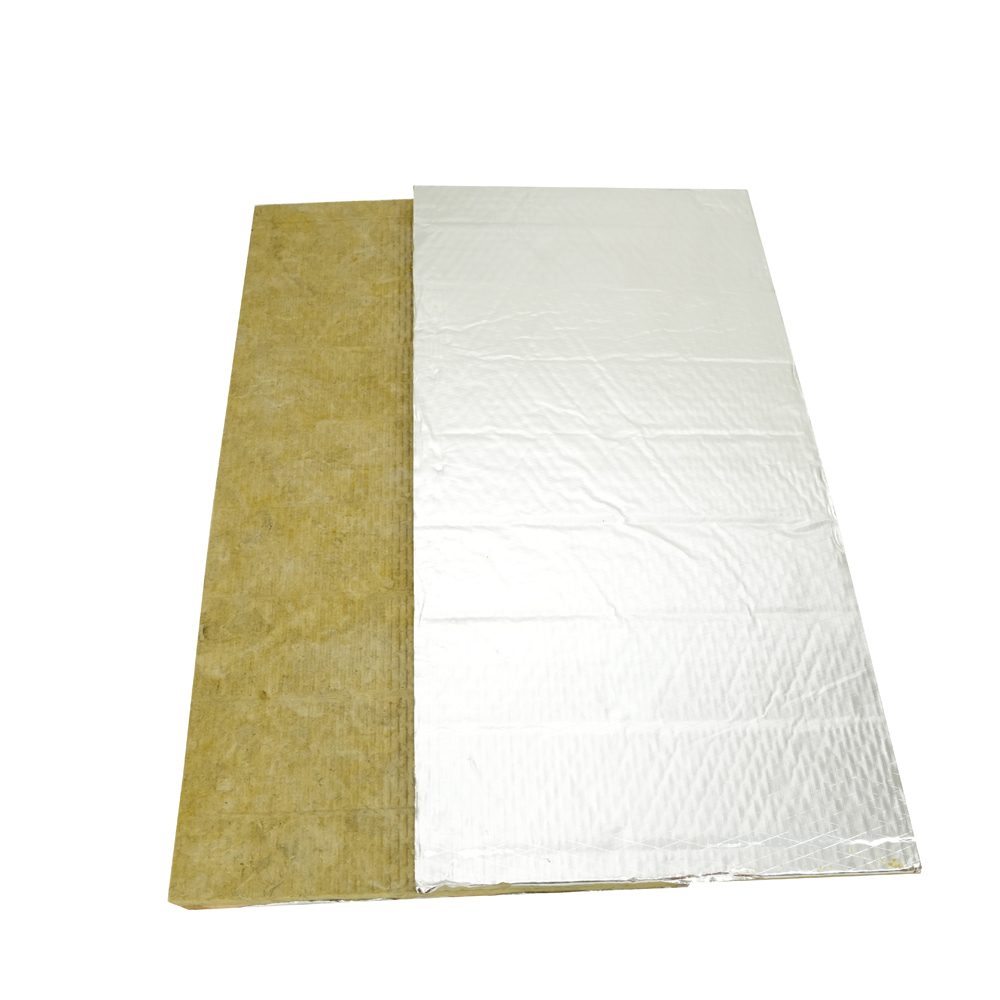

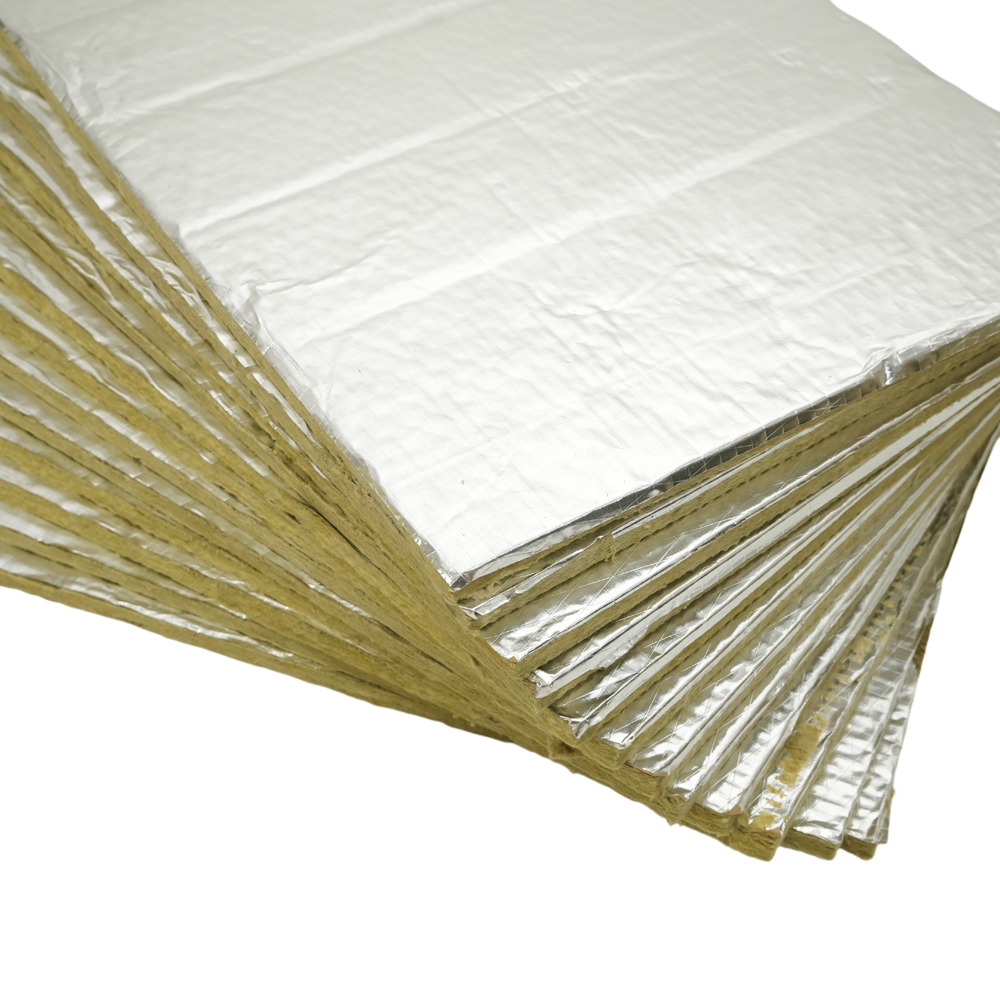

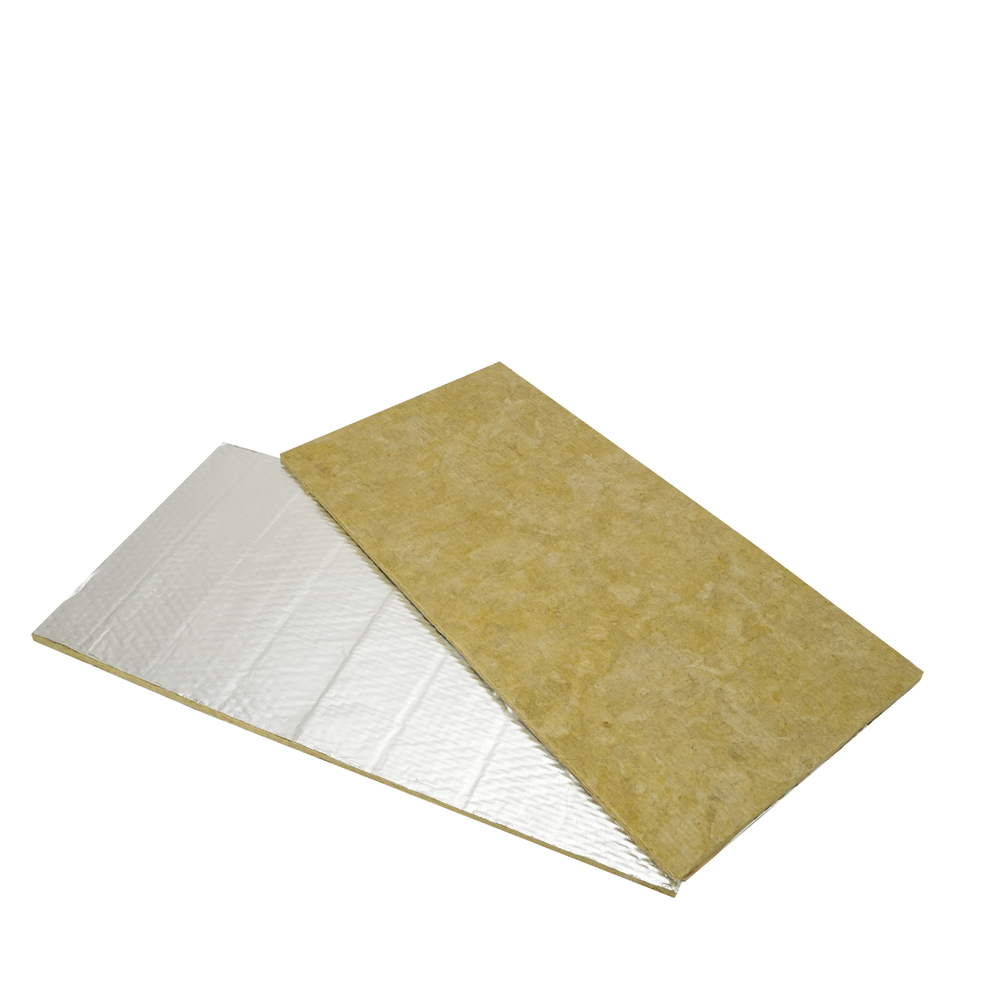

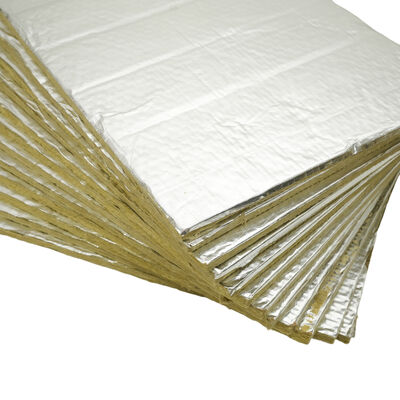

To enhance performance for specific applications, the board is laminated with a reinforced aluminium foil facing on one side. This durable foil layer acts as a radiant barrier, effectively reflecting heat to significantly improve overall thermal insulation efficiency. Simultaneously, it serves as a premium vapour barrier, effectively resisting moisture penetration to protect the integrity of the insulation core and prevent mould growth. The clean, robust surface also simplifies handling and installation, making it an ideal, high-performance solution for HVAC duct insulation, roofing systems, and wall linings.
Product feature of the rock wool board
Thermal & Energy Efficiency
Combining a dense mineral wool core with reflective aluminum foil, the product provides superior thermal insulation, significantly reducing heat transfer and lowering building energy use.
Fire Safety & Stability
With a non-combustible rock wool core (Class A1, no toxic emissions) and foil‑reinforced structure, the board delivers reliable fire protection and maintains stability even under high temperatures.
Acoustic Performance
The fibrous wool core absorbs noise, while the foil layer further blocks sound transmission, together enhancing acoustic comfort indoors.
Moisture & Corrosion Resistance
The aluminum foil facing serves as an effective vapor barrier, keeping the wool core dry, preventing mold, and protecting against corrosion for long‑term durability.
Durable & Easy to Install
Pre‑cut to standard sizes with a tough foil surface, the boards are simple to handle and install, resistant to site damage, and designed for lasting performance.
Product Specifications
Product size
Product application
Insulation for external wall, roofing and floating floor
Insulation for big sized pipeline
ROCK WOOL board is widely used in public, commercial and residential buildings as well as industrial plants, for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation, acoustic control and condensation control.
Production Facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing
1. Vacuum plastic bag
2. PE shrinking bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on rock wool board?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
