| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 証明: | CE, ASTM E84, EN 13501 12018 |
| モデル番号: | アルミ箔付きグラスウールボード |
| 最小注文数量: | 仕様ごとに1*40HQ |
| 価格: | 0.2-5$/m2 |
| パッケージの詳細: | 真空ビニール袋+不織布袋 |
| 受渡し時間: | 7～10日 |
| 支払条件: | T/T |
| 供給の能力: | 1*40HQ 7日間 |
| 熱伝導性: | 0.031～0.042W/m・K | 密度: | 24-96 kg/m3 |
|---|---|---|---|
| 環境への影響: | 再生利用できる、環境に優しい | 耐火性: | 不燃性A1種 |
| 吸音率: | 1.03 製品反響方法 24kg/m3 2000HZ | 水 吸収: | <1% |
| 製品名: | 断熱材のグラス ウール | 応用: | 建築物、産業機器の断熱材 |
| 厚さ: | 25-100 mm | 材料: | グラスウール |
| 色: | 黄色、茶色、赤 | 温度 抵抗: | -270℃～350℃ |
| 寸法: | さまざま (例: 600x1200 mm ボード) | ||
| ハイライト: | yellow glass wool insulation board,sound absorption fiberglass panel,fire-resistant unfaced glass wool |
||
Products Description

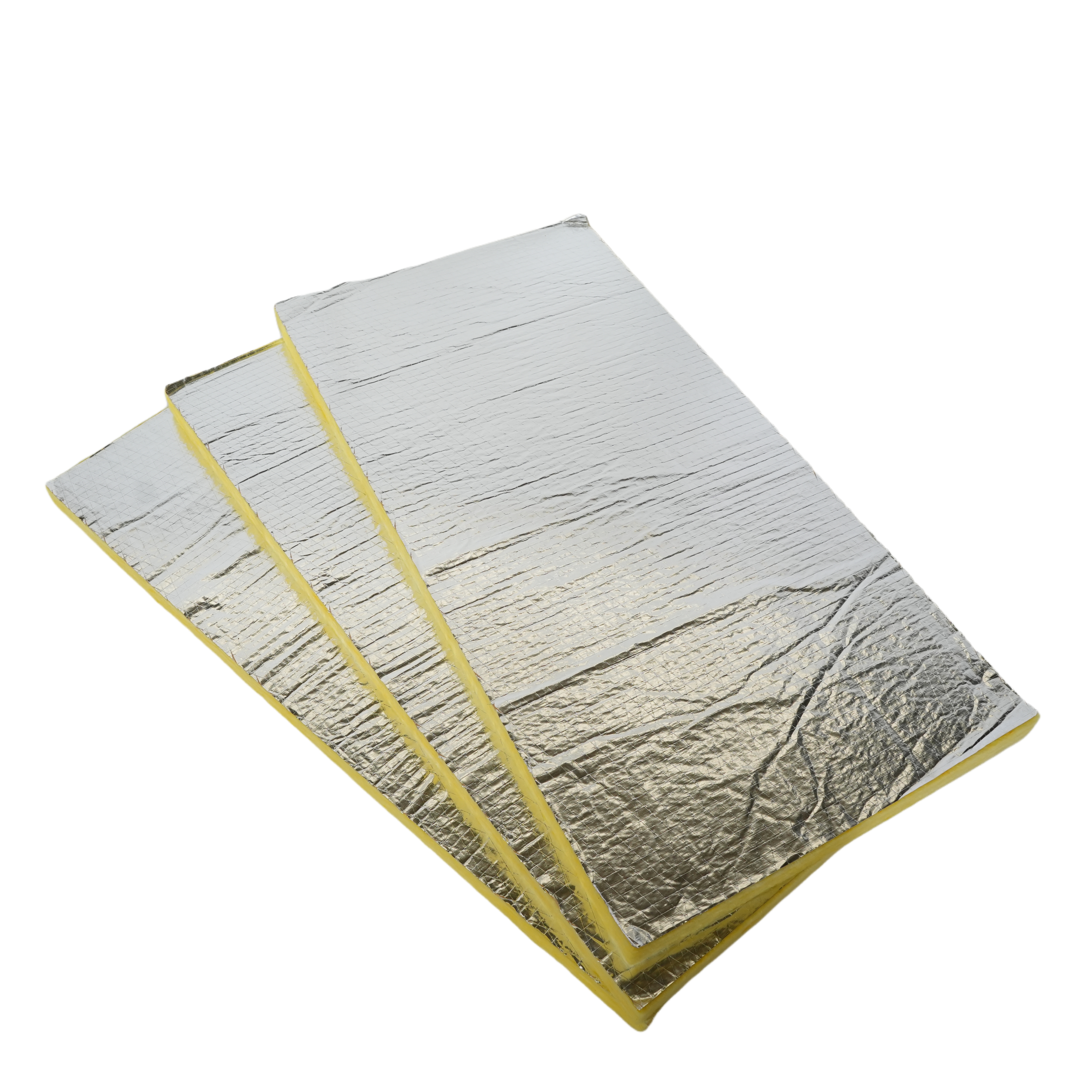

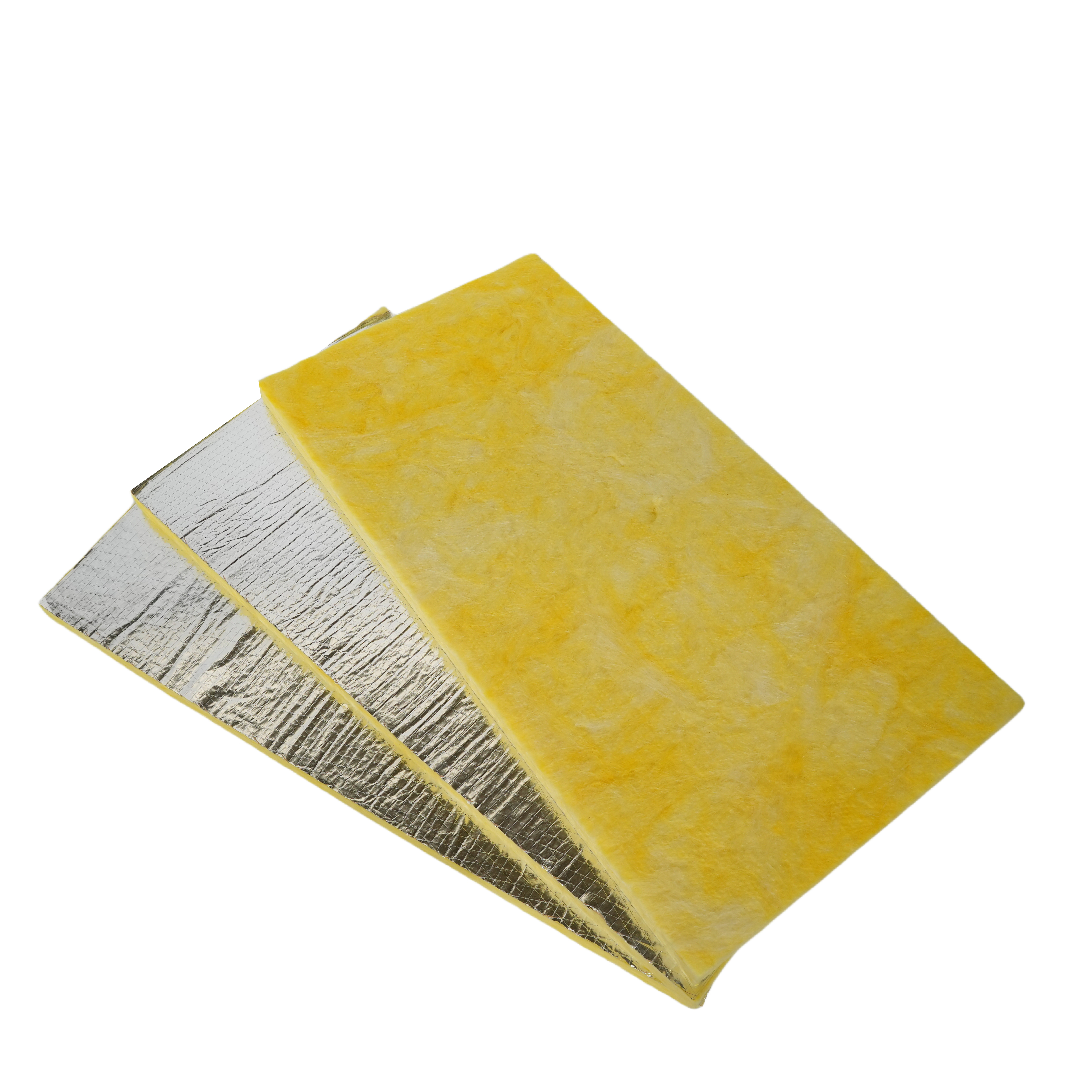

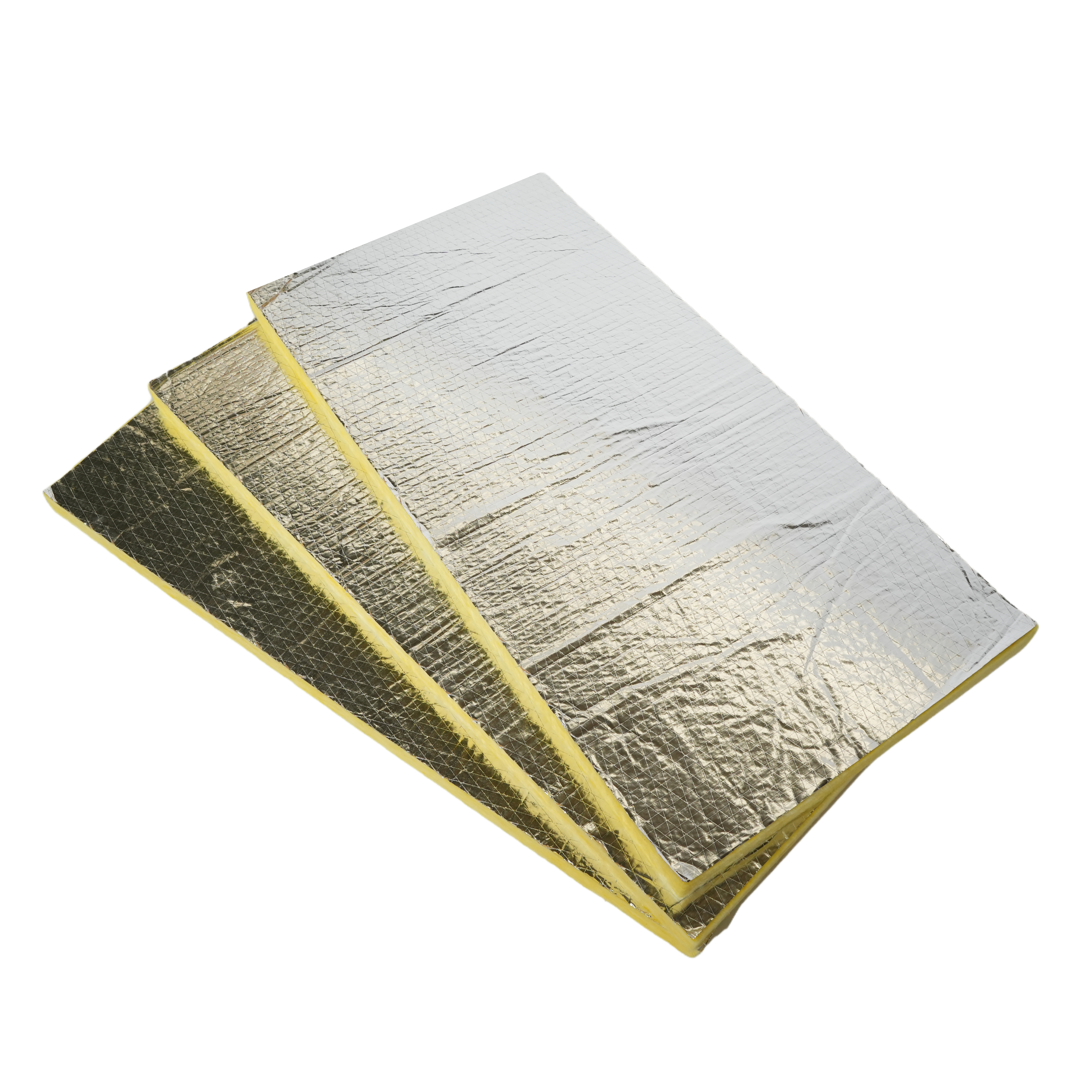

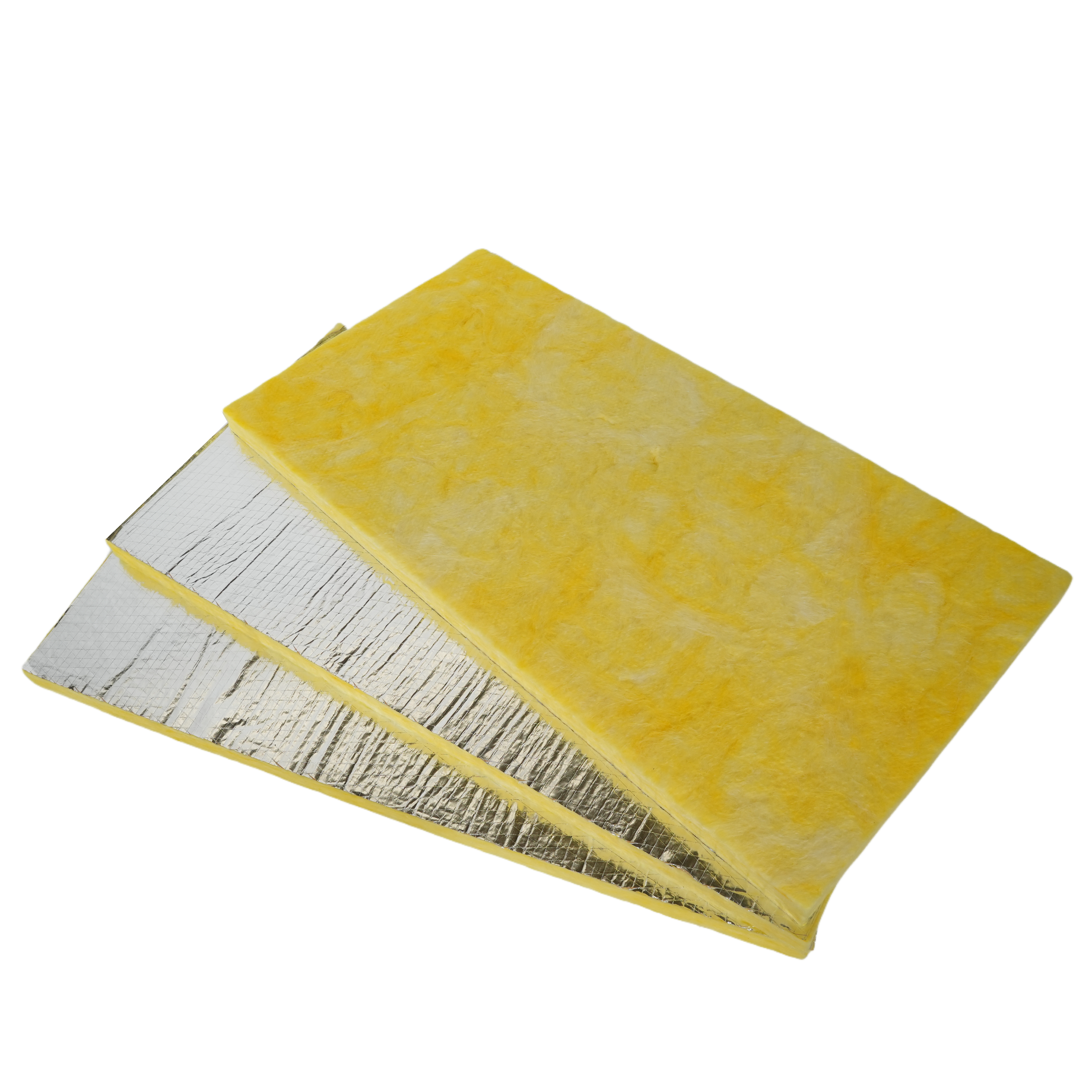

Aluminum foil-faced glass wool boards combine the inherent benefits of glass wool—non-combustibility, excellent thermal and acoustic insulation, and no toxic emissions when exposed to fire—with the added advantages of an integrated vapor barrier and enhanced radiant heat reflection. This makes them a superior, all-in-one, and environmentally responsible insulation solution for demanding building applications.
Product feature of the glass wool board with aluminum foil facing
Quick Recovery & Consistent Form: Regains full intended thickness within 24 hours after unpacking, ensuring uniform installation and reliable long-term dimensional stability.
Superior Workability: Composed of soft, long fibers that minimize dust and fiber fly during handling, creating a healthier and cleaner installation environment.
Enhanced Performance Layer: The foil facing reflects radiant heat, controls moisture diffusion, and provides a smooth, ready-to-cover surface—making it a complete insulation system in one product.
Product Specifications
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-100 |
GB/T 5480.3-1985 |
|
Average fiber dia. |
µm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Reshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m.k |
0.038-0.06 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m32000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤0.3 |
|
Product size of the glass wool board
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Pcs/packing |
|
24-96 |
0.025-0.1 |
0.6-1.25 |
0.6 |
5-18 |
|
24-96 |
0.025-0.1 |
0.6-2.4 |
1.1-1.25 |
5-18 |
Product application of the glass wool board
Wall Insulation
Steel Structure Insulation
Interior Partition Walls
Railway Carriage Interiors
Acoustic Absorption & Soundproofing
Production Facing For glass wool board
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing of the glass wool board
The normal packing is plastic bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
