| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| 材料: | グラスウール | サービス温度: | 300℃、350℃、400℃ |
|---|---|---|---|
| 火災評価: | クラスA | 関数: | 断熱性 |
| 環境に優しい: | 環境に優しい | 可燃性のグレード: | 不燃性GradeA |
| 水分耐性: | 非吸収剤 | 設置方法: | 簡単にカットして取り付けられます |
| 音の吸収: | 0.8～1.05 | 圧縮強度: | a |
| 保証: | 5年以上 | 熱伝導率: | 0.038W/mK |
| 適用範囲: | 空気調節の絶縁材 | 形: | 四角 |
| タイプ: | 寒さ や 熱 に 耐える | 密度: | 10-48kg/m3、10-100kg/立方メートル、24-90kg/m3、50-200kg/m3、10-80kg/m3 グラスウールボード |
| 色: | イエロー、イエロー/ピンク、ブルーまたはカスタマイズされた、シルバー、ホワイトシーブルーグレー | 厚さ: | 25mm-200mm、50mm 75mm 100mm、30mm、25-150mm、25mm/30mm/50mm/75mm/100mm |
| アプリケーション: | 建築、床暖房、建築、冷暖房断熱、壁防音 | 幅: | 600-1200mm、1.2m、1m/1.2m/1.22m、0.6m、600mm |
| 熱伝導率: | 0.034-0.06w/mk、0.032-0.06 w/mk、0.040 W/mK、≤ 0.039 | ||
| ハイライト: | HVAC duct board glass wool,laminated glass wool duct board,air conditioning duct board insulation |
||

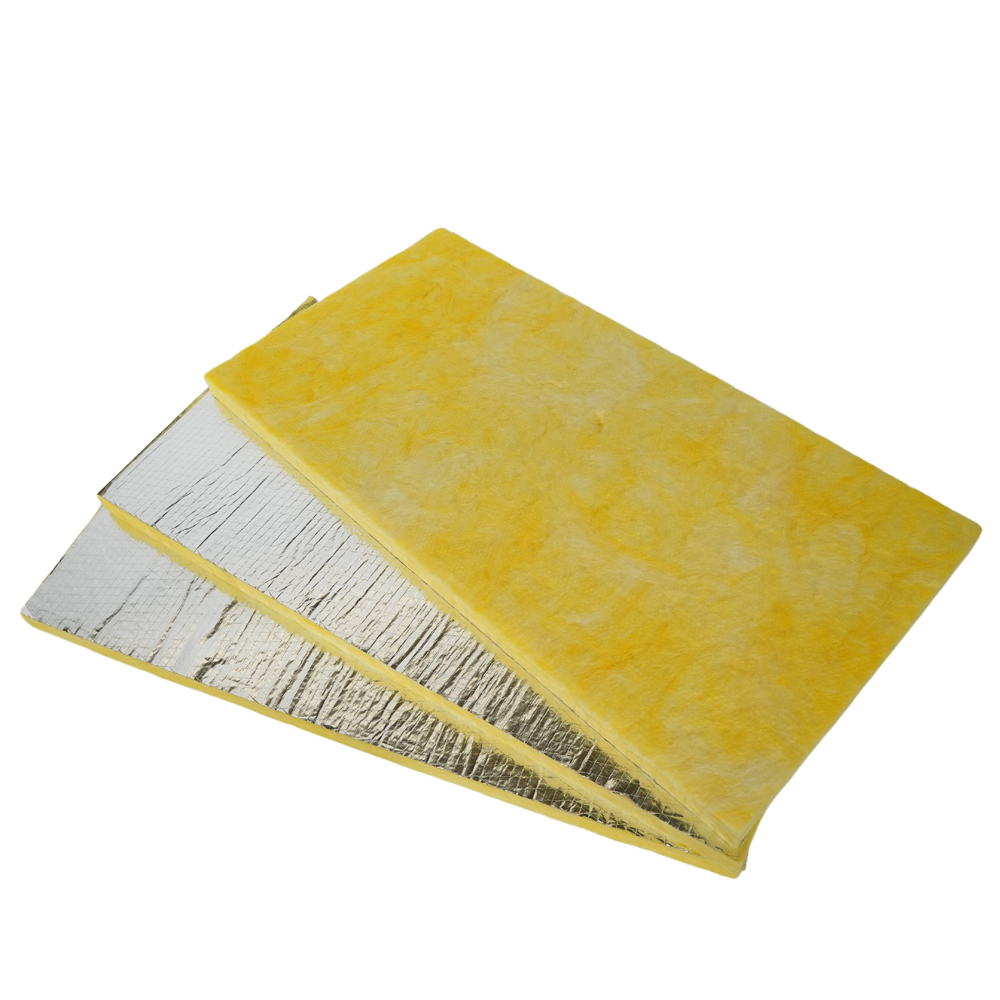

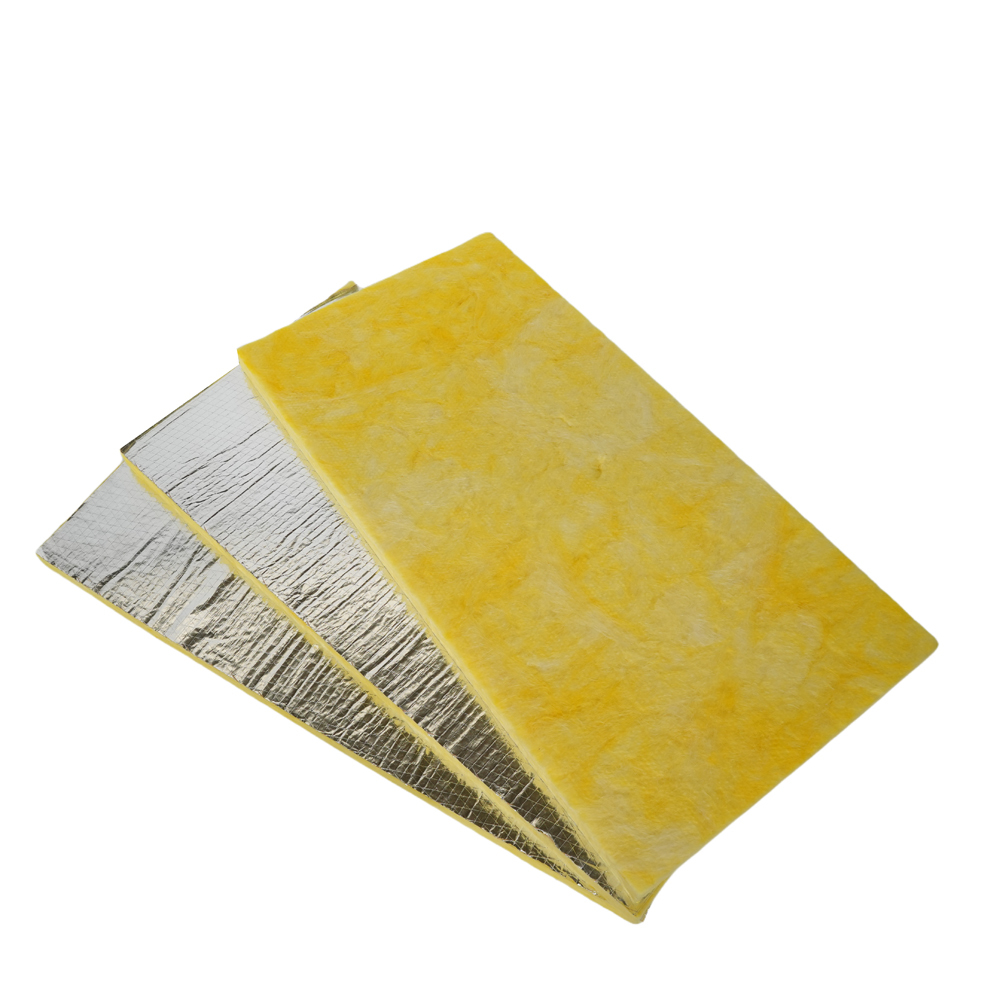

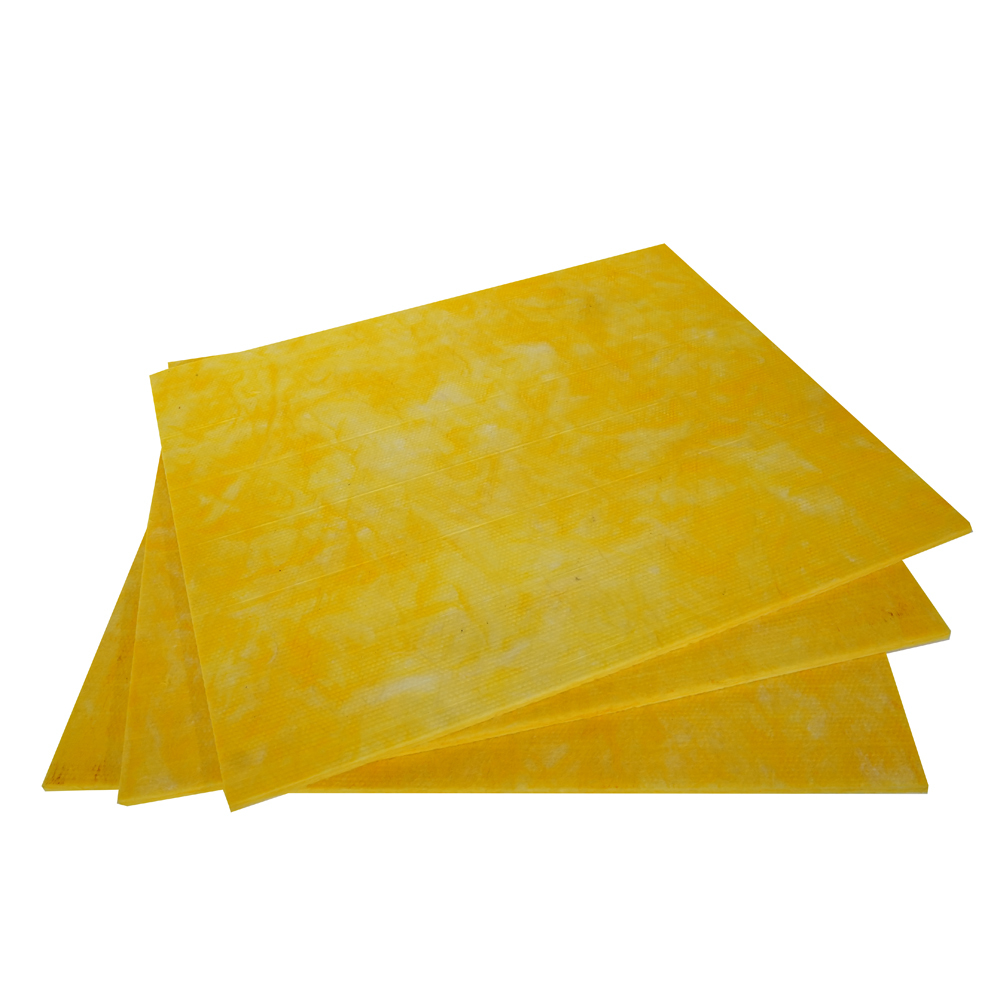

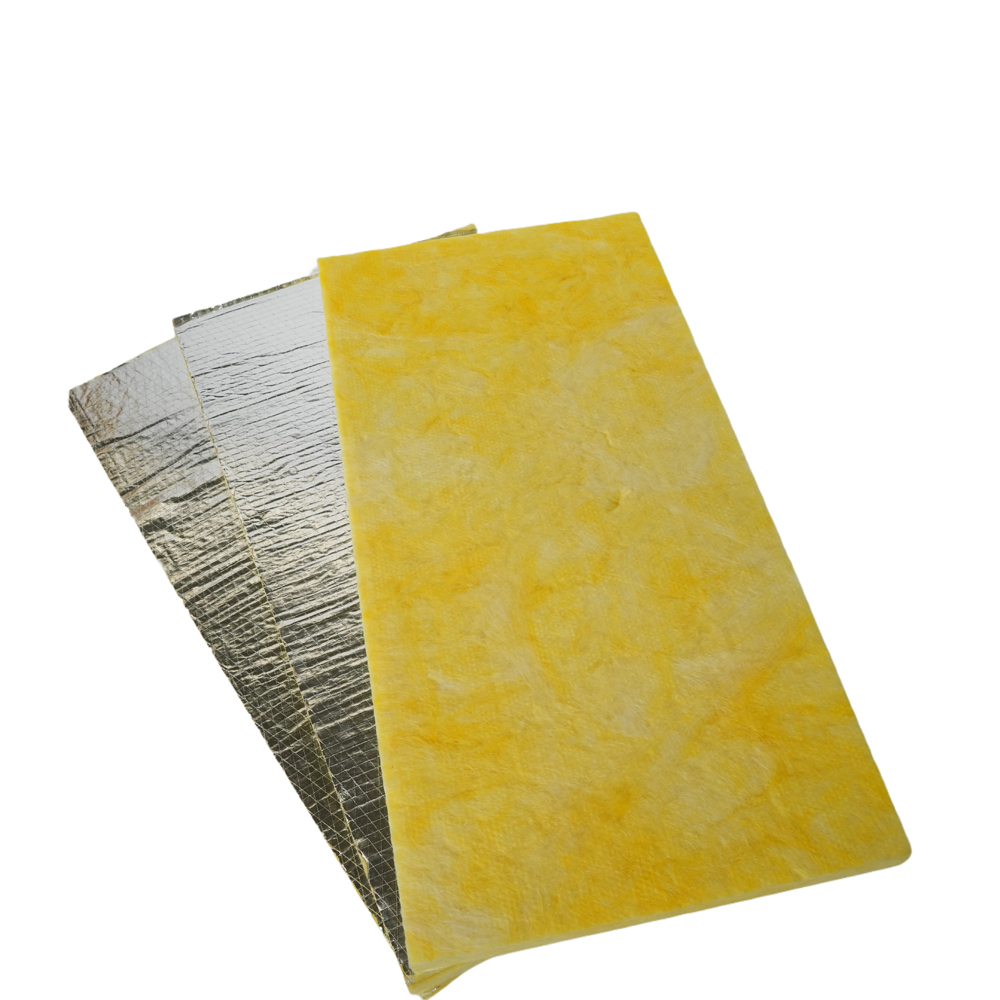

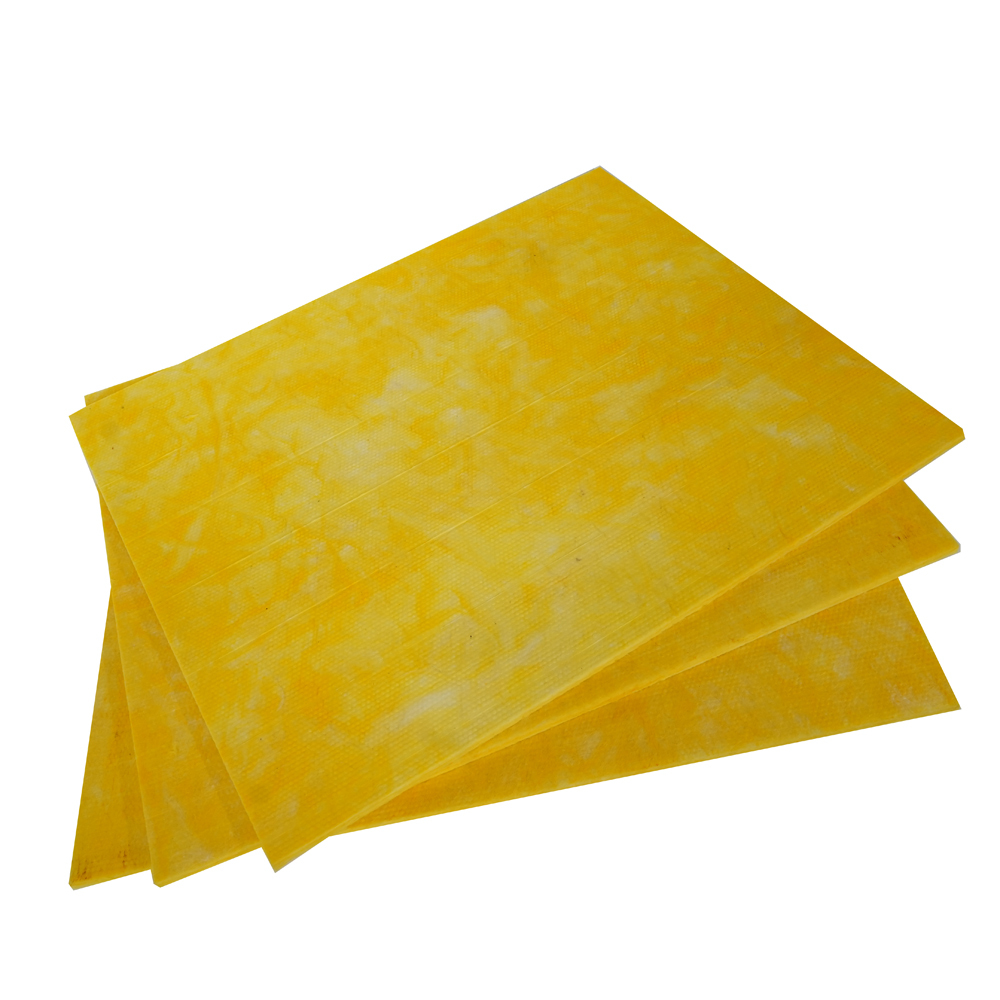

Engineered specifically for demanding HVAC applications, our FANRYN Glass Wool Duct Board is the ideal choice for fabricating and insulating air conditioning and ventilation ducts. With a higher density range (up to 96 kg/m³) and the option for laminated facings, it provides superior rigidity, acoustic lining, and thermal efficiency for commercial and industrial systems.
| Item | Unit | Index | Standard |
|---|---|---|---|
| Bulk density | kg/m3 | 24-96 | GB/T 5480.3-1985 |
| Average fiber dia. | µm | 5.5 | GB/T 5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Reshrinking temp | ℃ | ≥250 | GB/T 11835-1998 |
| Thermal conductibility | w/m.k | 0.031-0.042 | GB/T 10294-1988 |
| Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
| Moisture rate | % | ≤5 | GB/T 16401-1986 |
| Sound absorption coefficient | 1.03 product reverberation method 24kg/m32000HZ | GBJ 47-83 | |
| Slag inclusion content | % | ≤0.3 |
| Density(kg/m3) | Thickness(m) | Length (m) | Width (m) | Pcs/packing |
|---|---|---|---|---|
| 24-96 | 0.025-0.1 | 0.6-1.25 | 0.6 | 5-18 |
| 24-96 | 0.025-0.1 | 0.6-2.4 | 1.1-1.25 | 5-18 |
Duct Board Specific: Designed for fabricating rectangular and oval ductwork, offering both thermal insulation and noise reduction from the inside out.
High-Density Performance: Provides structural integrity and resistance to airflow erosion within ducts, ensuring long-term performance.
Factory-Laminated Facings: Available with Foil-Scrim-Kraft (FSK) for a built-in vapor barrier, reducing on-site labor time and costs.
Non-Combustible Safety: Grade A fire rating ensures compliance with building safety codes for mechanical systems.
Easy Fabrication: Can be easily scored and cut to create precise duct sections and fittings.
HVAC Air Handling Unit Insulation
Fabrication of Double-Wall Ducts
Acoustic Lining for Sheet Metal Ducts
Plenums and Mechanical Room Insulation
The normal packing is plastic bag
OEM is acceptable
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
