| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| 材料: | ミネラルウール | 密度: | 10-200 kg/m3 |
|---|---|---|---|
| 応用: | 断熱材の構築 | 音の吸収: | 高い |
| 水分吸収: | 1％未満 | 温度範囲: | -200°Cから650°C |
| 耐薬品性: | 良い | 設置方法: | ルースフィルまたはバット |
| 耐久性: | 長持ちする | 認証: | ASTM、EN、ISO |
| 断熱タイプ: | サーマル | 環境への影響: | 環境に優しい |
| 耐火性: | クラスA1 | 熱伝導率: | 0.035-0.045 w/mk |
| ハイライト: | PSK Facing HVAC insulation,HVAC duct insulation material,Pipe insulation facing material |
||

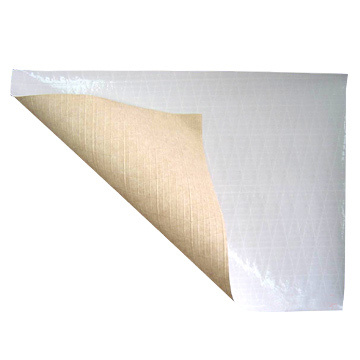

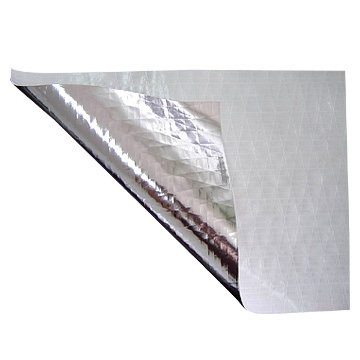

Product Introduction Of The PSK Facing
Enhance the efficiency of HVAC systems with PSK Facing. Designed to wrap air conditioning ducts and heating pipelines, it provides an effective radiant and vapor barrier. Its lightweight yet robust construction ensures easy installation and reliable performance.
TYPICAL PHYSICAL PROPERTIES
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| WPSK 453A | 95 | 180 | 120 | 50 | 5.75 | ----- | -20~ +66 | ----- |
| WPSK-4525A | 95 | 175 | 90 | 30 | 5.75 | ----- | -20~ +66 | Class 1 |
Kraft paper standard weight is 25gsm, 50gsm and 60gsm.

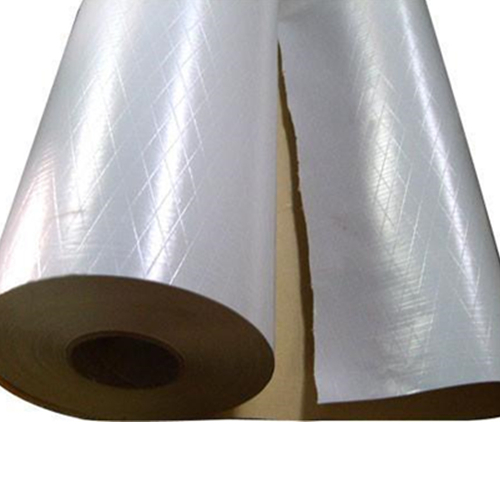

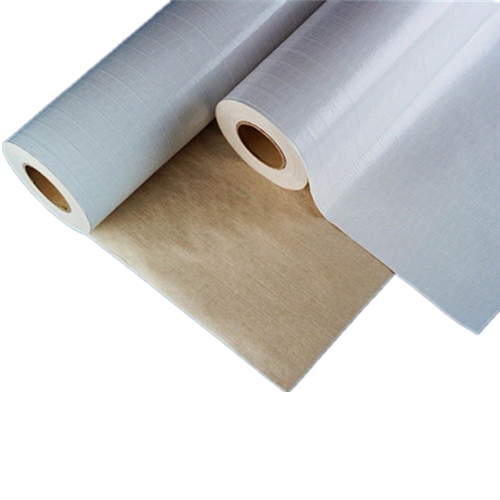

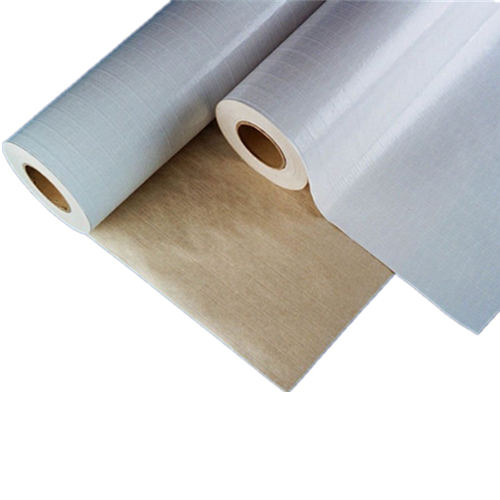

Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm

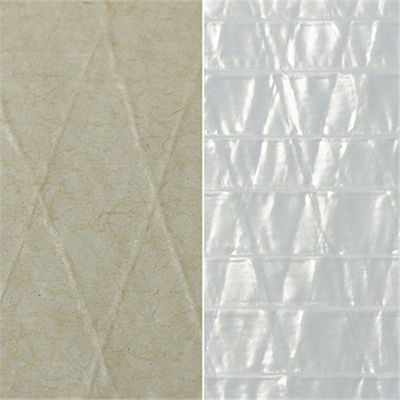

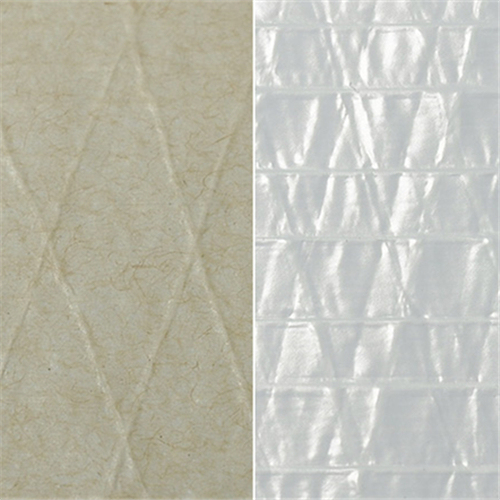

PSK facing is made up by 38micron white polypropylene coated with one layer scrim and one layer kraft paper, used as metal building insulation jacket and excellent water barrier applied for cinema, residential building, warehouse, factory.
Key Features:
Applications:
It is an ideal facing material to be laminated with glass wool, rock wool, mineral wool.
Production Details Of The PSK Facing
Packing
