| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 起源: | イタリア | 石造りのタイプ: | 大理石 |
|---|---|---|---|
| 厚さ: | 1.5cm | パターン: | 静脈切断 |
| 応用: | 壁/床 | メンテナンス: | 定期的なシーリングとクリーニング |
| 材料タイプ: | 天然石 | シーリングが必要です: | はい |
| サイズ: | 12 "x 24"（30.5 cm x 61 cm） | インストールタイプ: | 薄型モルター |
| 色: | 白 | 使用法: | インテリア/エクステリア |
| エッジタイプ: | 真っ直ぐ | 仕上げる: | 磨きました |
| ハイライト: | aluminum foil bubble insulation,moisture barrier insulation,humid environment insulation |
||

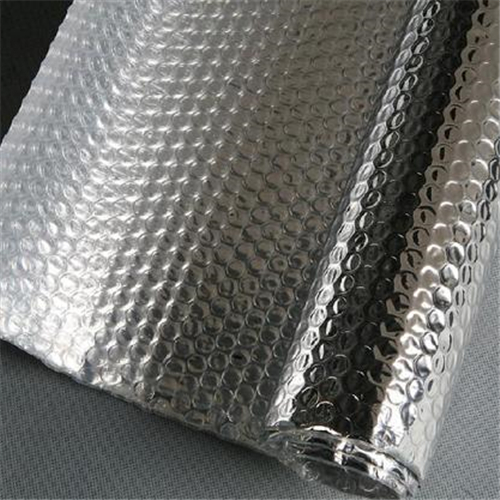

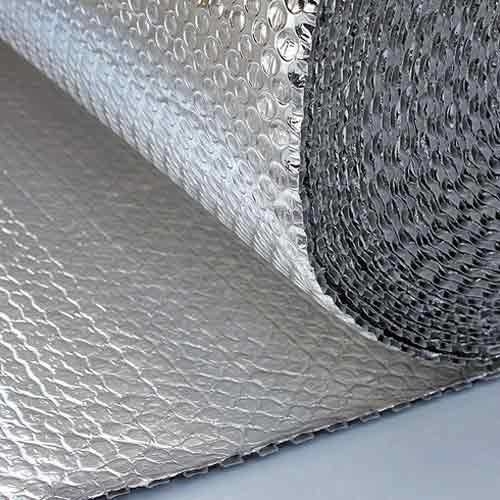

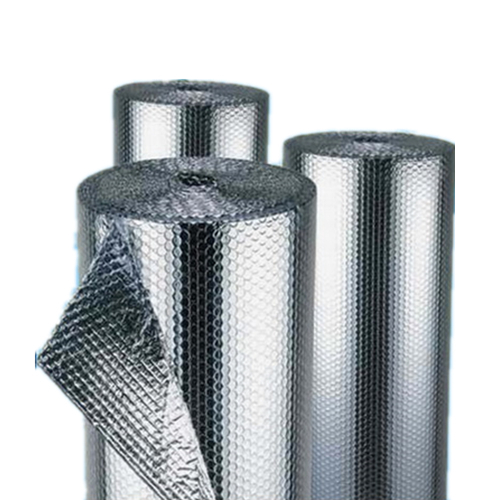

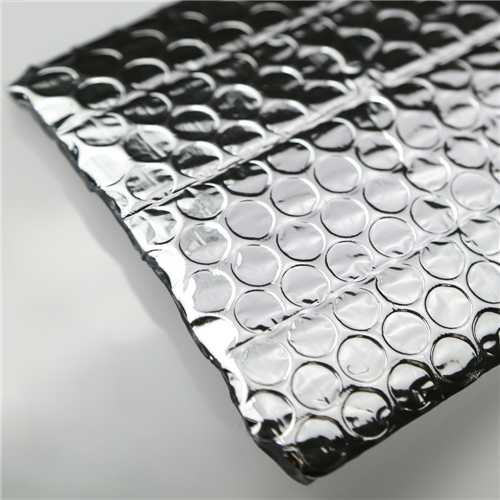

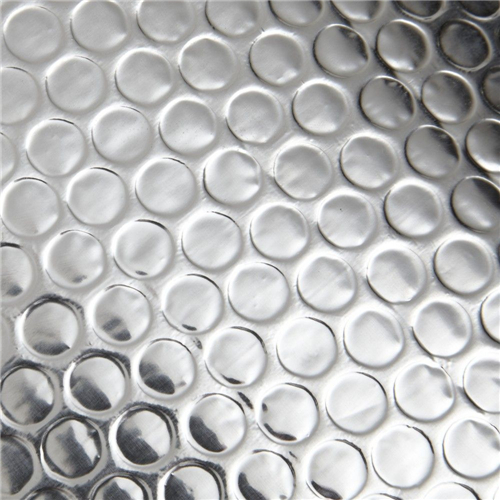

Product Introduction Of The ALUMINUM BUBBLE FOIL
Combat moisture effectively! Our aluminum bubble foil acts as an exceptional vapor barrier, preventing water penetration with a remarkably low 0.012 G/m²KPA transmission rate. Perfect for swimming pool enclosures, marine applications, and high-humidity regions, this insulation prevents mold growth while providing outstanding thermal performance. The non-toxic, odor-free material ensures healthy indoor air quality.
Product Characterics Of The ALUMINUM BUBBLE FOIL
Superior moisture resistance
Prevents mold and mildew
Non-toxic and odorless
Wide temperature tolerance
Easy to clean and maintain
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum / Bubble / Aluminum
|
ITEM |
UNIT |
VALUE |
|
Aluminum thick |
micron |
7 |
|
Bubble size (Diameter*Height) |
mm |
10*4 |
|
Bubble weight |
kg/m² |
0.26 |
|
Emissivity |
COEF |
0.03 ~ 0.04 |
|
Reflectivity |
% |
95~97 |
|
Water vapor transmission |
G/m²KPA |
0.012 |
|
Service temperature range |
℃ |
-40 ~ + 80 |
|
Tensile Strength (MD / TD) |
Mpa |
34 / 26 |
|
Linear Shrinkage |
----- |
None |
|
Corrosion |
----- |
None |
|
Pliability |
----- |
No cracking |
|
Mold and mildew |
----- |
No growth |
|
Fire rating |
----- |
Class A / Class 1 |
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum / Double- layer bubble / Aluminum
|
Aluminum + Bubble Bubble + Aluminum |
|
|
ITEM |
VALUE |
|
Aluminum thick |
7 micron |
|
Bubble size |
10mm * 7mm ( Diameter * Height) |
|
Bubble weight |
0.3kg/m² |
|
Emissivity |
0.03 ~ 0.04 COEF |
|
Reflectivity |
95~97 % |
|
Water vapor transmission |
0.012 G/m²KPA |
|
Service temperature range |
-40 ~ + 80 ℃ |
|
Tensile Strength (MD / TD) |
34 / 26 |
|
Linear Shrinkage |
None |
|
Corrosion |
None |
|
Pliability |
No cracking |
|
Mold and mildew |
No growth |
|
Fire rating |
Class A / Class 1 |
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Introduction Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum foil / Woven Cloth / Bubble / Woven Cloth / Aluminum
This material is added PE woven cloth between the aluminum foil and bubble foil, it can hence the tensile strength and tear resistance, can be stable-working in roofing and wall system.
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum foil / Woven Cloth / Bubble / Woven Cloth / Aluminum
|
Aluminum foil / Woven Cloth / Bubble / Woven Cloth / Aluminum |
|
|
ITEM |
VALUE |
|
Aluminum thick |
7 micron |
|
Bubble size |
10mm * 7mm ( Diameter * Height) |
|
Bubble weight |
0.3 kg/m² |
|
Emissivity |
0.03 ~ 0.04 COEF |
|
Reflectivity |
95~97 % |
|
Water vapor transmission |
0.012 G/m²KPA |
|
Service temperature range |
-40 ~ + 80 ℃ |
|
Tensile Strength (MD / TD) |
34 / 26 Mpa |
|
Linear Shrinkage |
None |
|
Corrosion |
None |
|
Pliability |
No cracking |
|
Mold and mildew |
No growth |
|
Fire rating |
Class A / Class 1 |
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Feature And Application Of The ALUMINUM BUBBLE FOIL
Production Details Of The ALUMINUM BUBBLE FOIL
