| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 吸収: | ≤0.2％ | 水分耐性: | 良い |
|---|---|---|---|
| 音の吸収: | 0.9-1.0 NRC | 熱伝導率: | 0.035 w/mk |
| 寸法安定性: | ≤1％ | 圧縮強度: | 40 kPa以上 |
| 抗張力: | 7 kPa以上 | 曲げ強度: | ≥14kPa |
| 耐薬品性: | 良い | 材料: | ミネラルウール |
| 密度: | 40〜200kg/m3 | 耐火性: | クラスA1 |
| サービス温度: | -50℃への650℃ | 熱安定性: | ≥1000°C |
| ハイライト: | Kraft-based vapor barrier FSK,FSK facing wall insulation,Floor insulation vapor barrier |
||

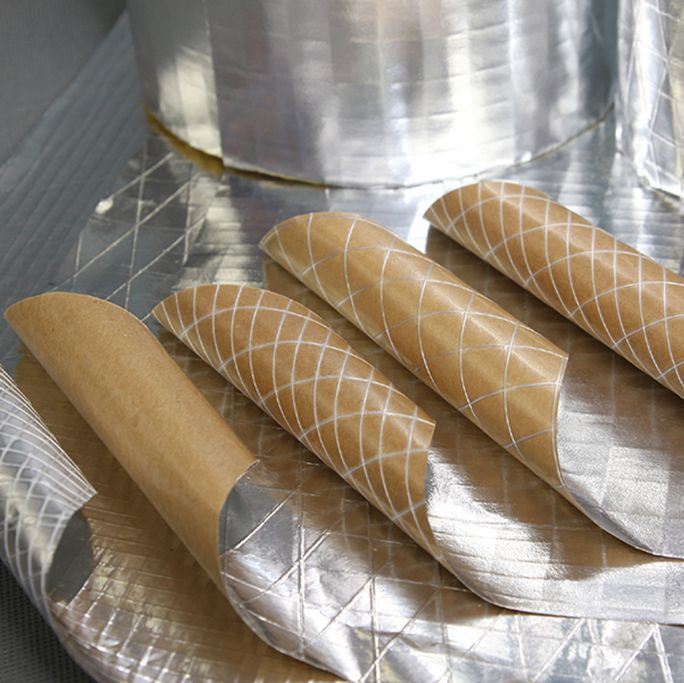

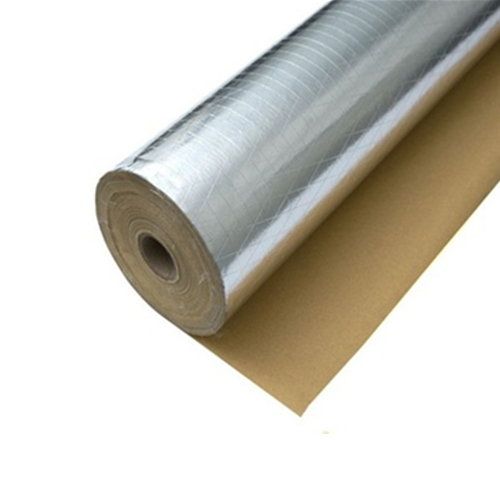

This FSK Facing variant is designed for use in walls and floors as a vapor barrier and insulation facing. Made with reinforced kraft paper and fiberglass scrim, it provides superior tensile strength and burst resistance. It is commonly used in combination with mineral wool or fiberglass batts to enhance insulation performance and prevent moisture buildup.
| Product | Construction |
|---|---|
| FS - 750 | Foil: 7 micron / Polyethylene / 50 gsm Kraft paper |
| FS - 760 | Foil: 7 micron / Polyethylene / 60 gsm Kraft paper |
| FSK-7160A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper |
| FSK- R7160A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| FSK-7160B | Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
| FSK-R7160B | Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| FSK - 7180A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper |
| FSK - 7180B | Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper |
| FSK -73B | Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
| FSK -R73B | Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| FS - 750 | 80 | 95 | 50 | 20 | 5.75 | 95% | -29~ +66 | ----- |
| FS - 760 | 85 | 105 | 50 | 20 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - 7160A | 96 | 125 | 50 | 30 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - R7160A | 98 | 130 | 50 | 30 | 5.75 | 95% | -29~ +66 | Class 1 |
| FSK - 7160B | 98 | 132 | 65 | 30 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - R7160B | 100 | 136 | 65 | 30 | 5.75 | 95% | -29~ +66 | Class 1 |
| FSK - 7180A | 115 | 150 | 75 | 40 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - 7180B | 95 | 150 | 80 | 40 | 5.75 | 95% | -29~ +66 | ----- |
