| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 反射率: | 97％ | 適用する: | HVACダクト断熱 |
|---|---|---|---|
| 耐火性: | クラスA/クラス1 | 抗張力: | ≥40n/25mm |
| 水蒸気の伝送速度: | ≤0.02g/m²•24時間 | 使用法: | ガラスウール、ロックウール、ミネラルウールなどの断熱材の向くの材料として使用される |
| 排出量: | 0.03 | 皮の強度: | ≥6N/25mm |
| 特徴: | 水分と蒸気バリア、熱断熱、耐火性 | 材料: | フォイルスリムクラフト |
| 長さ: | 60m | 幅: | 1.2m |
| 温度抵抗: | -30℃への120℃ | 厚さ: | 0.02-0.1mm |
| 製品タイプ: | 絶縁材の直面 | ||
| ハイライト: | FSK facing fire-retardant insulation,FSK jacketing for commercial buildings,fire-resistant FSK insulation facing |
||
Product Introduction Of the FSK FACING
Ideal for commercial and industrial applications, fire-retardant FSK Facing (such as FSK-R7160A and FSK-R7160B) provides an extra layer of safety. It is used as a protective jacket over insulation materials like glass wool and rock wool. The material meets Class 1 fire rating standards and offers excellent tensile strength, moisture resistance, and thermal reflection.

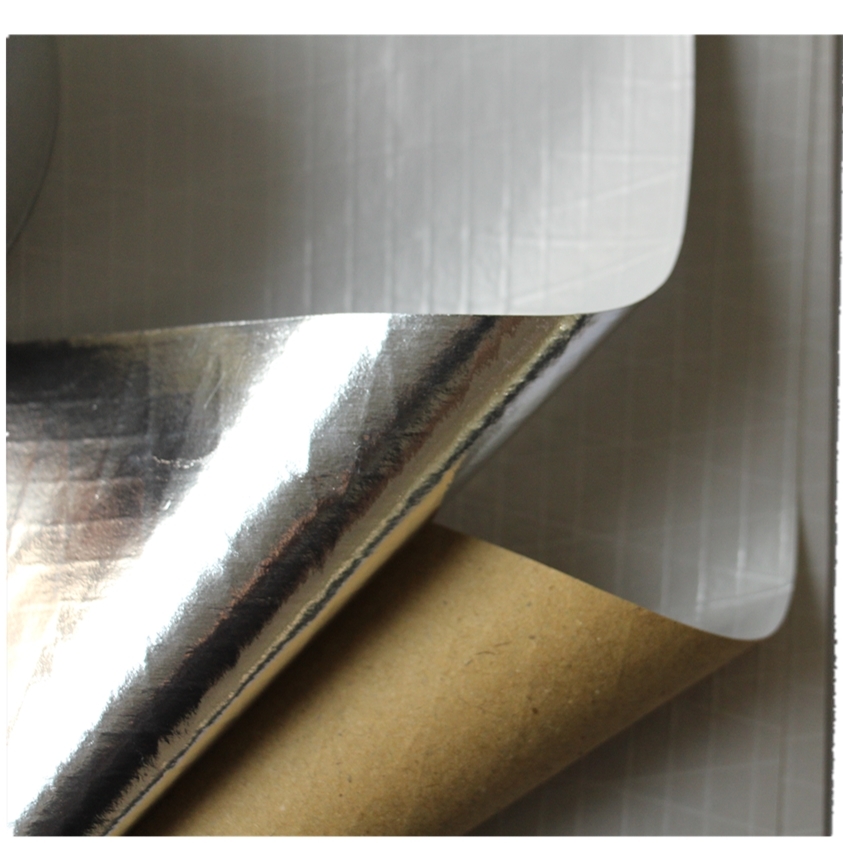

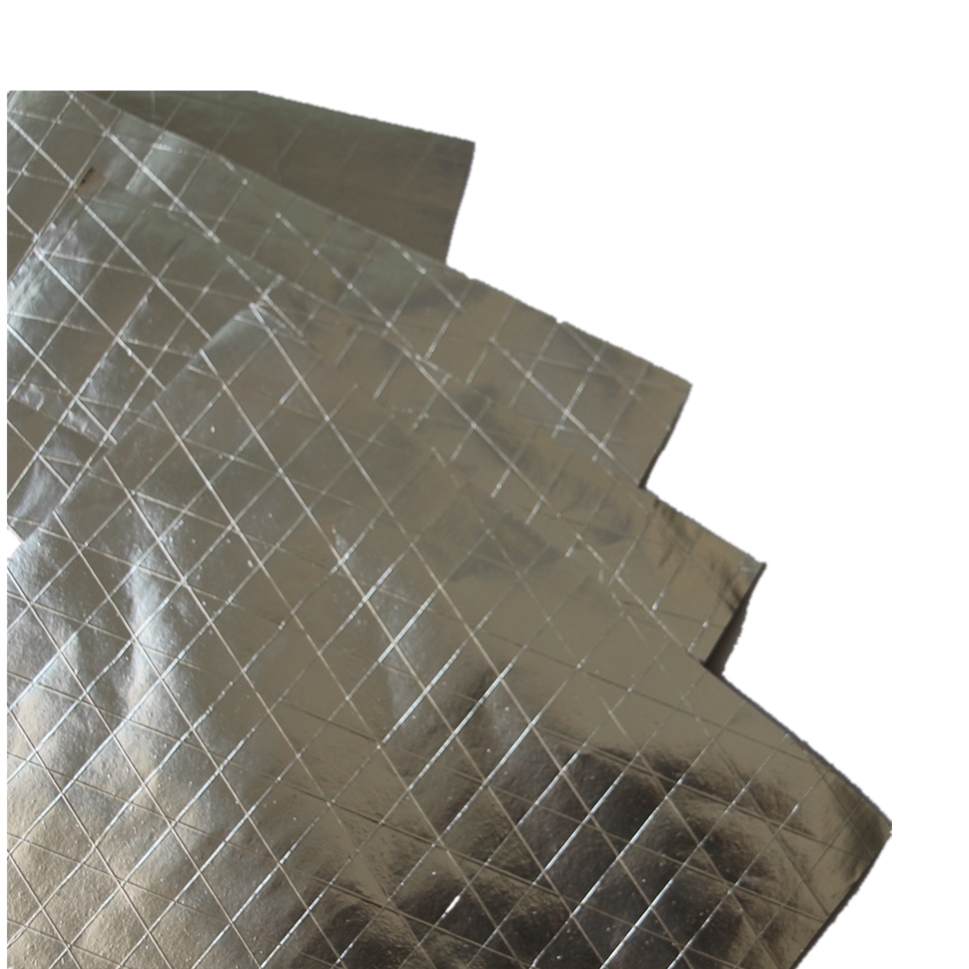

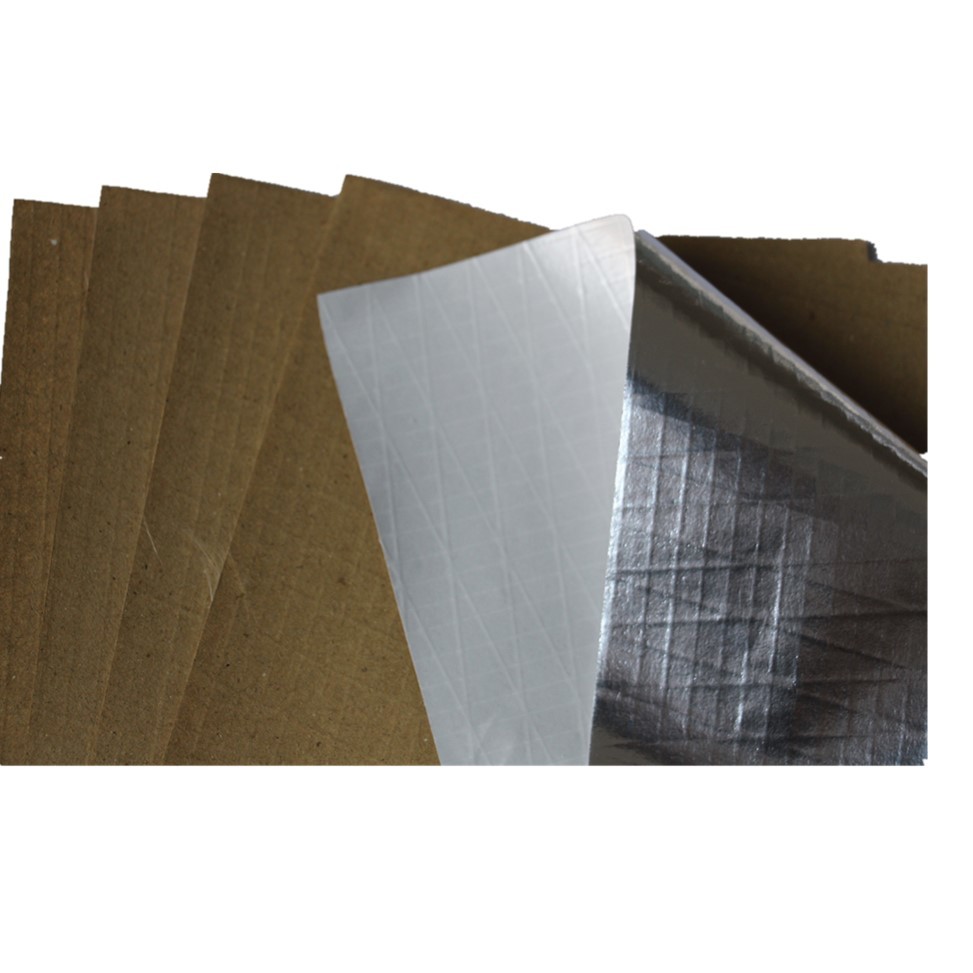

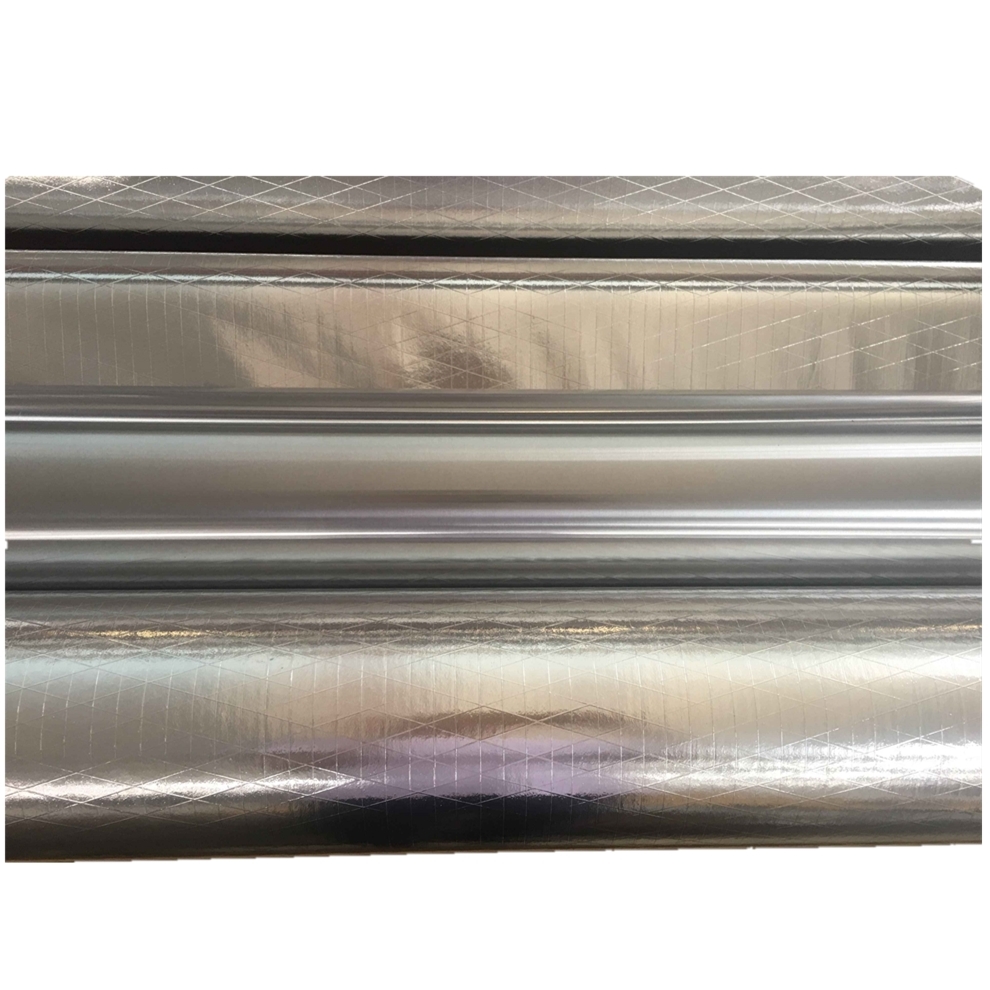

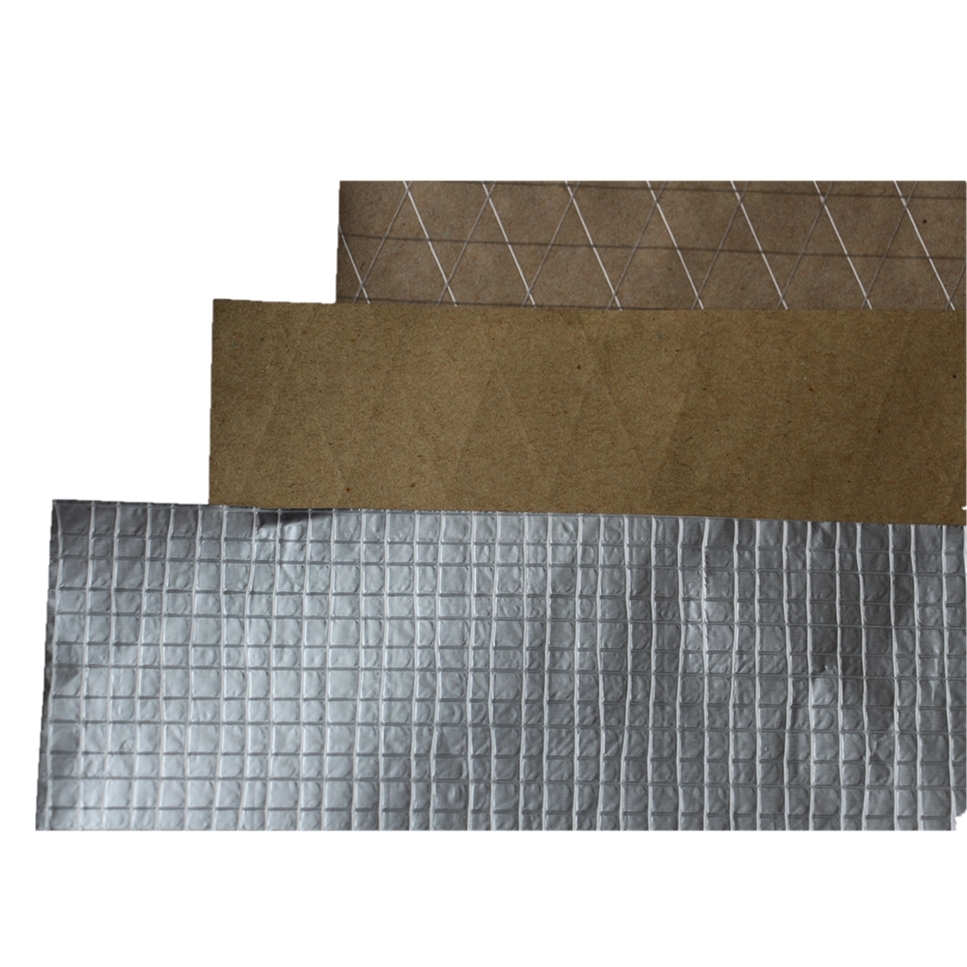

Product Details Of The FSK FACING
Product Parameter Of The FSK FACING
|
Product |
Construction |
|
FS - 750 |
Foil: 7 micron / Polyethylene / 50 gsm Kraft paper |
|
FS - 760 |
Foil: 7 micron / Polyethylene / 60 gsm Kraft paper |
|
FSK-7160A |
Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper |
|
FSK- R7160A |
Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper |
|
FSK-7160B |
Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
|
FSK-R7160B |
Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
|
FSK - 7180A |
Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper |
|
FSK - 7180B |
Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper |
|
FSK -73B |
Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
|
FSK -R73B |
Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
TYPICAL PHYSICAL PROPERTIES
|
Product |
Basic weight (g/m²) |
Tensile MD (n/25mm) |
Tensile XD (n/25mm) |
Bursting Strength(n) |
WVTR (ng/N.s) |
Reflectivity of Foil Surface |
Temperature Resistance (℃) |
Fire Rating |
|
FS - 750 |
80 |
95 |
50 |
20 |
5.75 |
95% |
-29~ +66 |
----- |
|
FS - 760 |
85 |
105 |
50 |
20 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - 7160A |
96 |
125 |
50 |
30 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - R7160A |
98 |
130 |
50 |
30 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FSK - 7160B |
98 |
132 |
65 |
30 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - R7160B |
100 |
136 |
65 |
30 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FSK - 7180A |
115 |
150 |
75 |
40 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - 7180B |
95 |
150 |
80 |
40 |
5.75 |
95% |
-29~ +66 |
----- |
Product Feature And Application Of The FSK FACING
Kraft paper standard weight is 50 gsm and 60 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m,2500m
Inner core: 76mm
Mainly used as vapor barriers with various insulation materials, also applied for duct wrap in HVAC system, and suitable for in-line lamination of glass wool, rock wool, mineral wool.
Packing & Shipping
FAQ
Q: What are the benefits of your FSK facing?
A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.
Q: Can I get some samples for testing before placing order?
A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.
Q: Can you make other sizes and packages for this product?
A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
