| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 耐薬品性: | 非腐食性 | インストール方法: | ロール、バット、またはボード |
|---|---|---|---|
| 密度: | 50〜200kg/m3 | 水分吸収: | 5％未満 |
| 温度範囲: | -200°Cから1000°C | 耐火性: | クラスA1 |
| 資格: | ASTM、ISO、CE | 厚さ: | 25-200 mm |
| 環境への影響: | 環境に優しい | 音の吸収: | 0.9-1.0 |
| 適用する: | 屋根、壁、または床断熱 | 材料: | ミネラルウール |
| 熱伝導率: | 0.035 w/mk | 製品タイプ: | 断熱材 |
| ハイライト: | FSK facing aluminum foil vapor barrier,HVAC duct insulation FSK facing,aluminum foil duct insulation barrier |
||

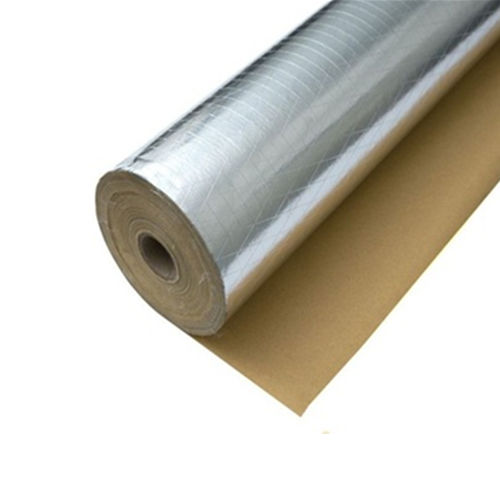

Product Introduction Of the FSK FACING

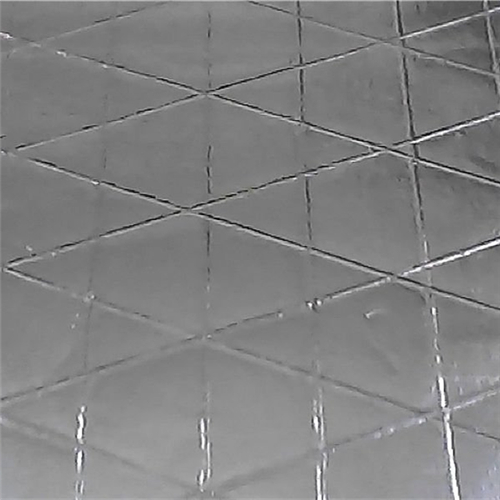

FSK Facing is a composite material made of aluminum foil, fiberglass scrim, adhesive, and kraft paper. It is widely used as a vapor barrier and insulation facing for HVAC duct systems. Its reflective surface helps improve thermal efficiency, keeping buildings cooler in summer and warmer in winter. Available in various weights and fire-resistant options, it is easy to install and compatible with most insulation types.

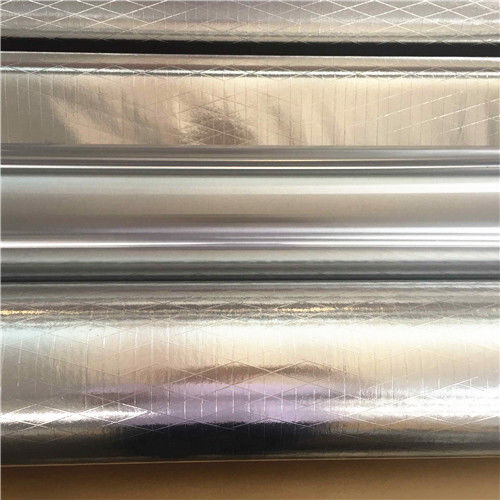

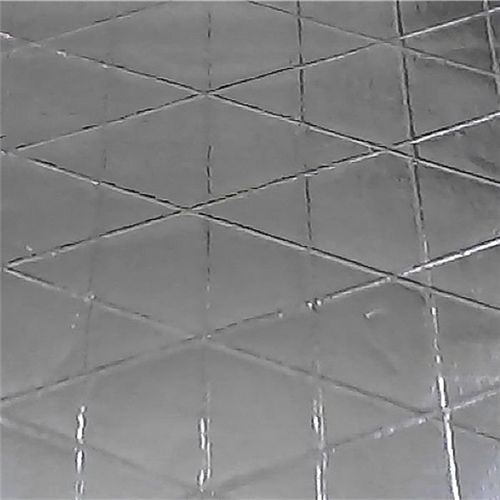

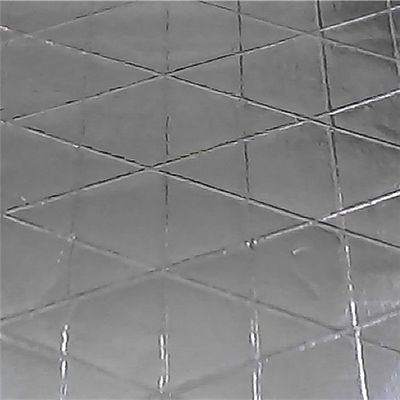

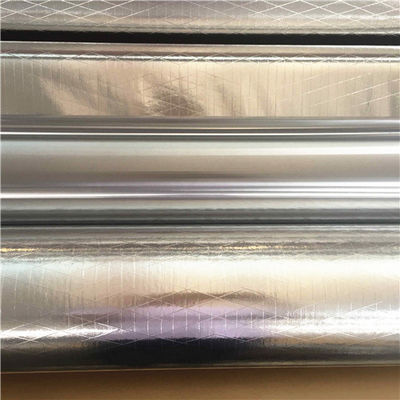

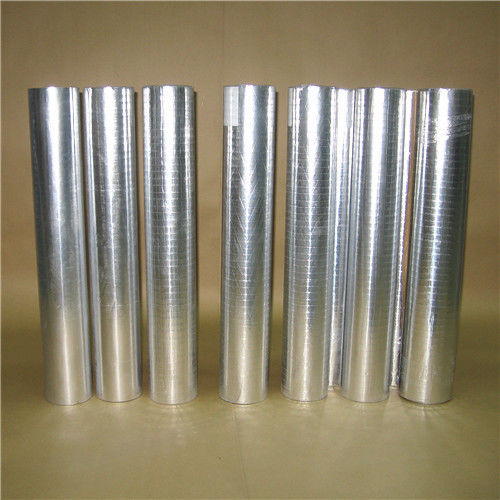

Product Details Of The FSK FACING
Product Parameter Of The FSK FACING
|
Product |
Construction |
|
FS - 750 |
Foil: 7 micron / Polyethylene / 50 gsm Kraft paper |
|
FS - 760 |
Foil: 7 micron / Polyethylene / 60 gsm Kraft paper |
|
FSK-7160A |
Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper |
|
FSK- R7160A |
Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper |
|
FSK-7160B |
Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
|
FSK-R7160B |
Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
|
FSK - 7180A |
Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper |
|
FSK - 7180B |
Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper |
|
FSK -73B |
Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
|
FSK -R73B |
Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
TYPICAL PHYSICAL PROPERTIES
|
Product |
Basic weight (g/m²) |
Tensile MD (n/25mm) |
Tensile XD (n/25mm) |
Bursting Strength(n) |
WVTR (ng/N.s) |
Reflectivity of Foil Surface |
Temperature Resistance (℃) |
Fire Rating |
|
FS - 750 |
80 |
95 |
50 |
20 |
5.75 |
95% |
-29~ +66 |
----- |
|
FS - 760 |
85 |
105 |
50 |
20 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - 7160A |
96 |
125 |
50 |
30 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - R7160A |
98 |
130 |
50 |
30 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FSK - 7160B |
98 |
132 |
65 |
30 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - R7160B |
100 |
136 |
65 |
30 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FSK - 7180A |
115 |
150 |
75 |
40 |
5.75 |
95% |
-29~ +66 |
----- |
|
FSK - 7180B |
95 |
150 |
80 |
40 |
5.75 |
95% |
-29~ +66 |
----- |
Product Feature And Application Of The FSK FACING
Kraft paper standard weight is 50 gsm and 60 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m,2500m
Inner core: 76mm
Mainly used as vapor barriers with various insulation materials, also applied for duct wrap in HVAC system, and suitable for in-line lamination of glass wool, rock wool, mineral wool.

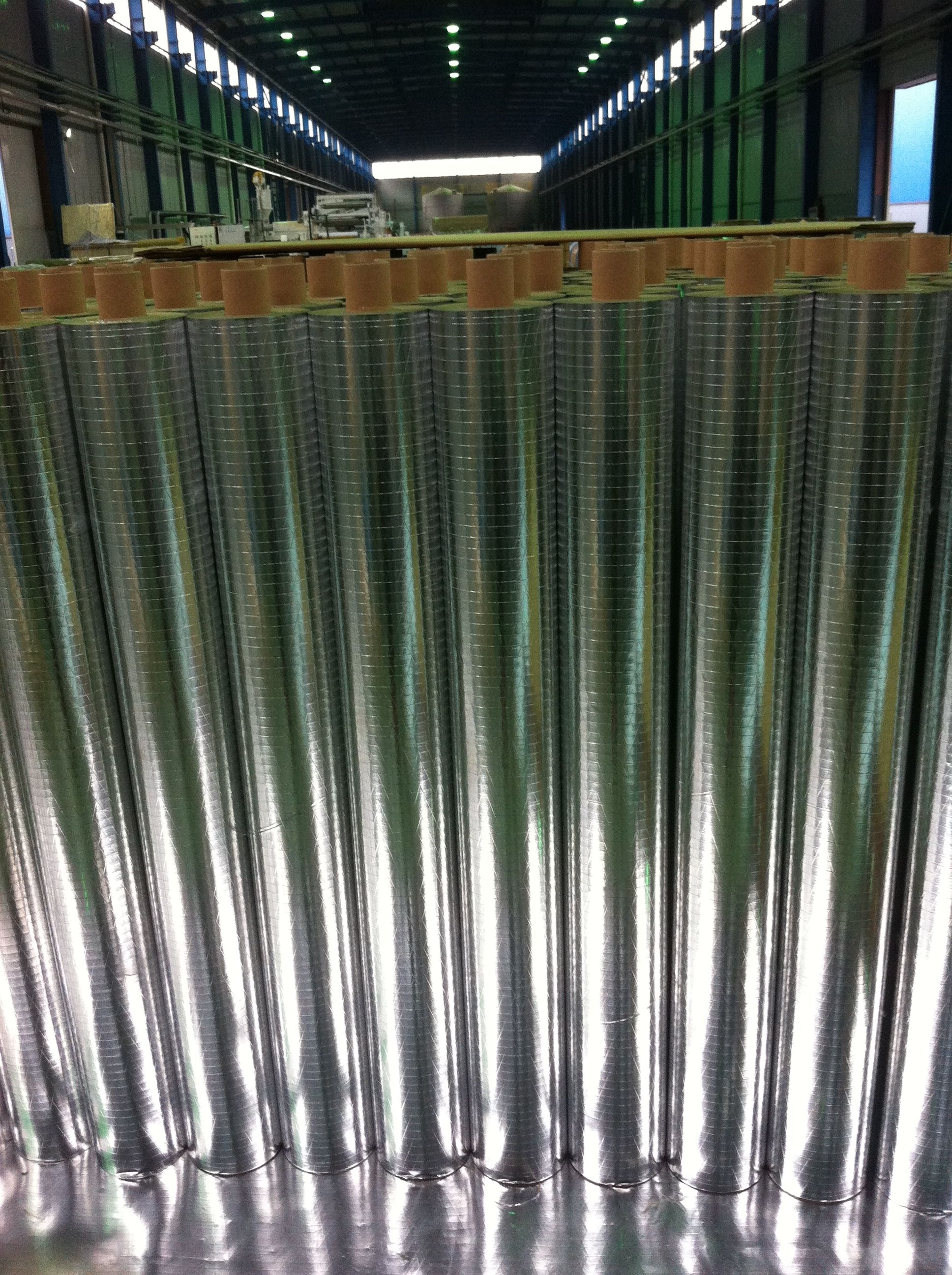

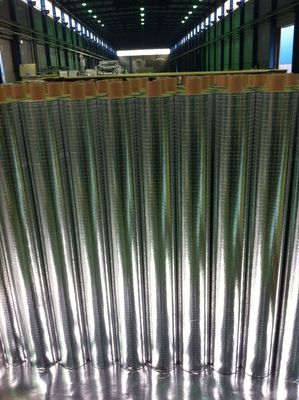

Packing & Shipping
FAQ
Q: What are the benefits of your FSK facing?
A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.
Q: Can I get some samples for testing before placing order?
A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.
Q: Can you make other sizes and packages for this product?
A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
