| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Fanryn |
| 最小注文数量: | 1つの40フィートのコンレーナー |
| パッケージの詳細: | プラスチック袋や紙箱 |
| 受渡し時間: | 10-15 営業日 |
| 材料: | ガラス繊維 | 使用: | 上限 |
|---|---|---|---|
| 色: | 白か黒か | 表面: | 面付の種類 |
| ハイライト: | Fiberglass Ceiling Tiles 15mm,PVC Facing Fiberglass Ceiling Tiles,Decorative Fiberglass Ceiling Tiles |
||

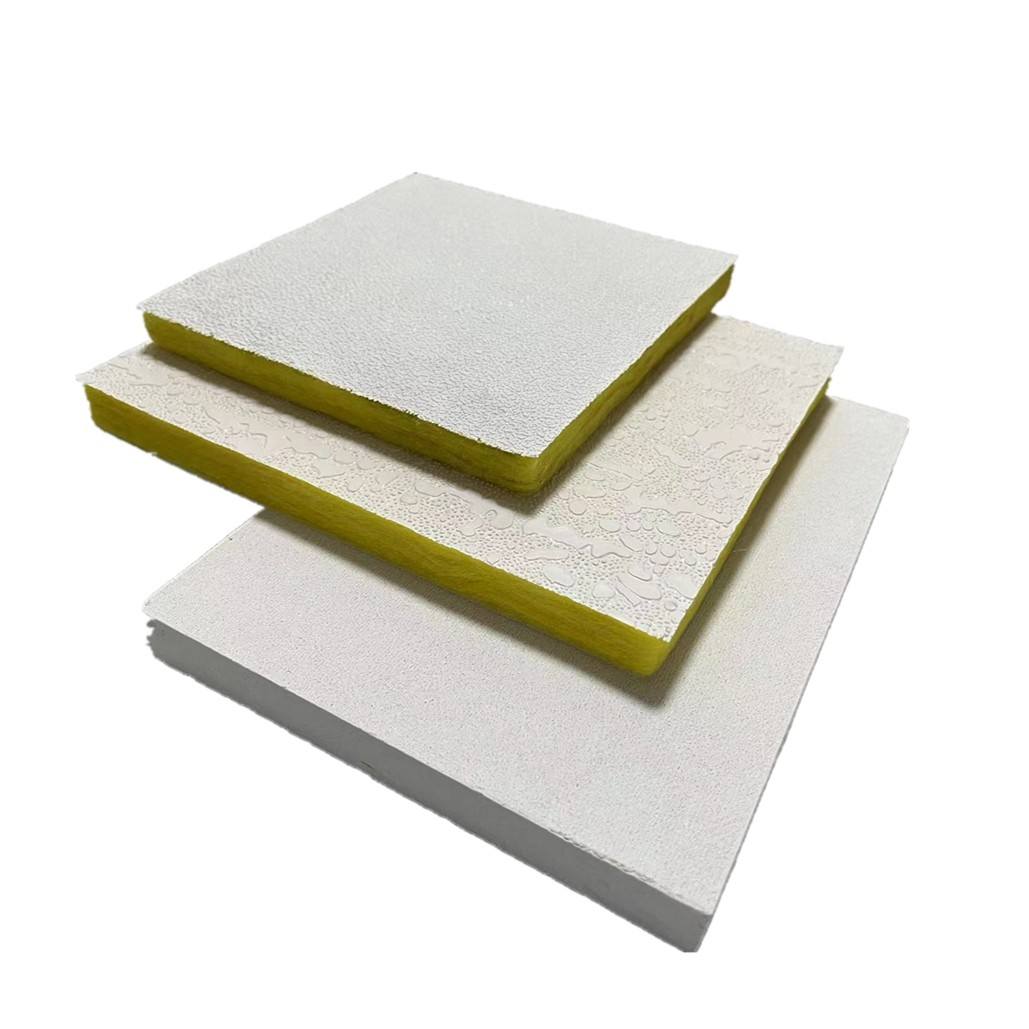

Glass wool ceiling tiles with PVC facing
FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative
fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles
will be parallel to grids system after installation.
Technical Data:
| Material | Fiberglass wool board |
| Density | 90-130kg/m3 |
| Face | Painting laminated with decorative fiberglass tissue or PVC facing |
| Color | White, black and others to order |
| Fire-resistant | Class A |
| Thermal-resistant | ≥0.5 (m2·k/w) |
| NRC | 0.9-1.0 |
| Humidity | Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating |
| Moisture rate | ≤1%(JC/T670-2005) |
| Environmental impact | Tiles and packing are fully recyclable |
| safety |
Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3 |
Installation:
◆use exposed grids, grids width:15mm or 24mm
◆tiles are easy to trim and install
◆both inches and centimeters grids are available
Applications:
It is recommended that the panels be installed to the opposite two walls to control the echo of the surroundings,
the panelsare widely used in hotels,meeting rooms,auditoriums,music rooms,libraries,etc,where have special request for soundabsorption
Product Types:
Square Tegular Insert
Main Advantages:
◆non-combustible ◆no sagging, wrapping or delaminating
◆green building material ◆excellent sound absorption
Facing on glass wool board:
Packing information:
| SIZE | CARTON/40HQ | PIECES/CARTON | M2/40HQ |
| 600*600*15MM | 532 | 20 | 3830.4 |
| 600*1200*15MM | 266 | 20 | 3830.4 |
| 600*600*20MM | 532 | 15 | 2872.8 |
| 600*1200*20MM | 266 | 15 | 2872.8 |
| 600*600*25MM | 532 | 12 | 2298.24 |
| 600*1200*25MM | 266 | 12 | 2298.24 |
