| 起源の場所: | 中国 |
|---|---|
| ブランド名: | fanryn |
| 証明: | BS476, EN13501 12018, CE |
| モデル番号: | ガラス繊維の天井パネル |
| 最小注文数量: | 1*40hq |
| 価格: | 0.5-3$ per square meter |
| パッケージの詳細: | カートンかポリ袋 |
| 受渡し時間: | 10～15日 |
| 支払条件: | T/T |
| 供給の能力: | 10～15日以内に1*40HQを生産できます |
| 音吸収係数: | 0.8-0.9 | 密度: | 70-130kg/m3 |
|---|---|---|---|
| 材料: | グラスウール | 環境への影響: | リサイクル可能で環境に優しい |
| 厚さ: | 15mm,20mm,25mm | 応用: | 建築物、産業機器の断熱材 |
| 設置方法: | ◆露出グリッドを使用、グリッド幅:15mm または 24mm ◆タイルはトリムと取り付けが簡単 ◆インチとセンチメートルの両方のグリッドが利用可能 | 耐火性: | 不燃性A種 |
| 熱伝導率: | >=0.4(m2.k/w) | 吸水性: | <1% |
| ハイライト: | fireproof fiberglass ceiling tile,eco-friendly acoustic insulation panels,square fiberglass ceiling tiles |
||
Products Description

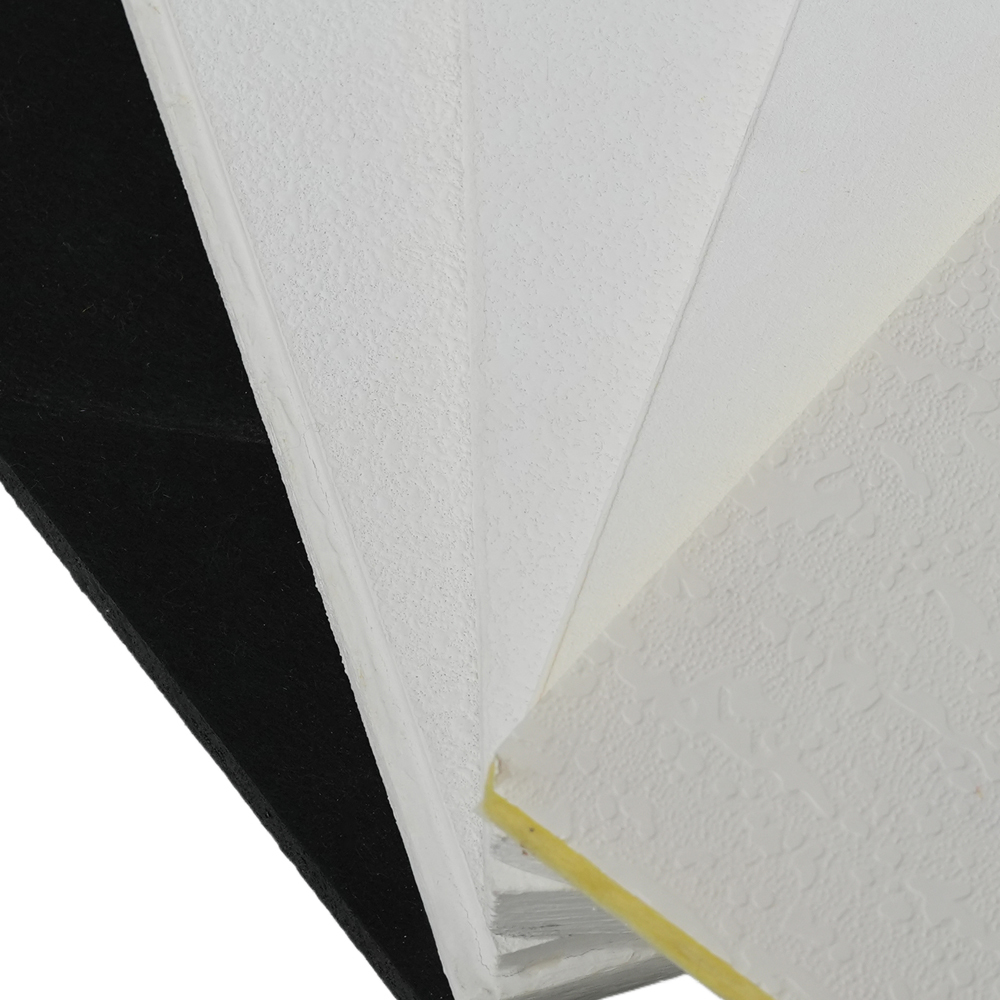

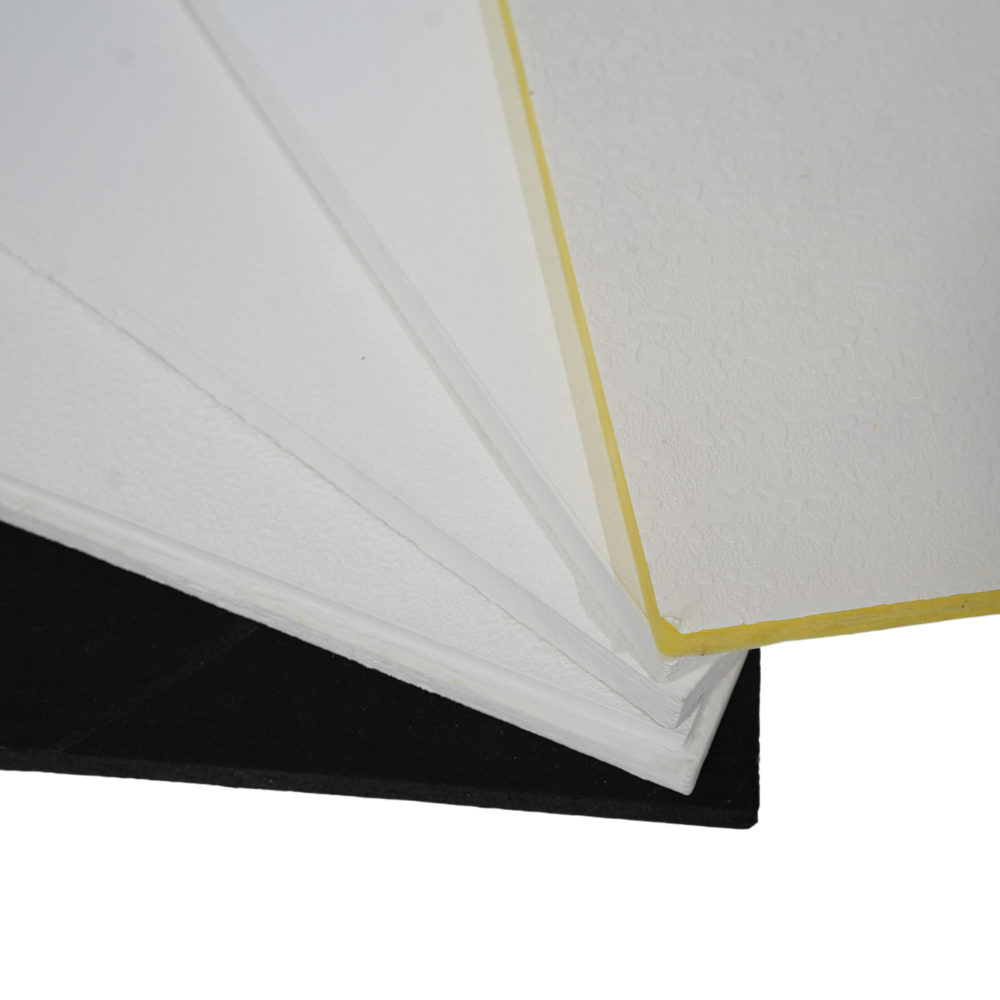

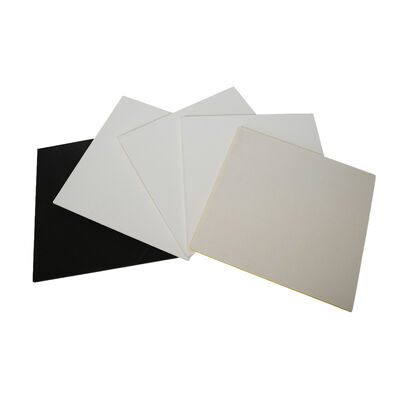

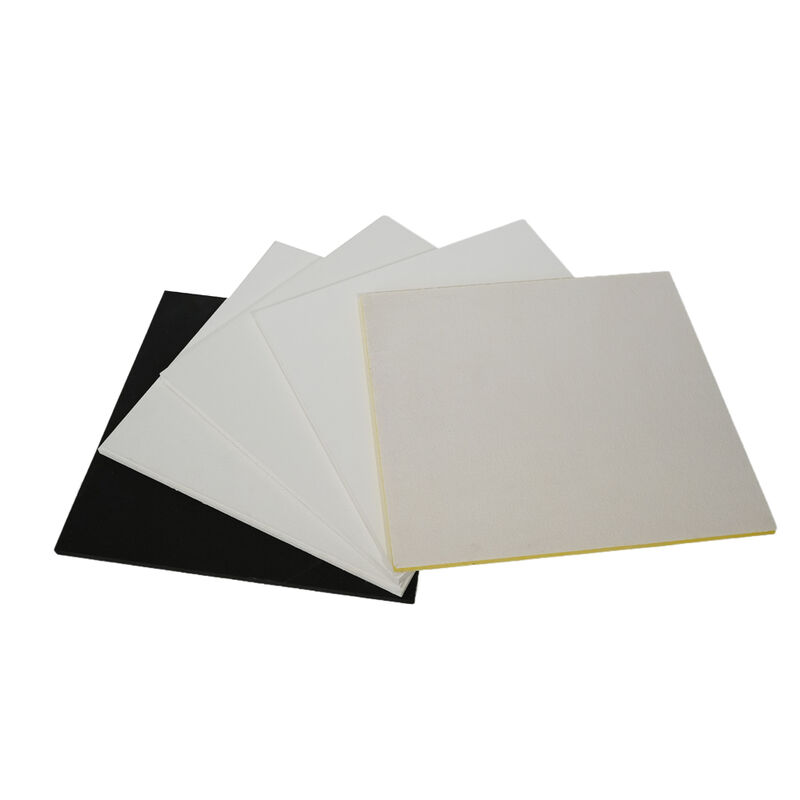

FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles will be parallel to grids system after installation.
Product feature of the fiberglass ceiling panel
-Non-Combustible Safety: Certified as an inherently fire-resistant material, it provides reliable protection and ensures full compliance with the most stringent building safety standards and fire codes.
-Exceptional Dimensional Stability: Engineered to resist sagging, warping, or delamination over time, it maintains long-term structural integrity and a consistently flat, seamless installed appearance for the life of the installation.
-Superior Acoustic Performance: Delivers excellent sound absorption, significantly enhancing acoustic comfort and effective noise control in a wide range of interior environments, from offices to residential spaces.
-Eco-Conscious Building Material: Classified as a premier green building product, it supports sustainable construction practices and contributes directly to environmental certification goals such as LEED and BREEAM.
-Versatile Aesthetic Finishes: Available laminated with decorative fiberglass tissue or PVC facing, offering both durability and design flexibility to meet diverse architectural and interior design requirements.
Product Specifications
|
Material |
|
|
Density |
90-130kg/m3 |
|
Face |
Painting laminated with decorative fiberglass tissue or PVC facing |
|
Color |
White, black and others to order |
|
Fire-resistant |
Class A |
|
Thermal-resistant |
≥0.5 (m2·k/w) |
|
NRC |
0.9-1.0 |
|
Humidity |
Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating |
|
Moisture rate |
≤1%(JC/T670-2005) |
|
Environmental impact |
Tiles and packing are fully recyclable |
|
safety |
Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3 |
Packing and Loading Quantity for Containers
|
SIZE |
CARTON/40HQ |
PIECES/CARTON |
M2/40HQ |
|
600*600*15MM |
532 |
20 |
3830.4 |
|
600*1200*15MM |
266 |
20 |
3830.4 |
|
600*600*20MM |
532 |
15 |
2872.8 |
|
600*1200*20MM |
266 |
15 |
2872.8 |
|
600*600*25MM |
532 |
12 |
2298.24 |
|
600*1200*25MM |
266 |
12 |
2298.24 |
Installation
-use exposed grids, grids width:15mm or 24mm
-tiles are easy to trim and install
-both inches and centimeters grids are available
Product application
classrooms, offices, shopping center, etc.
Main Facing:
Production packing of the glass wool board
Carton or plastic bag
Note: OEM is acceptable
