| Place of Origin: | Beijing, China |
|---|---|
| ブランド名: | Fanryn |
| 証明: | CE |
| Model Number: | glass wool blanket |
| Minimum Order Quantity: | 300.0 Square Meters |
| Packaging Details: | PLASTIC BAG AND WOVEN BAG |
| Supply Ability: | 10 Forty-Foot Container per Day |
| 保証: | 1 年 | 販売後サービス: | オンライン技術サポート |
|---|---|---|---|
| プロジェクトソリューション能力: | グラフィックデザイン | 適用する: | アパート |
| デザインスタイル: | 現代 | 起源の場所: | 北京,中国 |
| ブランド名: | Fanryn | モデル番号: | ガラスの羊毛の毛布 |
| タイプ: | 岩綿プロダクト | 材料: | 木材,ガラスの羊毛 |
| 色: | 黄色 | 厚さ: | 25mm-200mm |
| 幅: | 0.6 -1.2m | 長さ: | 8~30m |
| 密度: | 10-48kg/m3 | パッケージ: | プラスチック袋と真空織物袋 |
| 構造: | 裸のガラスの羊毛または表紙付き | 証明書: | CE |
| 水吸収量: | 0.2% | ||
| ハイライト: | Modern fiberglass wool blanket,Fireproof fiberglass wool blanket,Soundproof fiberglass wool blanket |
||

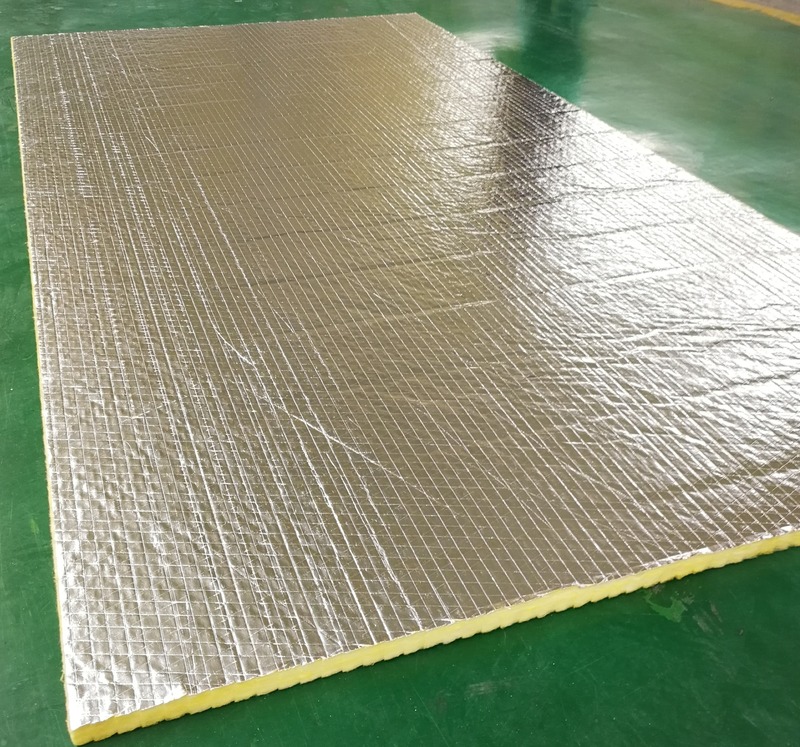

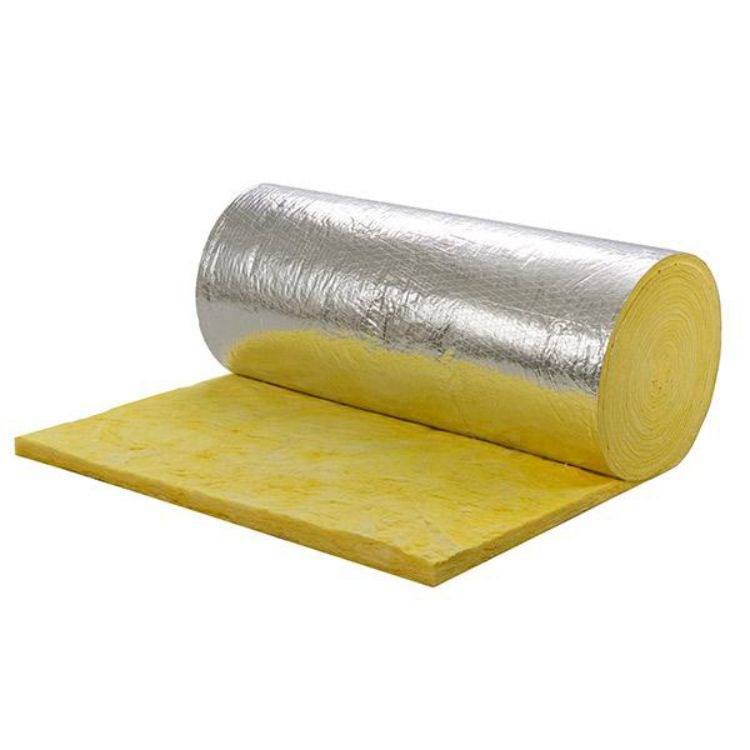

New hot heating glass wool blanket sound attenuation sliver foil faced glass wool insulation
|
Technical Data |
|||
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-48 |
GB/T 5480.3 |
|
Average fiber dia |
μm |
5-8 |
GB/T 5480.4 |
|
Water content |
% |
≤ 1 |
GB/T 16400-2003 |
|
Grade of combustibility |
|
Non-combustible GradeA |
GB 8624-1997 |
|
Reshrinking temp |
℃ |
250-400 |
GB/T 11835-2007 |
|
Thermal conductibility |
w/m·k |
0.034-0.06 |
GB/T 10294 |
|
Hydrophobicity |
% |
≥ 98 |
GB/T 10299 |
|
Moisture rate |
% |
≤ 5 |
GB/T 5480.7 |
Main application:
1. Heat preservation of wall
2. Heat preservation of steel structure
3. Indoor partition wall
4. Train compartment
5. Sound absorption and acoustical isolation
Standards: According to GB STANDARDS,EN13162,EN13172,ISO9001:2000
Advantage:
1. Steady thickness recovery, our glass wool blanket can be rebounded to its original thickness within 24 hours after opening the vacuum packing
2. Steady thickness and color uniformity;
3. Good dimensional stability,
4. Soft and long glass fiber, it can maximally lessen flying catkin in the construction
Specification:
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Rolls/packing |
|
|
10-48 |
0.025-0.2 |
5-30 |
0.6 |
2 rolls |
|
|
10-48 |
0.025-0.2 |
5-30 |
1.1 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.15 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.2 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.25 |
1 roll |
2 rolls overlapping |
Product introduction of the Glass Wool Blanket
FANRYN centrifugal glass wool blanket are made for large laying area. Beside the character of thermal insulation, it also has the performances of shock absorption and acoustical isolation, especially for middle or low frequency sound, which can cancel the noise and improve working environment. This material can be freely cut in construction according the shape required,mainly used in room,noise- cancleling system,transportation,refrigerators and household electric appliances for noise canceling.
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
