| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 関数: | 食糧を熱い保存する | 生産能力: | 3kg/590mmの腕 |
|---|---|---|---|
| 支払い期間: | T/T、Western Union、PayPal | 製品の重量: | 0.65 kg |
| パッキング: | 箱 | 出荷期間: | DHL /FEDEX /UPS /TNT |
| モデル: | 他の | 電源: | 他の |
| ツール速度: | 2m/s | 身長: | 31cmから50cm |
| 仕様: | USP28/BP2003 | 力: | 300 |
| 飲料用品の種類: | 魔法瓶及びThermoses | 材料: | 他の |
| 表示サイズ: | 他の | ||
| ハイライト: | moisture-resistant rubber insulation pipe,industrial piping insulation rubber,durable cold hot medium pipe |
||

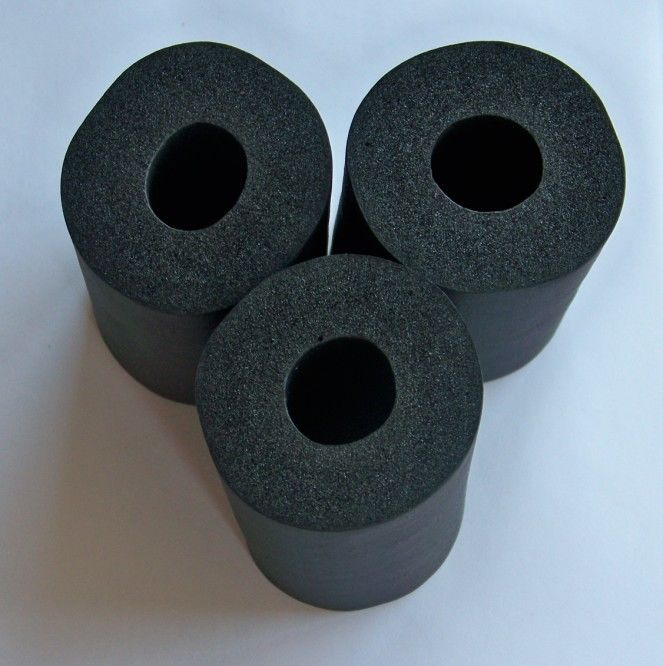

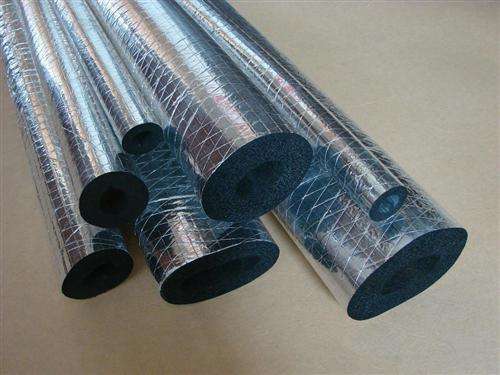

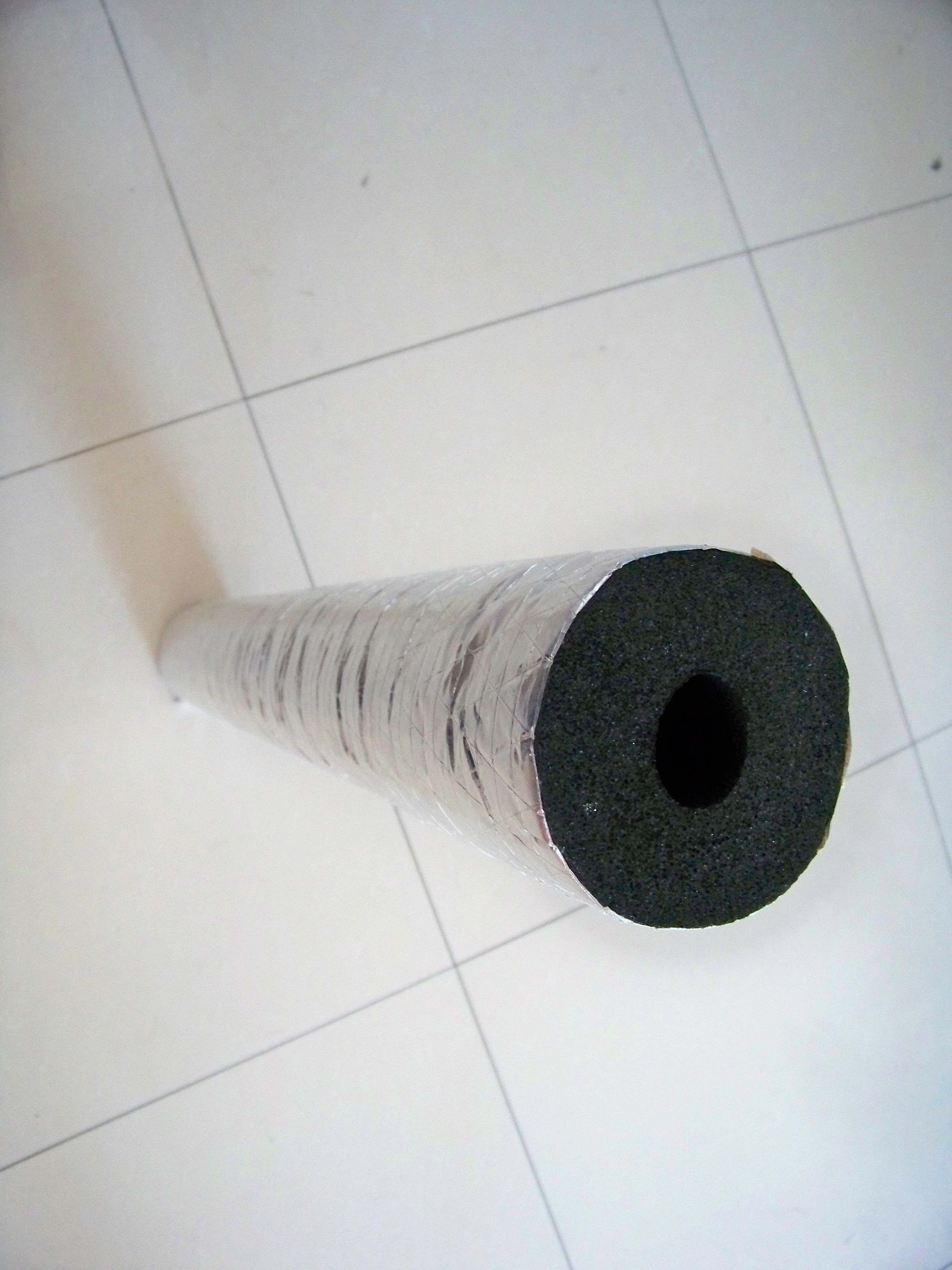

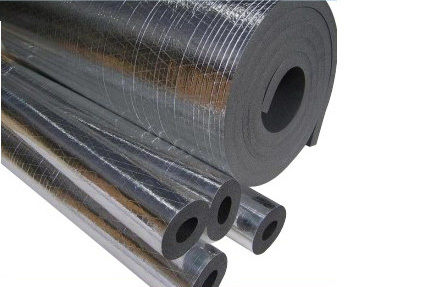

Ideal for industrial applications, this rubber insulation pipe offers superior protection against moisture, ozone, and aging. Its closed-cell structure prevents water ingress, while its high compression resilience ensures durability under mechanical stress. Suitable for a wide range of cold and hot medium pipelines, it is commonly used in chemical plants, food processing facilities, and refrigeration systems. Available in multiple sizes and thicknesses, it can be customized to meet specific project requirements.
| Item | Unit | Specification | Standard | |
|---|---|---|---|---|
| Density | Kg/m3 | 40~90 | GB/T 6343 | |
| Temperature | ℃ | -50~110 | GB/T 17794 | |
| Flammability | —— | B | GB/T 8624-2006 | |
| B1 | ||||
| Oxy gen index | % | ≥40 | GB/T 2406 | |
| SDR | ≤65 | GB 8627-1999 | ||
| Conductivity factor Average temperature -20℃ 0℃ 40℃ |
W/(m·k) | ≤0.031 ≤0.034 ≤0.036 |
GB/T 10294 | |
| Water vapor permeability | Factor | —— | ≥1.0*104 | GB/T 17146-1997 |
| coefficient | g/(m.s.pa) | ≤1.96*10-11 | ||
| Water absorption ratio in vacuum | % | ≤10 | GB/T 17794-2008 | |
| Dimension stability 105±3℃,7d |
% | ≤10 | GB/T 8811 | |
| Crack resistance | N/cm | ≥2.5 | GB/T 10808 | |
| Compression resilience ratio | % | ≥70 | GB/T 6669 | |
| Anti-ozone | —— | Not cracking | GB/T 7762 | |
| Agin resistance | —— | Slightly crumpling,no cracks,no pin holes,not deforming | GB/T 16259 | |
| Tube inner diameter (mm) | 9mm thick (1.8m/piece) |
15mm thick (2m/piece) |
20mm thick (2m/piece) |
25mm thick (2m/piece) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Size (mm*mm) |
Piece | Piece/box | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | |
| 6 | 6*9 | 180 | 180 | ||||||
| 10 | 10*9 | 140 | 140 | 10*15 | 80 | 10*20 | 70 | ||
| 13 | 13*9 | 120 | 100 | 13*15 | 80 | 13*20 | 50 | ||
| 16 | 16*9 | 100 | 95 | 16*15 | 60 | 16*20 | 50 | ||
| 19 | 19*9 | 100 | 80 | 19*15 | 60 | 19*20 | 40 | ||
| 22 | 22*9 | 100 | 70 | 22*15 | 60 | 22*20 | 40 | 22*25 | 30 |
| 25 | 25*9 | 80 | 55 | 25*15 | 60 | 25*20 | 30 | 25*25 | 25 |
| 28 | 28*9 | 60 | 50 | 28*15 | 50 | 28*20 | 30 | 28*25 | 25 |
| 32 | 32*9 | 60 | 45 | ||||||
| 34 | 34*15 | 40 | 34*20 | 30 | 34*25 | 25 | |||
| 35 | 35*9 | 60 | 40 | ||||||
| 38*9 | 50 | 30 | |||||||
| 42 | 42*9 | 50 | 30 | ||||||
| 43 | 43*9 | 50 | 30 | 43*15 | 30 | 43*20 | 25 | 43*25 | 20 |
| 48 | 48*9 | 50 | 28 | 48*15 | 30 | 48*20 | 25 | 48*25 | 20 |
| 54 | 54*9 | 50 | 25 | ||||||
| 60 | 60*9 | 50 | 20 | 60*15 | 30 | 60*20 | 20 | 60*25 | 15 |
| 76 | 76*15 | 25 | 76*20 | 15 | 76*25 | 15 | |||
| 89 | 89*20 | 15 | 89*25 | 15 | |||||
| 108 | 108*20 | 15 | 108*25 | 10 | |||||
Note: OEM is acceptable
