| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 証明: | CE |
| 最小注文数量: | 1 40HQ |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 製品名: | 熱隔熱鉱物羊毛 | 透湿性: | 0.3μg/(Pa・s・m) |
|---|---|---|---|
| 寸法: | 1200mm×600mm×50～100mm | 吸音率: | 0.85 |
| アプリケーション: | 建築断熱材、産業機器、HVAC システム | 環境への影響: | リサイクル可能で環境に優しい |
| 温度 抵抗: | -180℃～650℃ | 耐火性: | 不燃性A1種 |
| 設置方法: | 機械的な固定または接着剤による接着 | 圧縮強度: | 10 kPa以上 |
| 熱伝導性: | 0.035W/m・K | 材料: | ミネラルウール |
| 水 吸収: | <1% | 密度: | 40～200kg/m3 |
| 色: | 黄色か茶色 | ||
| ハイライト: | high-temperature wire mesh insulation blanket,rock wool insulation for commercial construction,thermal insulation mineral wool blanket |
||

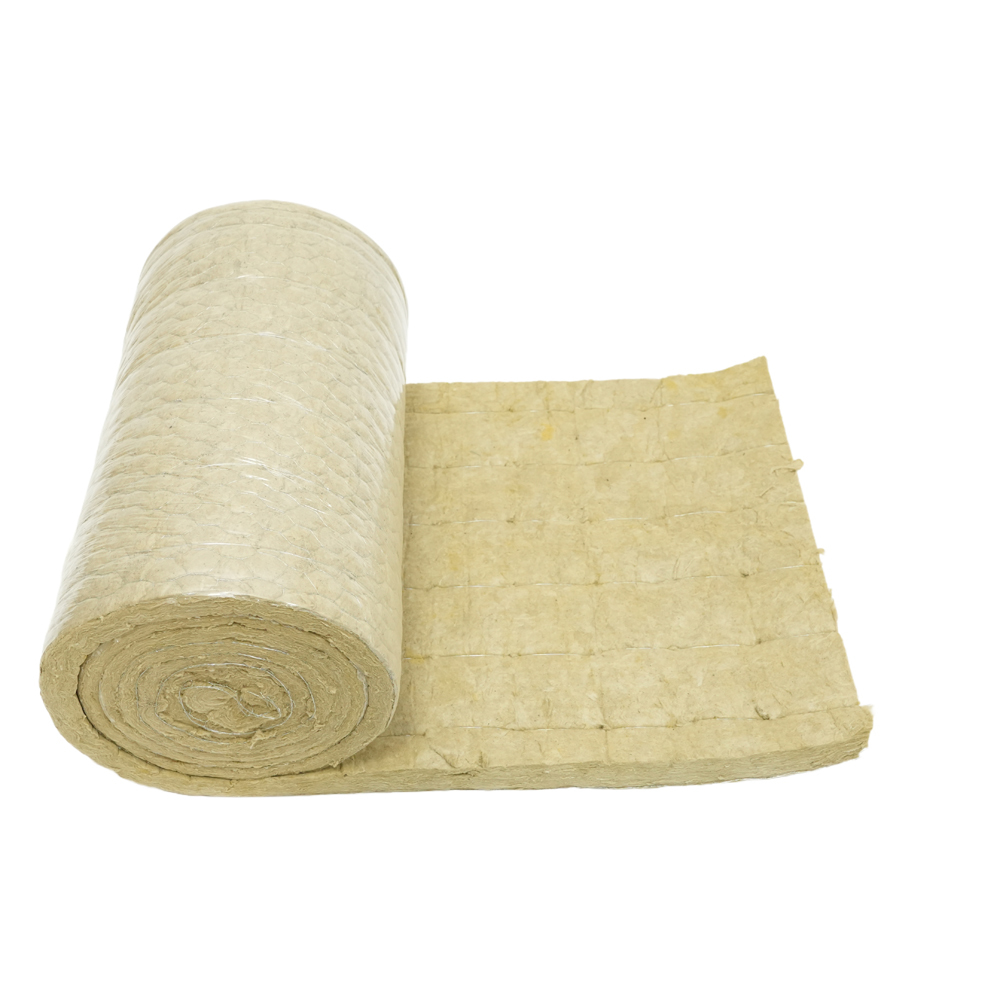

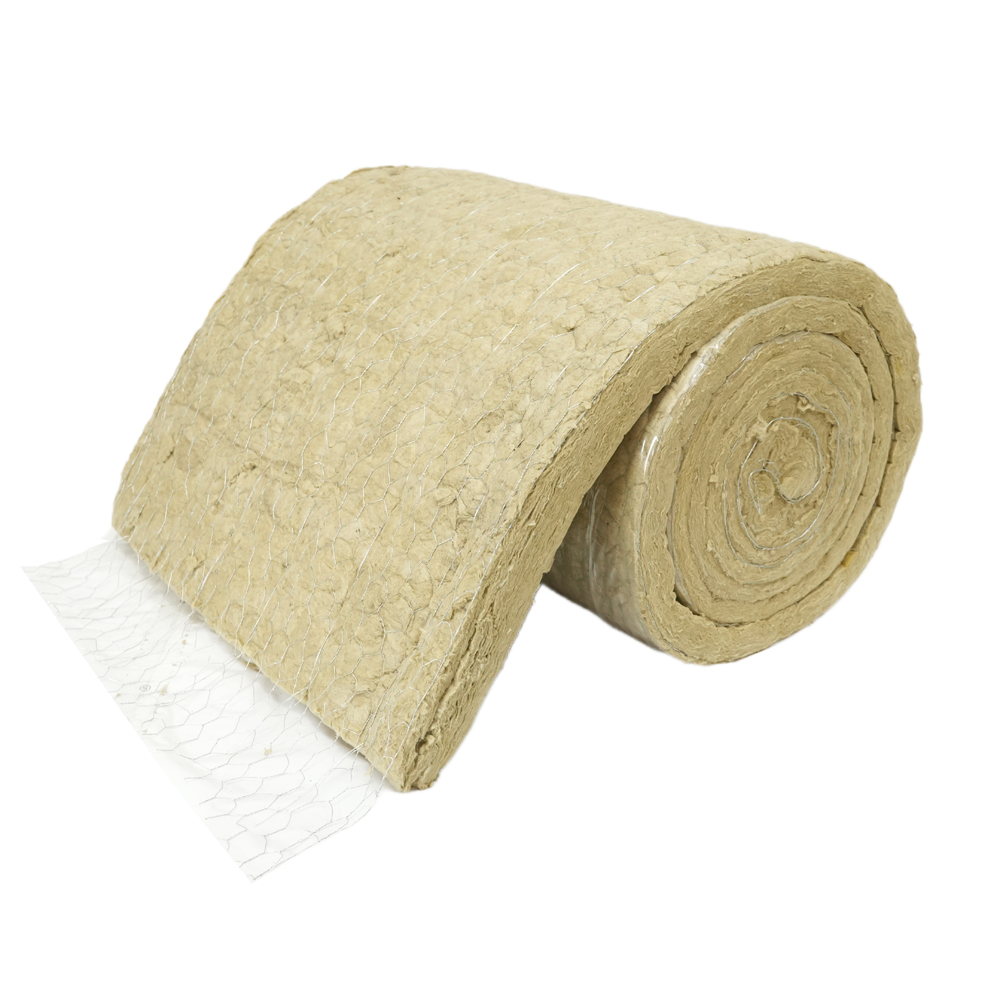

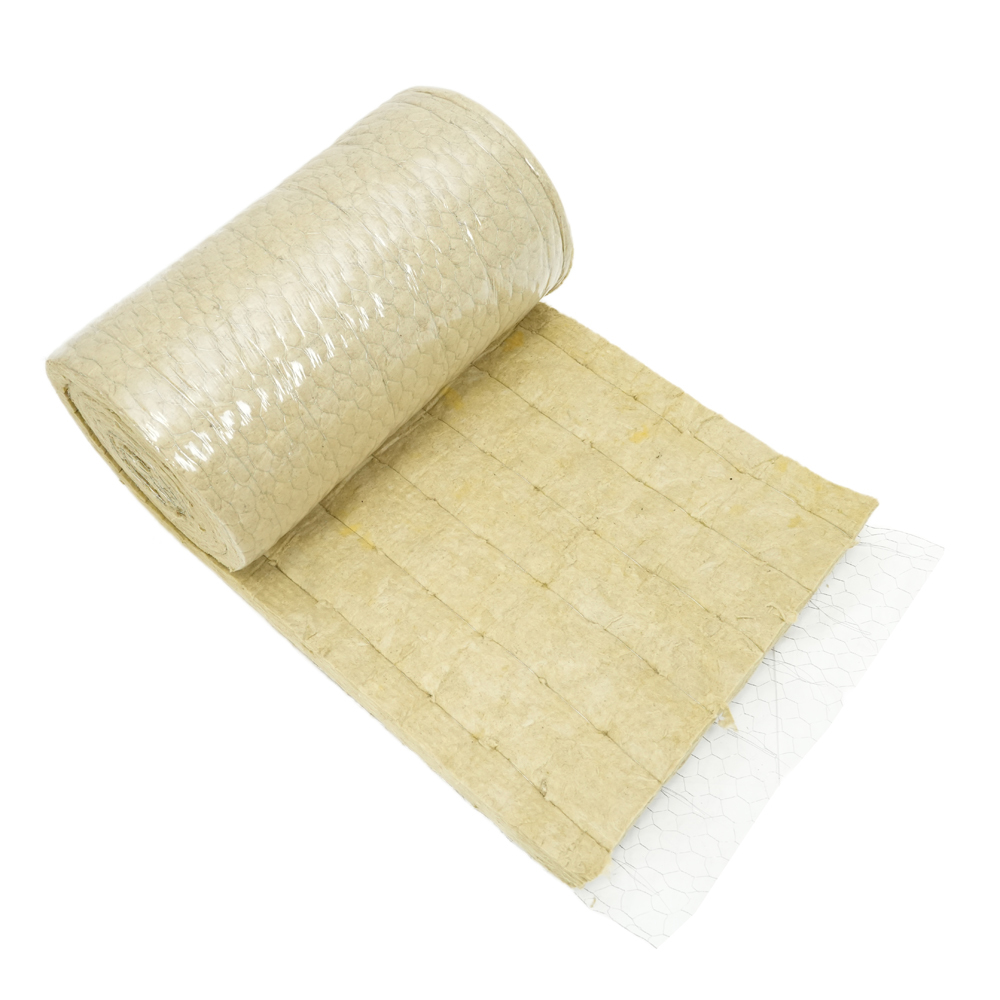

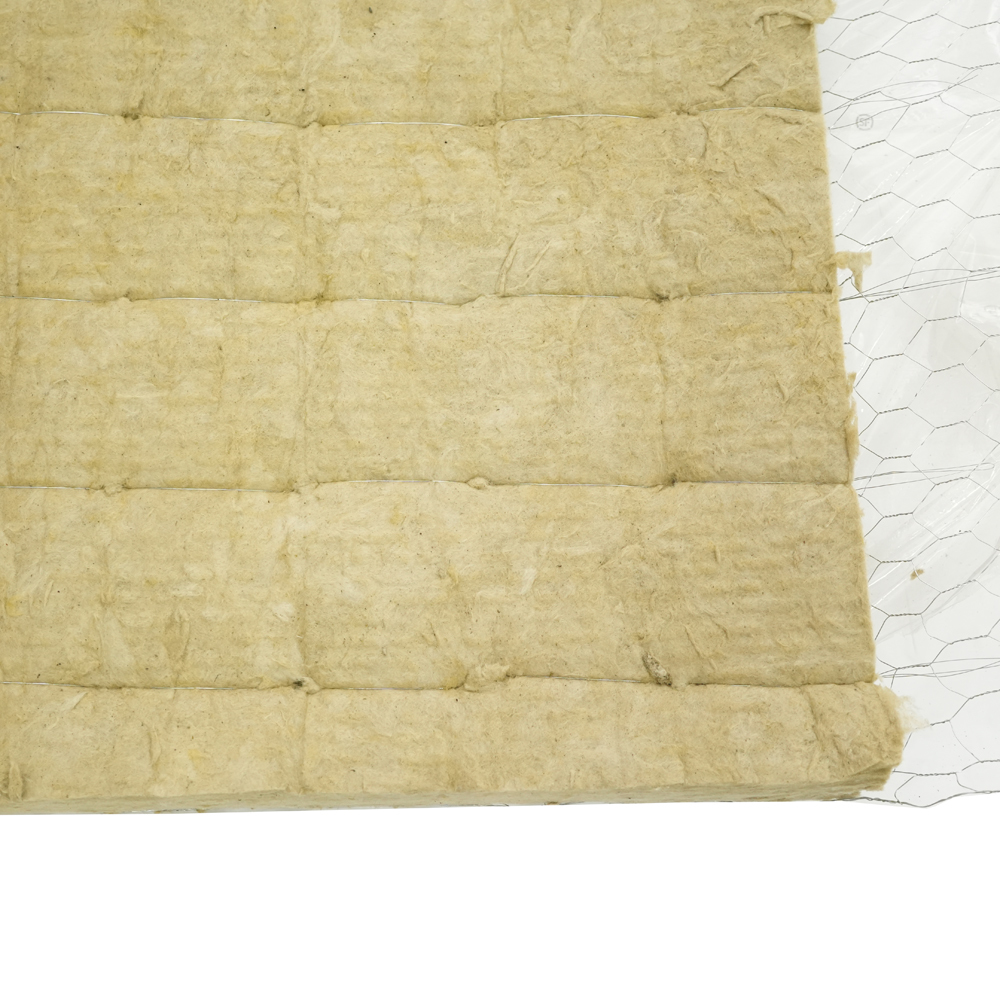

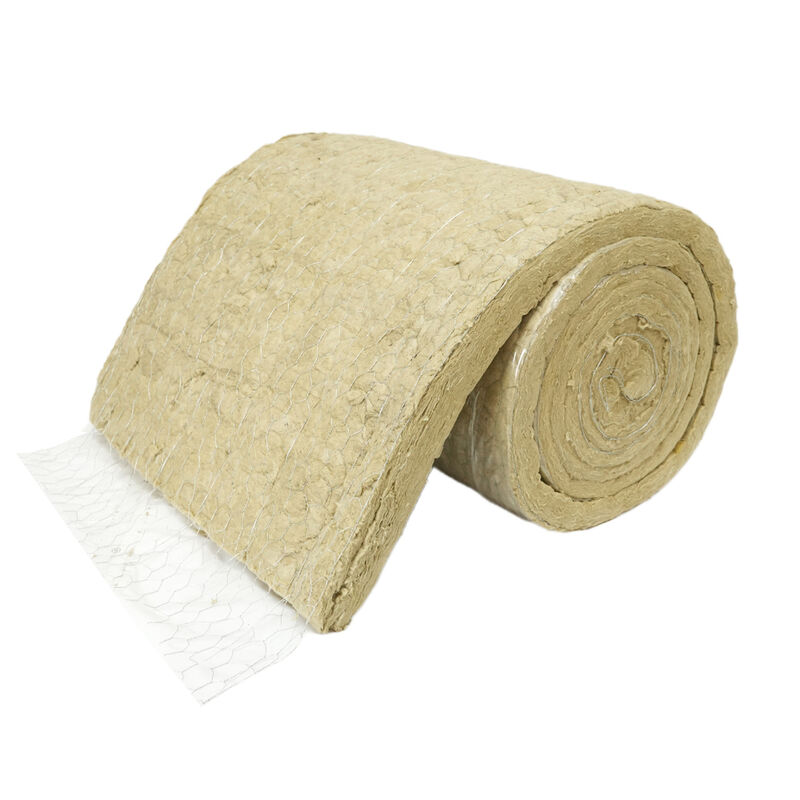

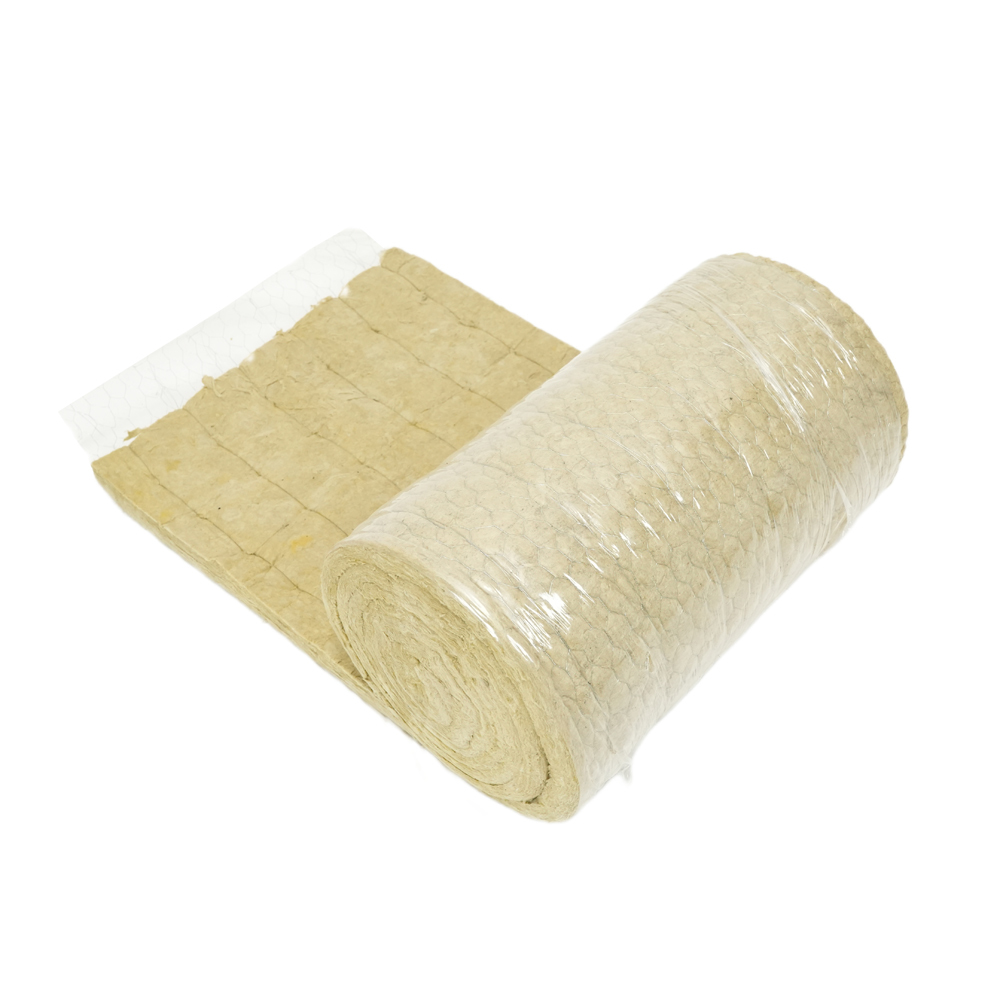

Product introduction of the Rock Wool Blanket
Specifically designed for commercial building applications, our wire mesh faced rock wool blanket combines fire safety with superior thermal and acoustic performance. This versatile insulation solution is perfect for external walls, roofing systems, floating floors, and large diameter pipe insulation in shopping malls, offices, and residential complexes. The galvanized wire mesh facing provides added durability during installation and long-term service, while the dense rock wool core (60-100 kg/m³) ensures excellent sound absorption and energy conservation. With a melting point exceeding 1000℃ and Class A1 fire rating, this blanket meets the strictest building safety codes. Easy to cut and shape on-site, it accommodates various architectural details. Standard rolls of 600mm x 5000mm are available in multiple thicknesses, packaged for export in protective plastic and woven bags. Custom sizes and mesh configurations are available upon request.
Product parameter of the Rock Wool Blanket
| Properties | Blanket | Standards |
|---|---|---|
| Density Tolerance | ±10% | GB/T 19686-2005 |
| Fire Performance | Non-Combustible | GB/T 5464-1999 |
| Reaction to fire Class A1 | GB/T 8624-2006 | |
| Thermal Conductivity (W/mK, at70±5℃) | ≤0.044 | GB/T 10295 |
| Fiber Diameter | 7(+/-1)um | GB/T 5480. 4 |
| Shot Content (shot size＞0.25mm) | ≤12% | |
| Moisture Content | ≤0.5% | |
| Organic Matter Content | ≤4% | |
| Melting Point | ＞1000℃ |
Product size of the Rock Wool Blanket
| Product | Blanket |
|---|---|
| Density (kg/m3) | 60-100 |
| Size: L x W (mm) | 600X5000 |
| Thickness (mm) | 30-150 |
Product feature of the Rock Wool Blanket
Product application of the Rock Wool Blanket
Insulation for external wall, roofing and floating floor
Insulation for big sized pipeline
ROCK WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants, for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation, acoustic control and condensation control.
Production packing of the Rock Wool Blanket
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag + woven bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on Rock Wool Blanket?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
