| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 環境への影響: | リサイクル可能で環境に優しい | 材料: | ミネラルウール |
|---|---|---|---|
| 寸法: | 通常は600mm x 1200mm | 設置方法: | 機械的固定または接着剤 |
| 厚さ範囲: | 25mm～150mm | 温度 抵抗: | -268℃～700℃ |
| 圧縮強度: | 10 kPa以上 | 熱伝導性: | 0.035W/m・K |
| アプリケーション: | 建築断熱、産業断熱、HVAC システム | 水 吸収: | <1% |
| 密度: | 40～120kg/m3 | 耐火性: | 不燃性A1種 |
| 湿度 耐久性: | 良い | 製品名: | 熱隔熱鉱物羊毛 |
| 吸音率: | 0.85 | ||
| ハイライト: | foil-backed glass wool insulation,industrial glass wool insulation,architectural thermal insulation wool |
||

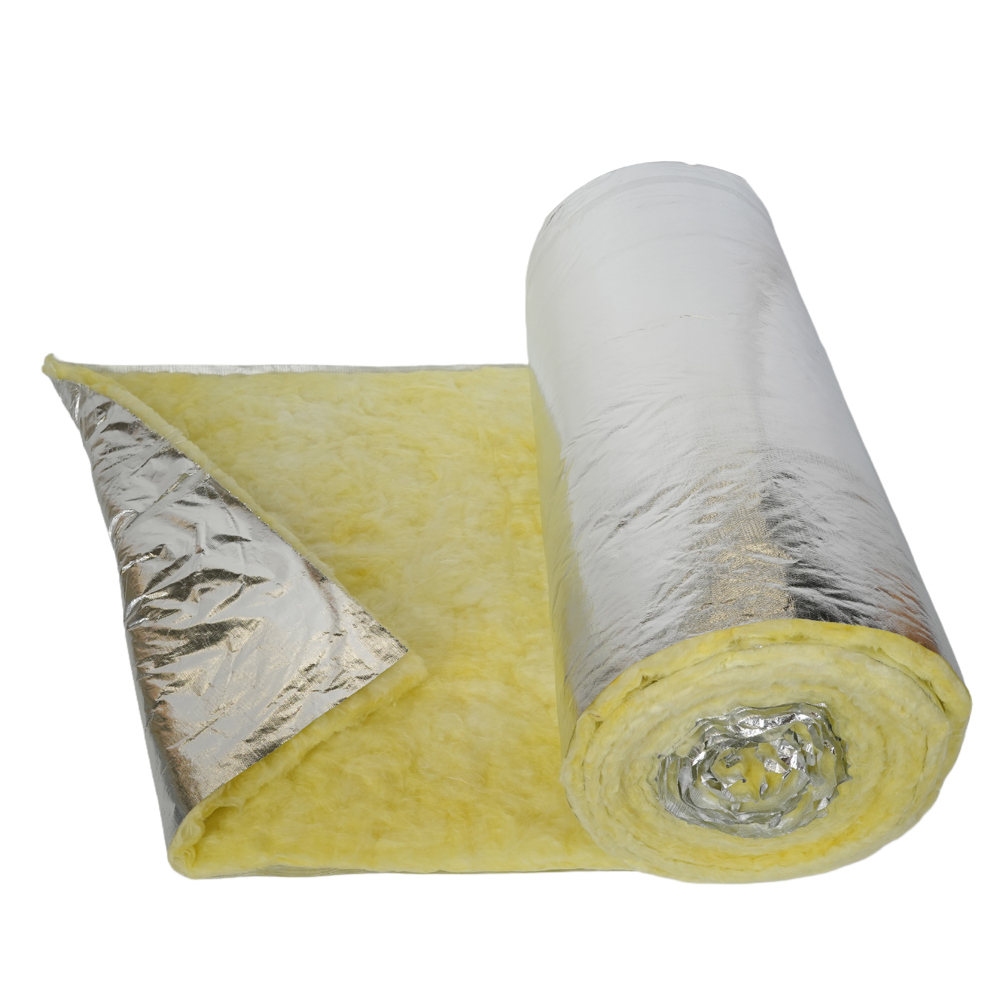

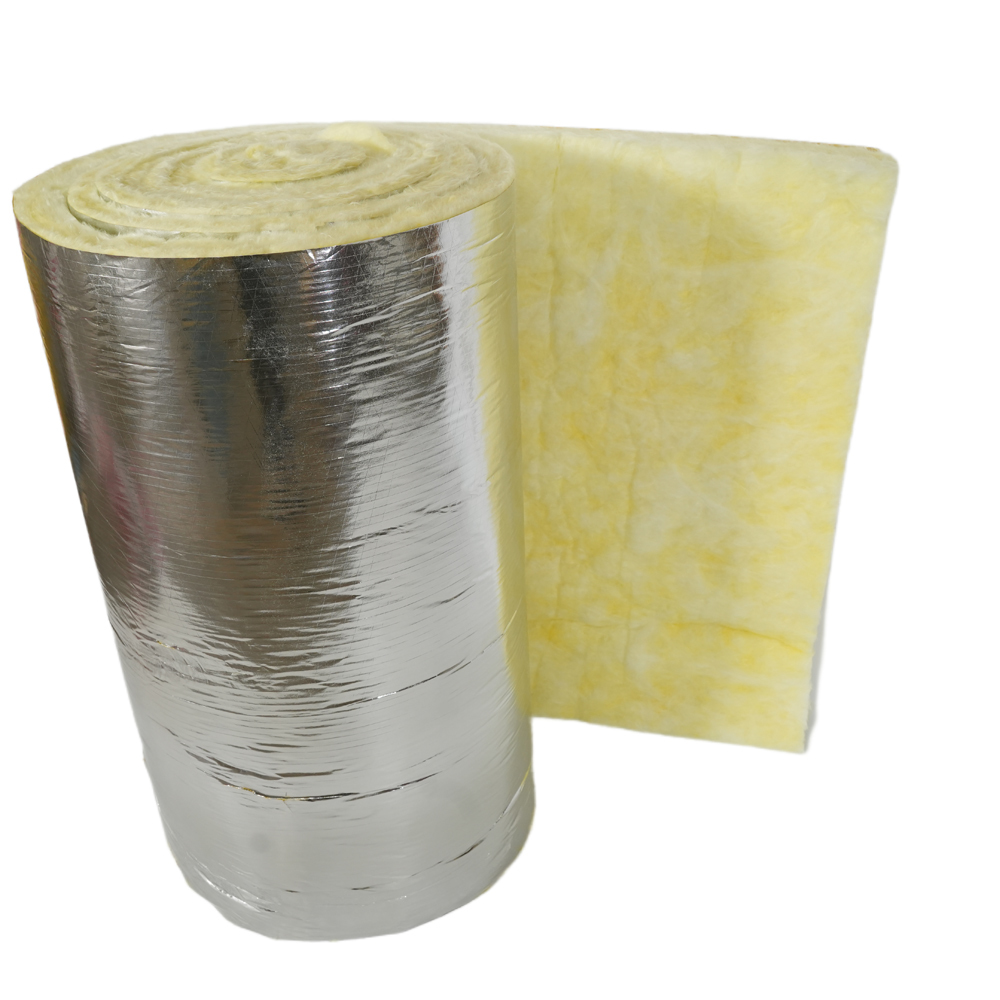

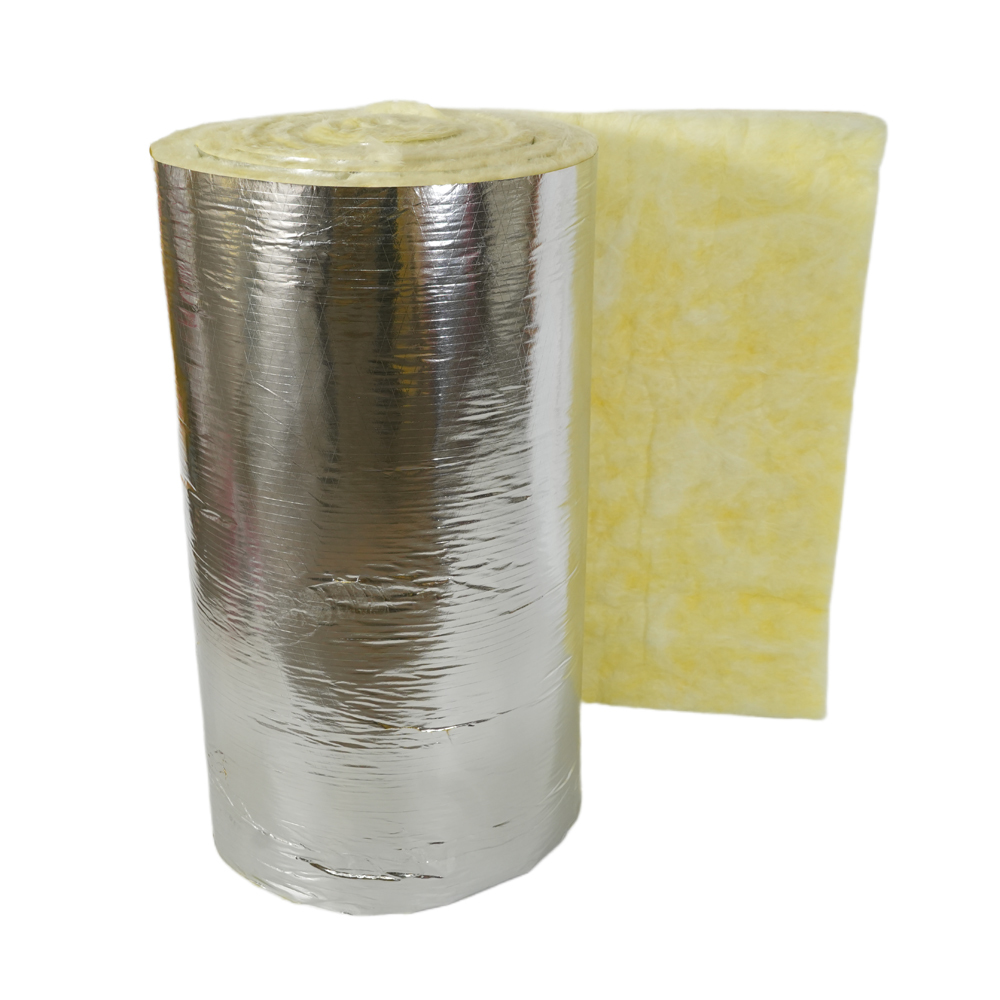

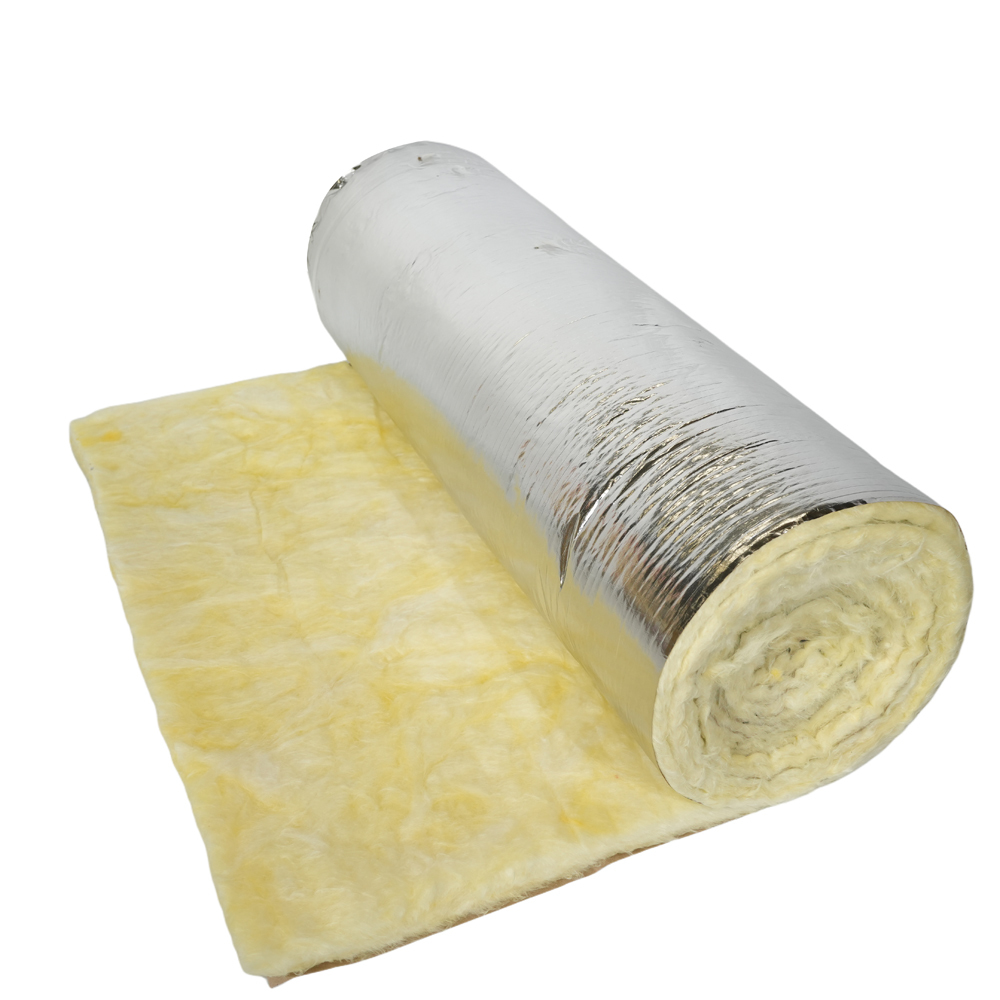

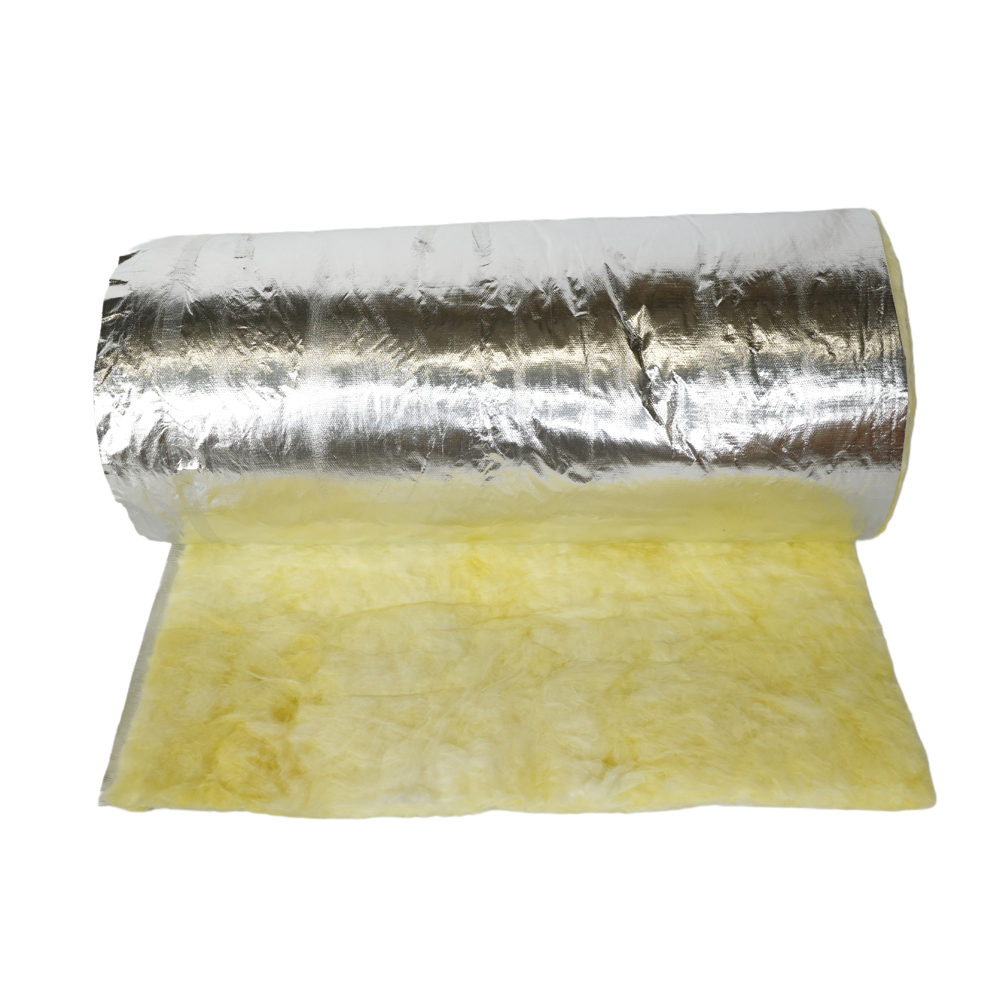

Designed for demanding environments, our Foil-Backed Glass Wool Blanket offers a robust solution for thermal management and noise reduction. The aluminum foil layer provides an effective radiant barrier, while the glass wool core ensures low thermal conductivity and high sound absorption. This product is engineered for longevity, performance, and ease of use in both new construction and retrofit projects.
| Item | Unit | Index | Standard |
|---|---|---|---|
| Bulk density | kg/m3 | 10-48 | GB/T 5480.3-1985 |
| Average fiber dia. | µm | 5.5 | GB/T 5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Preshrinking temp | ℃ | ≥250 | GB/T 11835-1998 |
| Thermal conductibility | w/m.k | 0.031-0.043 | GB/T 10294-1988 |
| Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
| Moisture rate | % | ≤5 | GB/T 16401-1986 |
| Sound absorption coefficient | 1.03 product reverberation method 24kg/m3 2000HZ | GBJ 47-83 | |
| Slag inclusion content | % | ≤0.3 |
| Density(kg/m3) | Thickness(m) | Thermal conductibility(W/m.k) | Thermal resisitance(m2.K/W) |
|---|---|---|---|
| 10 | 0.05 | 0.043 | 1.163 |
| 10 | 0.1 | 0.043 | 2.326 |
| 12 | 0.05 | 0.042 | 1.190 |
| 12 | 0.1 | 0.042 | 2.381 |
| 14 | 0.05 | 0.041 | 1.220 |
| 14 | 0.1 | 0.041 | 2.439 |
| 16 | 0.05 | 0.039 | 1.282 |
| 16 | 0.1 | 0.039 | 2.564 |
| 20 | 0.025 | 0.038 | 0.658 |
| 20 | 0.05 | 0.038 | 1.316 |
| 24 | 0.025 | 0.036 | 0.694 |
| 24 | 0.05 | 0.036 | 1.389 |
| 32 | 0.025 | 0.034 | 0.735 |
| 32 | 0.05 | 0.034 | 1.471 |
| 48 | 0.025 | 0.033 | 0.758 |
| 48 | 0.05 | 0.033 | 1.515 |
| Density(kg/m3) | Thickness(m) | Length (m) | Width (m) | Rolls/packing | |
|---|---|---|---|---|---|
| 10-48 | 0.025-0.2 | 5-30 | 0.6 | 2 rolls | |
| 10-48 | 0.025-0.2 | 5-30 | 1.1 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.15 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.2 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.25 | 1 roll | 2 rolls overlapping |
High-Temperature Resistance: Withstands continuous exposure up to 250°C without degradation.
Moisture & Mold Resistant: Foil facing acts as a vapor retarder, ideal for humid climates.
Excellent Acoustic Performance: Sound absorption coefficient up to 1.03 at 2000Hz.
Durable & Tear-Resistant: Reinforced scrim layer enhances durability during handling and installation.
Sustainable & Safe: Made from recycled glass content, non-combustible, and fiber-free during cutting.
