| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 最小注文数量: | 1 40HC |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 密度: | 40-200 kg/m³ | アプリケーション: | 建築断熱、産業断熱、HVAC システム |
|---|---|---|---|
| 熱伝導率: | 0.035～0.045W/m・K | 吸水性: | 低い |
| 厚さ: | 20mm～100mm | 設置方法: | 機械的固定または接着剤 |
| 圧縮強度: | 10kPa以上 | 材料: | ミネラルウール |
| 音吸収係数: | 0.7～1.0 | 色: | 通常は茶色または黄色がかっています |
| 耐火性: | 不燃性A1種 | 環境への影響: | リサイクル可能で環境に優しい |
| 耐熱性: | 最大1000°C | 寸法: | カスタマイズ可能 (例: 600x1200 mm ボード) |
| ハイライト: | aluminum foil glass wool blanket,thermal insulation mineral wool blanket,acoustic barrier glass wool blanket |
||

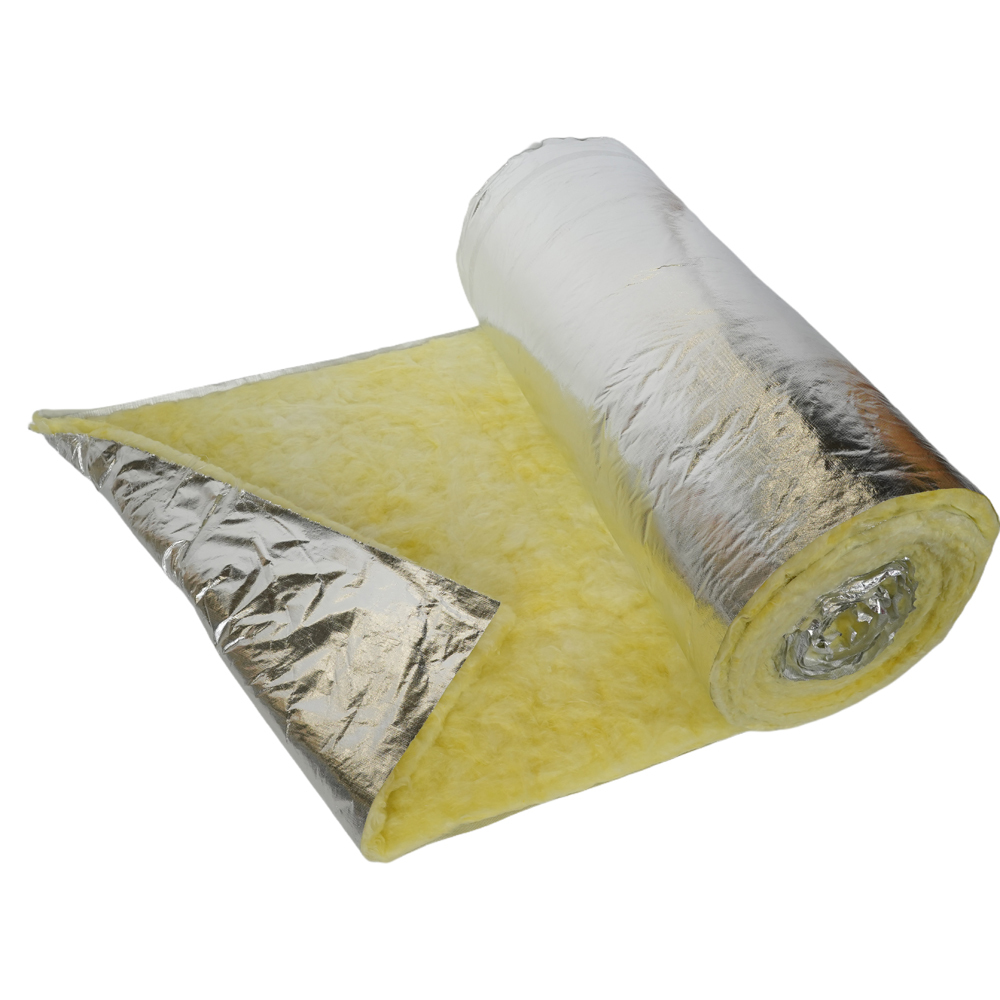

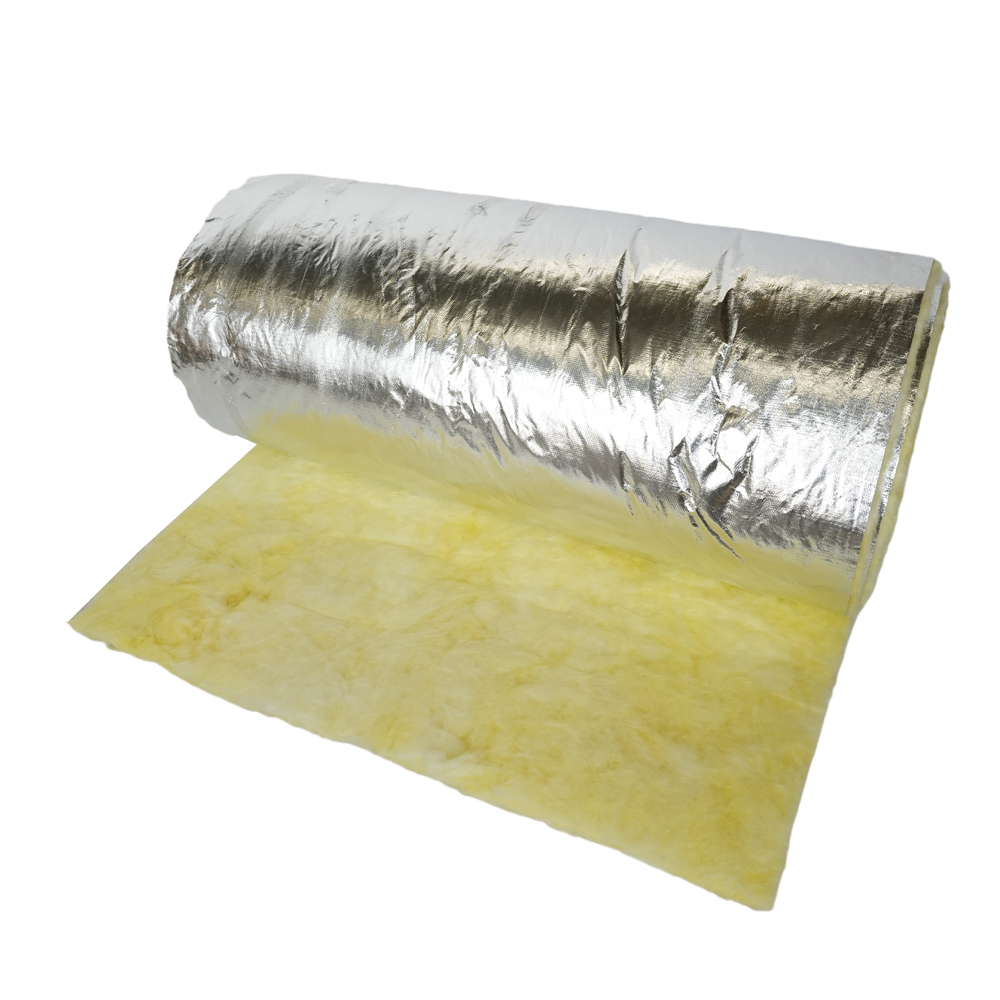

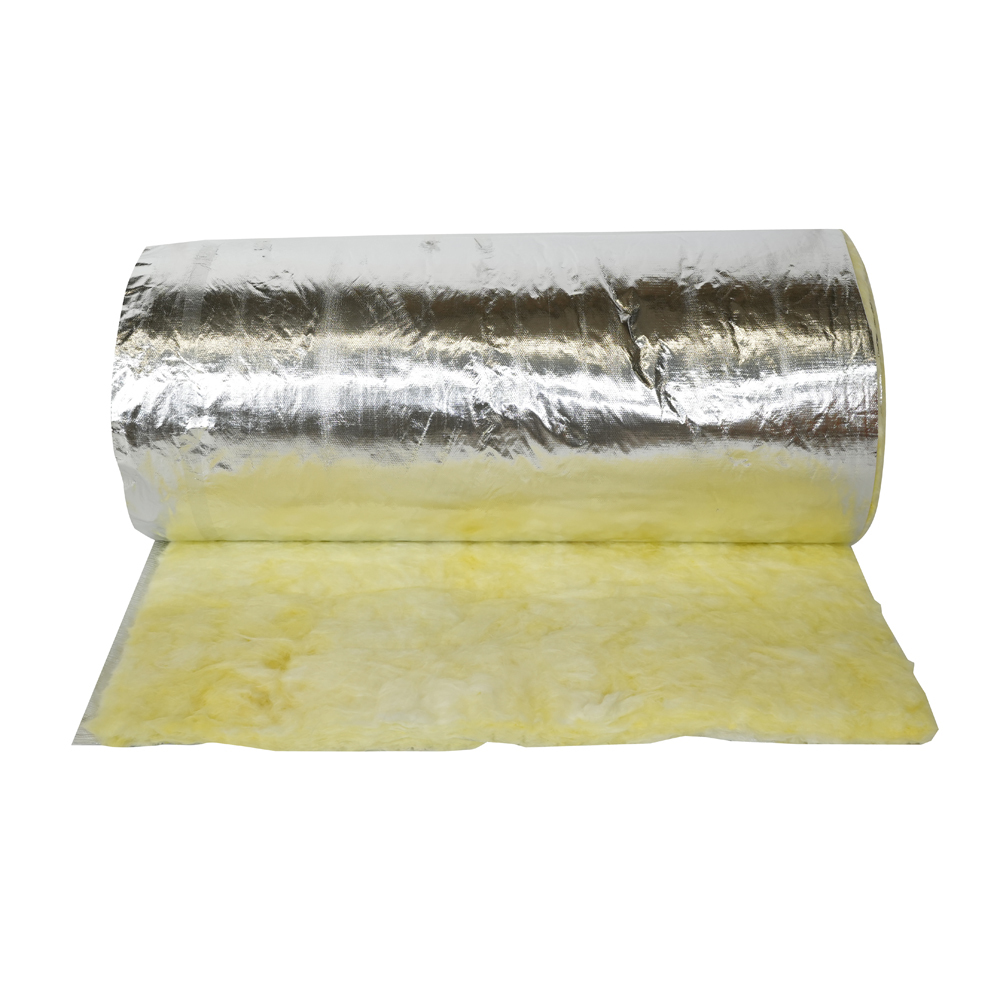

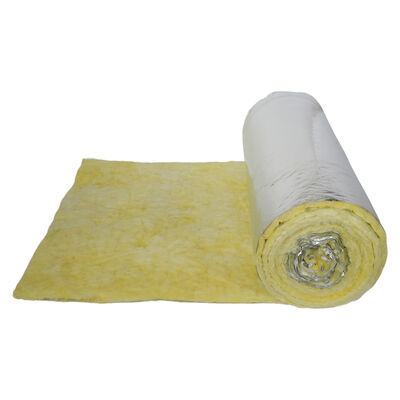

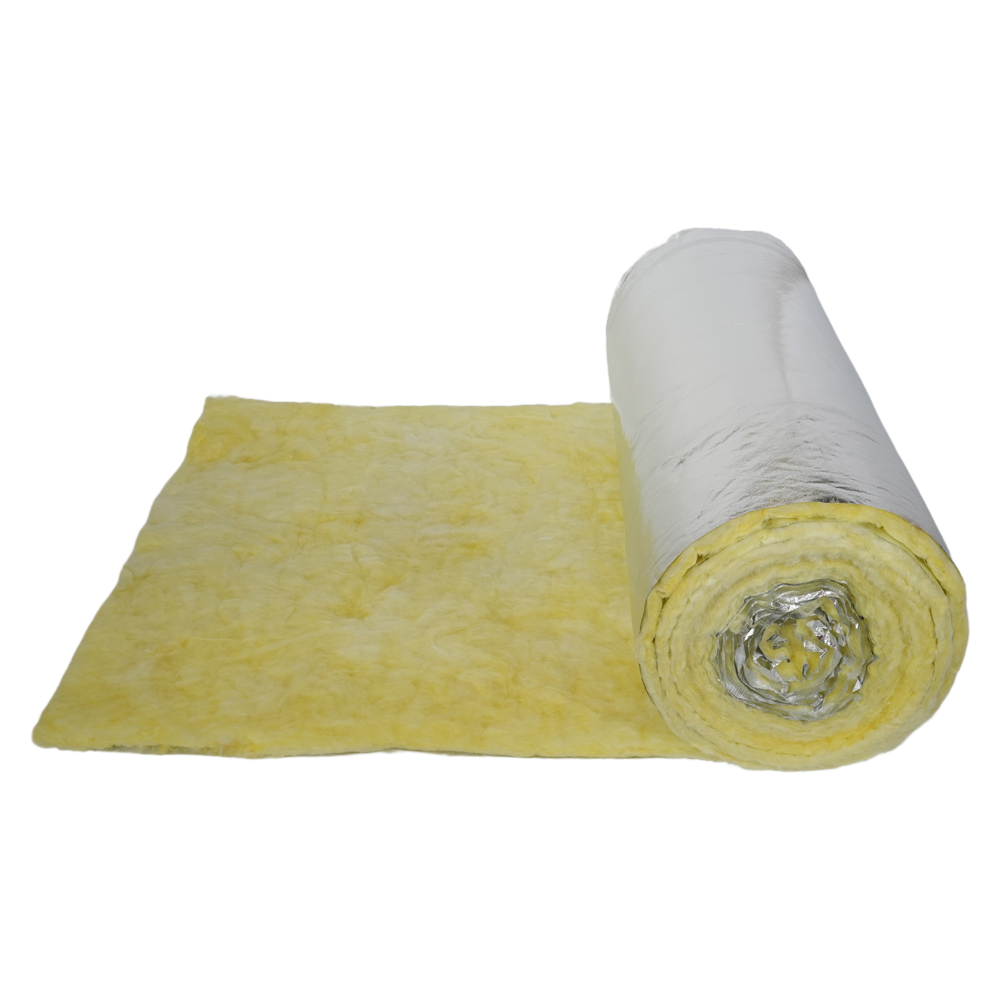

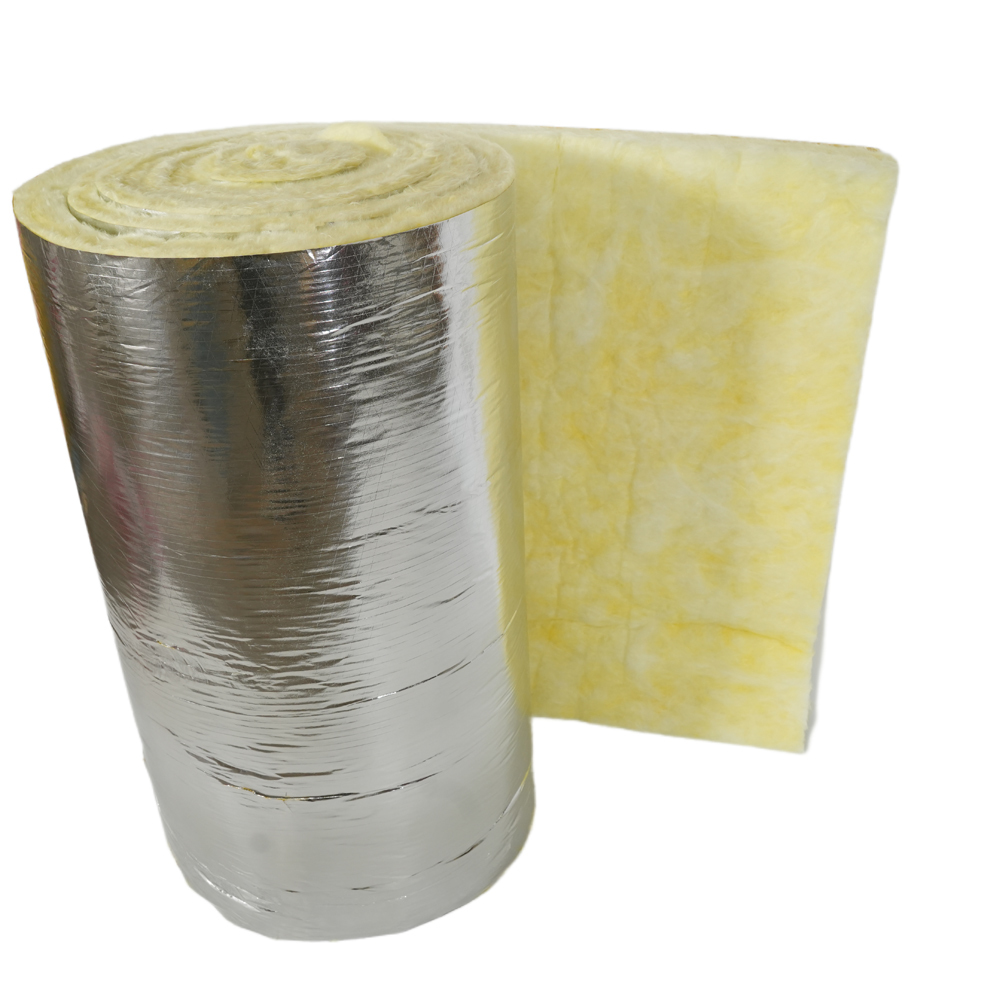

Our Aluminum Foil-Faced Glass Wool Blanket combines high-performance centrifugal glass wool with a durable Foil-Scrim-Kraft (FSK) facing. This triple-layer facing includes aluminum foil for radiant heat reflection, a reinforcing scrim for strength, and a kraft paper backing for added stability. The result is an insulation product that excels in thermal efficiency, moisture resistance, and acoustic control.
| Item | Unit | Index | Standard |
|---|---|---|---|
| Bulk density | kg/m3 | 10-48 | GB/T 5480.3-1985 |
| Average fiber dia. | µm | 5.5 | GB/T 5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Preshrinking temp | ℃ | ≥250 | GB/T 11835-1998 |
| Thermal conductibility | w/m.k | 0.031-0.043 | GB/T 10294-1988 |
| Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
| Moisture rate | % | ≤5 | GB/T 16401-1986 |
| Sound absorption coefficient | 1.03 product reverberation method 24kg/m32000HZ | GBJ 47-83 | |
| Slag inclusion content | % | ≤0.3 |
| Density(kg/m3) | Thickness(m) | Thermal conductibility(W/m.k) | Thermal resisitance(m2.K/W) |
|---|---|---|---|
| 10 | 0.05 | 0.043 | 1.163 |
| 10 | 0.1 | 0.043 | 2.326 |
| 12 | 0.05 | 0.042 | 1.190 |
| 12 | 0.1 | 0.042 | 2.381 |
| 14 | 0.05 | 0.041 | 1.220 |
| 14 | 0.1 | 0.041 | 2.439 |
| 16 | 0.05 | 0.039 | 1.282 |
| 16 | 0.1 | 0.039 | 2.564 |
| 20 | 0.025 | 0.038 | 0.658 |
| 20 | 0.05 | 0.038 | 1.316 |
| 24 | 0.025 | 0.036 | 0.694 |
| 24 | 0.05 | 0.036 | 1.389 |
| 32 | 0.025 | 0.034 | 0.735 |
| 32 | 0.05 | 0.034 | 1.471 |
| 48 | 0.025 | 0.033 | 0.758 |
| 48 | 0.05 | 0.033 | 1.515 |
| Density(kg/m3) | Thickness(m) | Length (m) | Width (m) | Rolls/packing | |
|---|---|---|---|---|---|
| 10-48 | 0.025-0.2 | 5-30 | 0.6 | 2 rolls | |
| 10-48 | 0.025-0.2 | 5-30 | 1.1 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.15 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.2 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.25 | 1 roll | 2 rolls overlapping |
Enhanced Thermal Insulation: Aluminum foil reflects up to 97% of radiant heat, significantly improving energy efficiency.
Excellent Vapor Barrier: FSK facing prevents moisture penetration, protecting structures from mold and condensation.
Superior Sound Absorption: Effectively reduces mid to low-frequency noise, ideal for mechanical rooms and studios.
Fire-Safe & Non-Toxic: Class A fire rating (non-combustible) and low VOC emissions ensure safe indoor use.
Easy Installation: Lightweight, flexible, and can be easily cut to fit complex shapes without specialized tools.
Standard Export Packing: Vacuum-sealed plastic bag + woven bag
OEM Packaging Available
Lead Time: 10–15 working days for one 40HC container
