| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 最小注文数量: | 1 40 本部 |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 設置方法: | サイズに合わせてカットし、スタッドまたはジョイストの間に取り付けます。 | 色: | 通常は灰色または茶色です |
|---|---|---|---|
| 圧縮回復: | 素晴らしい | 耐火性: | 不燃性A1種 |
| 材料: | ミネラルウール | 環境に優しい: | リサイクル可能で非毒性 |
| 厚さ: | 25-100 mm | 熱伝導性: | 0.035～0.045W/m・K |
| 寸法: | ロールまたはシート、カスタマイズ可能 | 温度 抵抗: | 650°Cまで |
| 応用: | 断熱、防火、防音 | 水 吸収: | <1% |
| 吸音率: | 0.75-100 | 密度: | 40～120kg/m3 |
| 製品名: | ミネラルウールの毛布 | ||
| ハイライト: | double-sided wire mesh rock wool blanket,high-temperature gasket rock wool blanket,mineral wool blanket for seals |
||

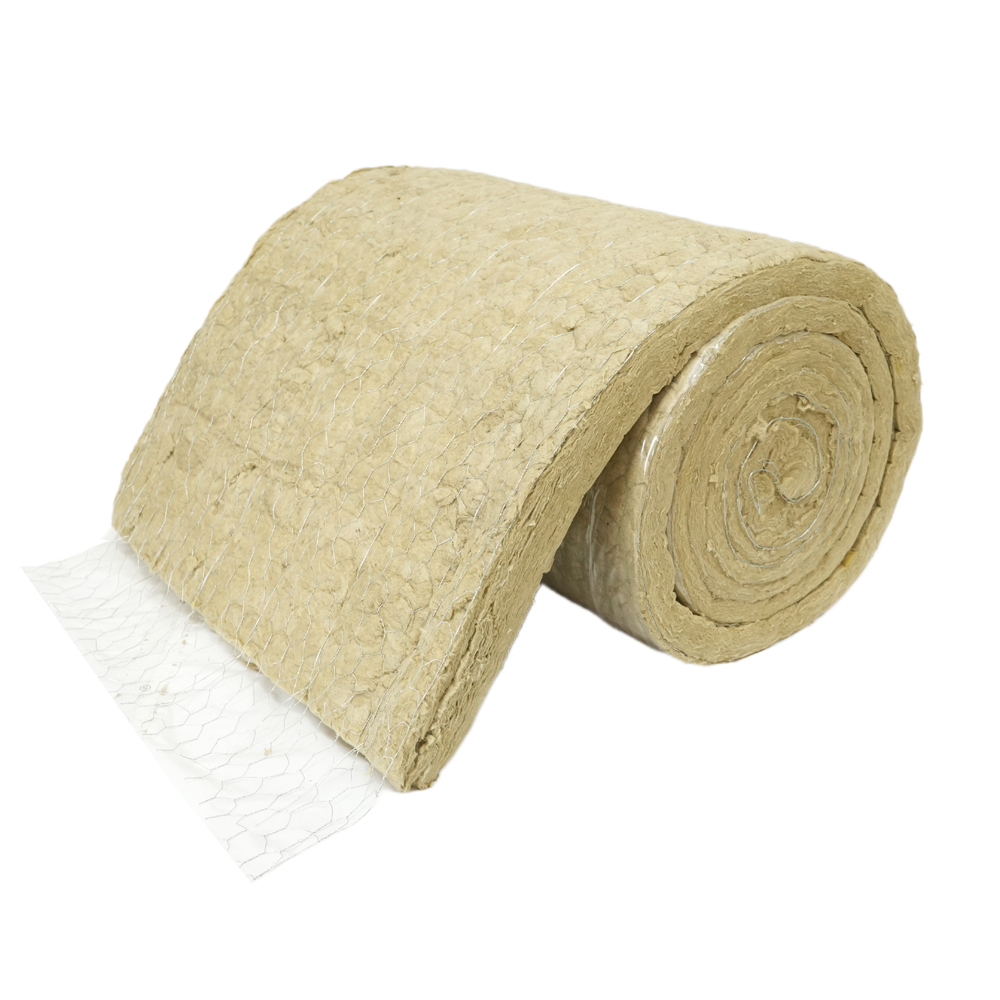

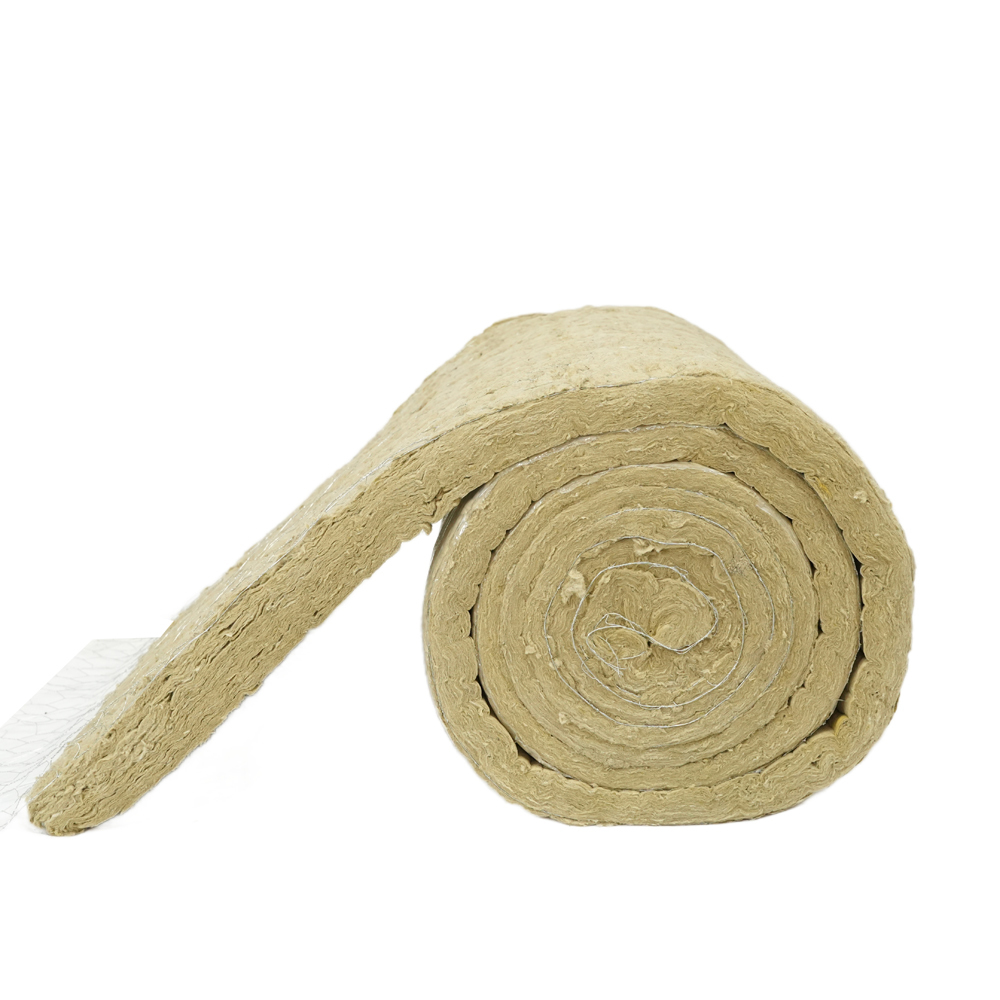

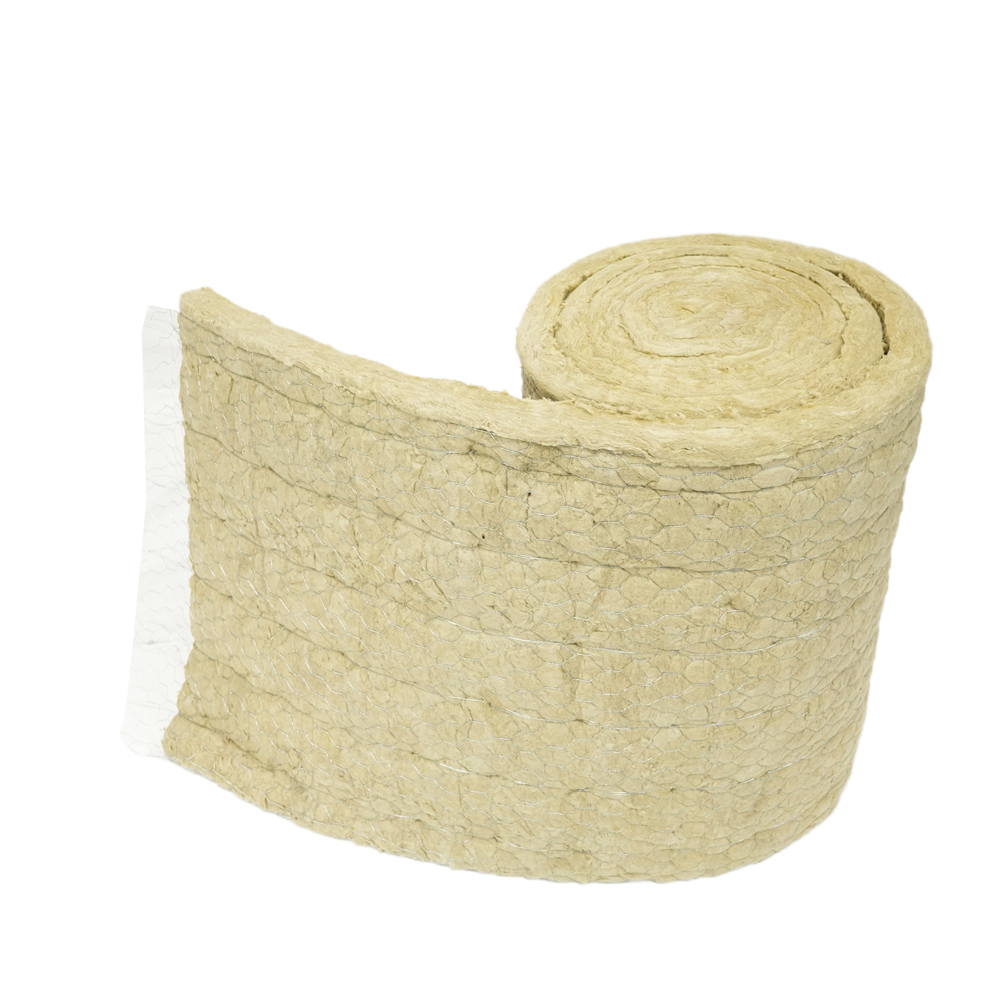

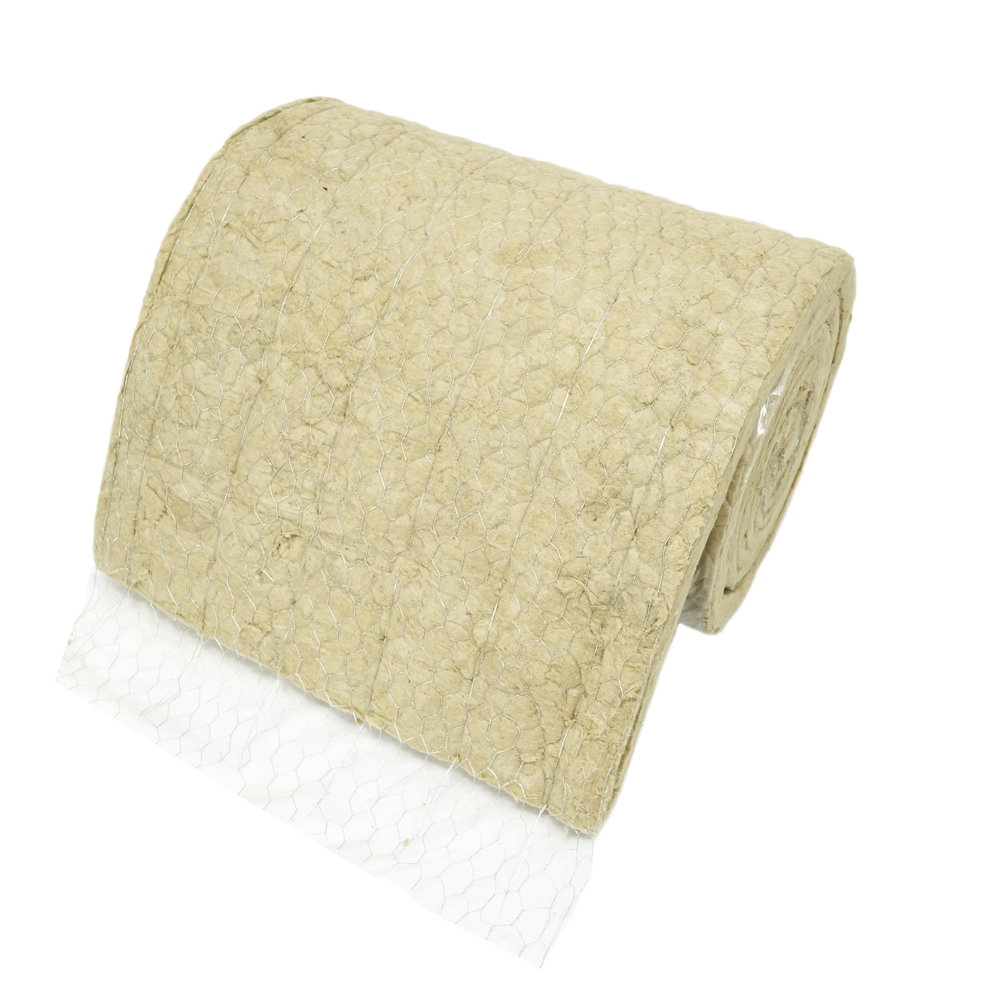

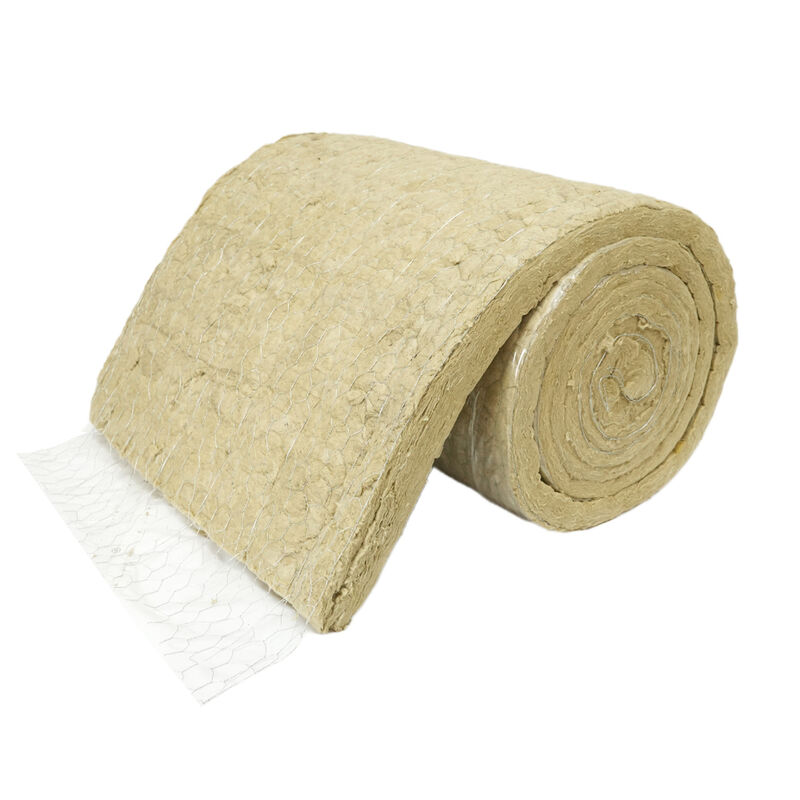

The FANRYN Double-Sided Wire Mesh Rock Wool Blanket is a specialized, high-compressive-strength insulation product designed for extreme temperature sealing applications. Encapsulated between two layers of fine stainless steel wire mesh, the high-density rock wool core is compressed to create a durable, resilient blanket used for furnace door gaskets, expansion joints, and fire barriers where both thermal integrity and physical resilience are critical.
| Properties | Blanket | Standards |
|---|---|---|
| Density Tolerance | ±10% | GB/T 19686-2005 |
| Fire Performance | Non-Combustible | GB/T 5464-1999 |
| Reaction to fire Class A1 | GB/T 8624-2006 | |
| Thermal Conductivity (W/mK, at70±5℃) | ≤0.044 | GB/T 10295 |
| Fiber Diameter | 7(+/-1)um | GB/T 5480. 4 |
| Shot Content (shot size＞0.25mm) | ≤12% | |
| Moisture Content | ≤0.5% | |
| Organic Matter Content | ≤4% | |
| Melting Point | ＞1000℃ |
| Product | Blanket |
|---|---|
| Density (kg/m3) | 60-100 |
| Size: L x W (mm) | 600X5000 |
| Thickness (mm) | 30-150 |
Exceptional Resilience: Withstands repeated compression and recovery, making it perfect for dynamic sealing applications on doors, kilns, and movable furnace parts.

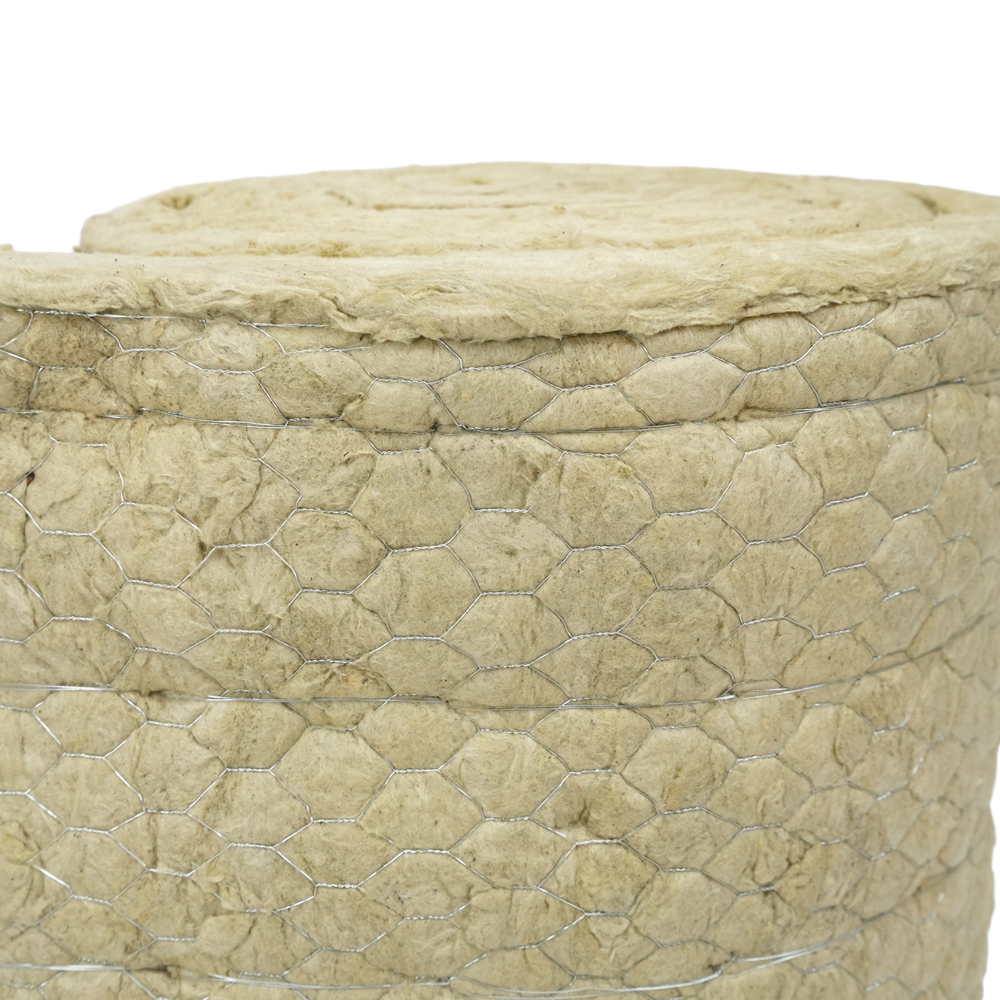

Metal Fiber Reinforcement: The fine stainless steel mesh facing reinforces the surface, resists direct flame impingement, and contains any fiber wash.
Clean & Contained: The double-sided mesh fully encapsulates the mineral wool fibers, preventing fiber release in sensitive environments and allowing for cleaner handling.
Custom Fabrication: Can be die-cut, CNC-shaped, or fabricated into complex gaskets and seals according to technical drawings.
Furnace and kiln door gaskets in metal processing and ceramics industries.
Insulation seals for high-temperature valves and flanges.
Fireproof sealing in expansion joints and penetrations.
Internal insulation layer in high-temperature filtration systems.
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag + woven bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on Rock Wool Blanket?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
