| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 最小注文数量: | 1 40 HC |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 圧縮強度: | 10 kPa以上 | 熱伝導率: | 0.035W/m・K |
|---|---|---|---|
| アプリケーション: | 建築断熱、産業断熱、HVAC システム | 耐火性: | 不燃性A1種 |
| 密度: | 40～200kg/m3 | 吸水性: | 1％未満 |
| 音吸収係数: | 0.85 | 厚さの範囲: | 25mm～150mm |
| 蒸気透気性: | 高い | 材料: | ミネラルウール |
| 環境への影響: | リサイクル可能で環境に優しい | 寸法: | ボード、ロール、スラブで入手可能 |
| 設置方法: | 機械的な固定または接着剤による接着 | 温度耐性: | -270℃～700℃ |
| ハイライト: | vapor barrier pipe insulation,mineral wool pipe insulation,humid environment pipe insulation |
||

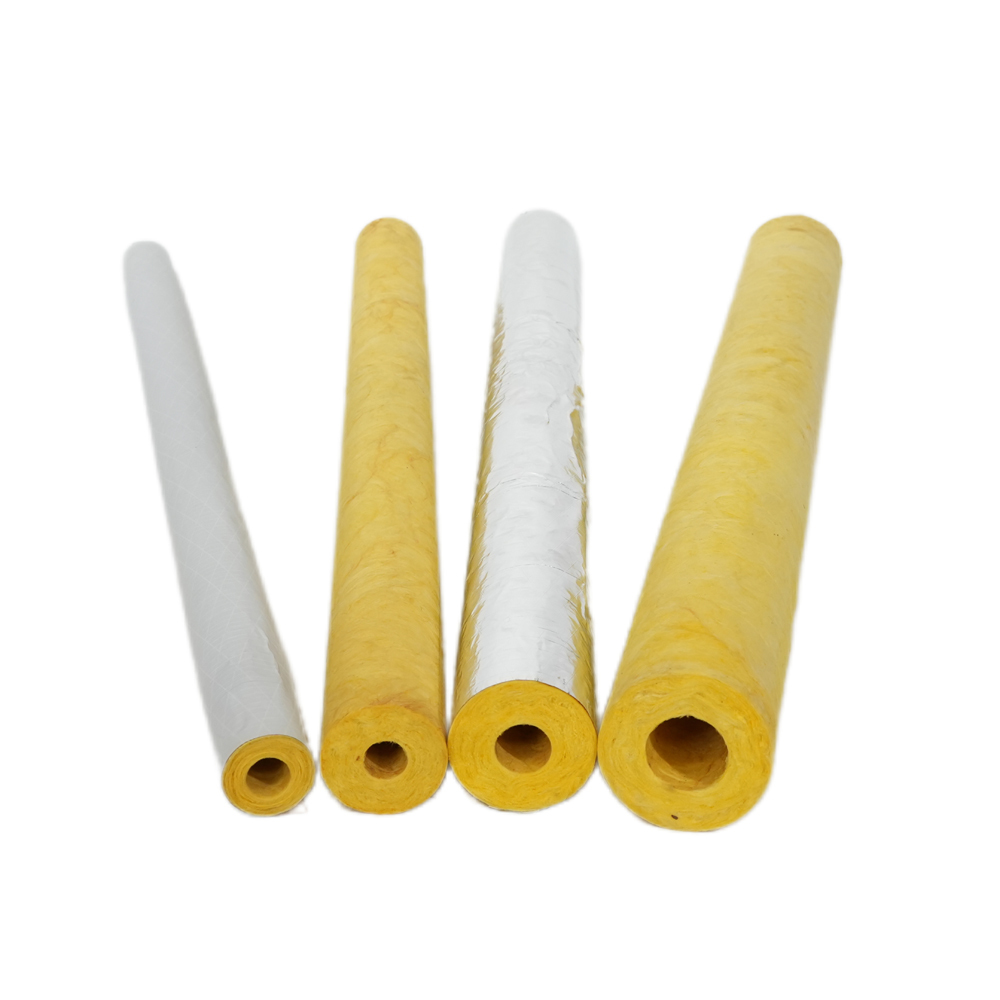

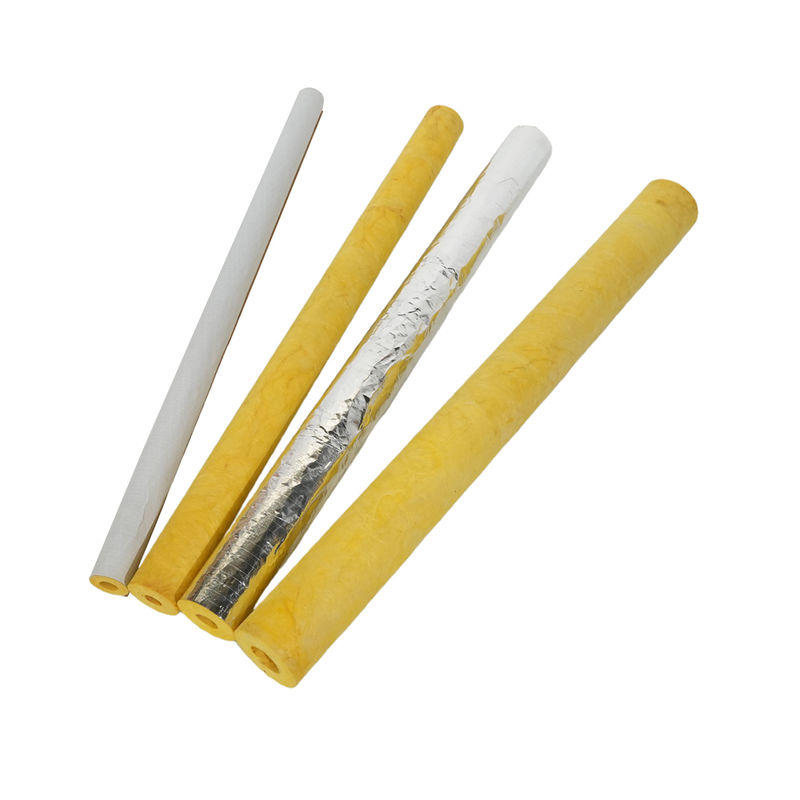

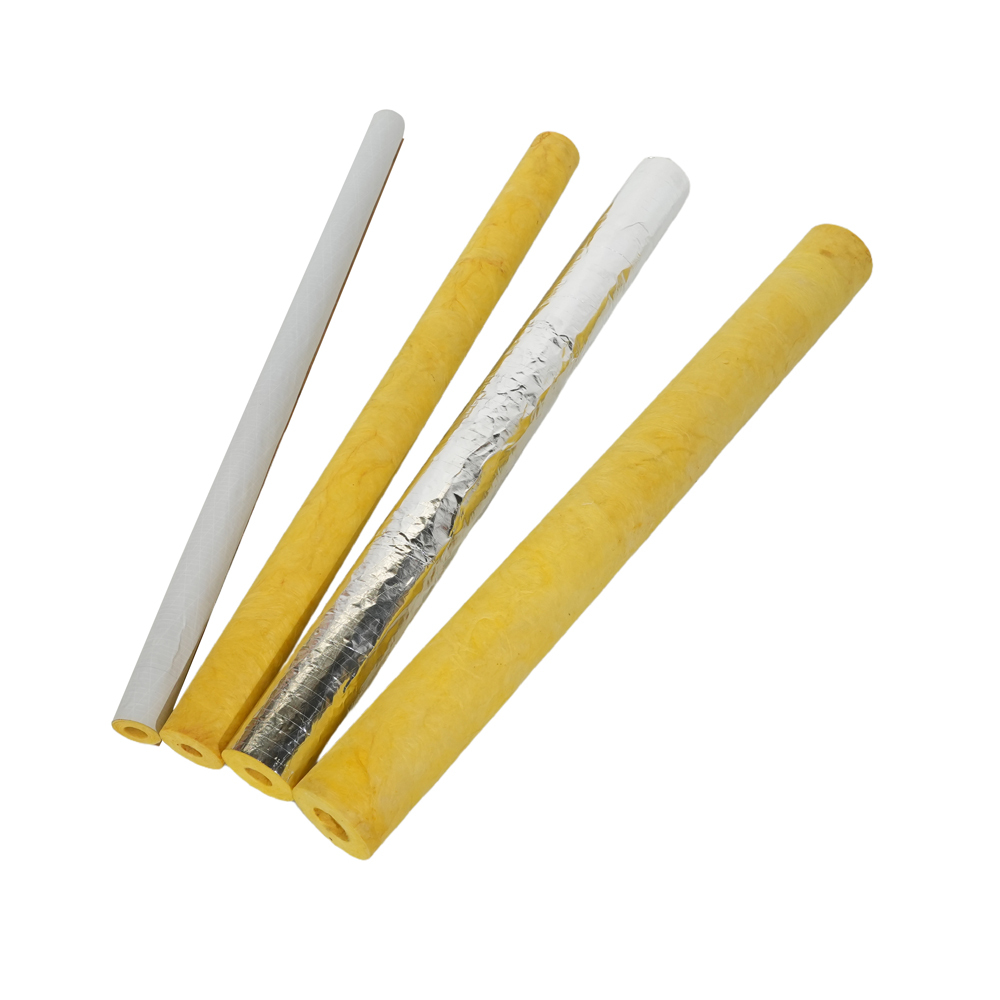

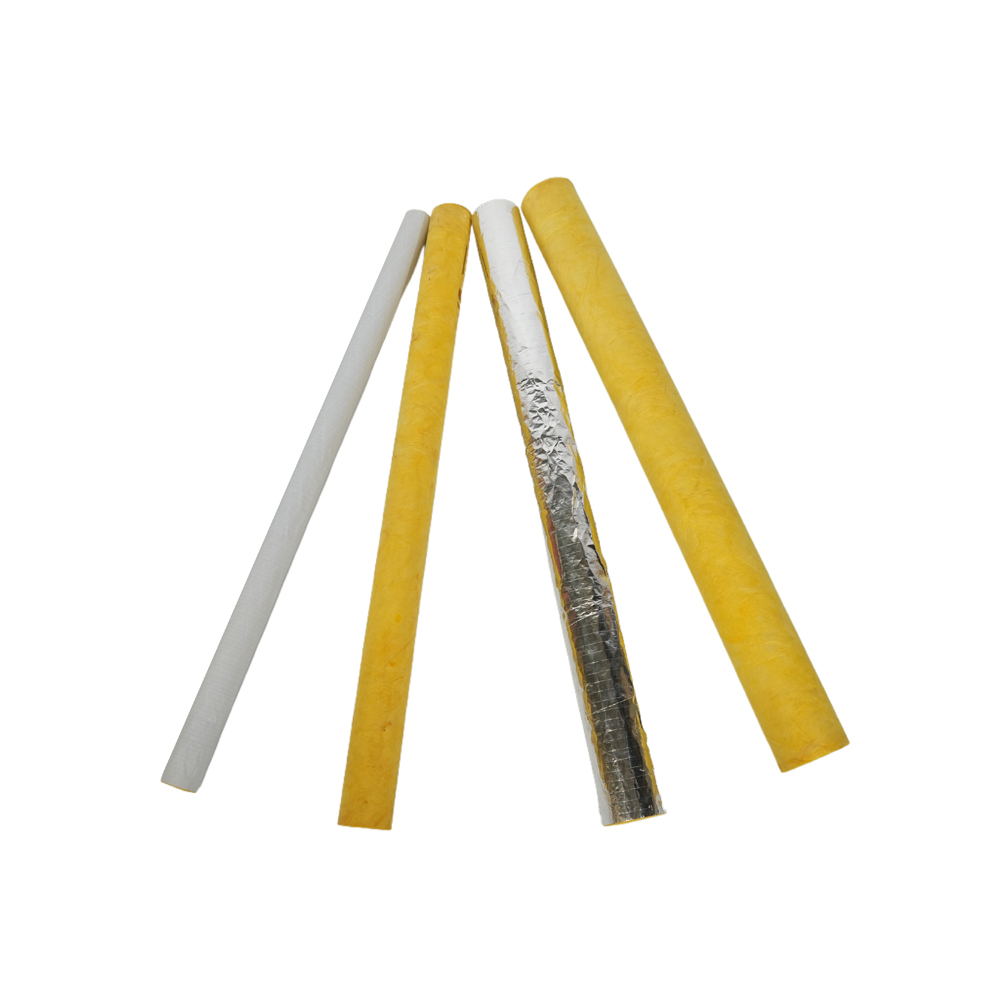

Product introduction of the glass wool pipe
Maximize insulation performance in challenging, humid conditions with our faced Glass Wool Pipe Sections. Available with Foil-Scrim-Kraft (FSK) or Alum Glass Cloth facings, these products include a built-in vapor retarder that protects the insulation from moisture ingress. This is critical for preventing a loss of thermal performance and fiber degradation, ensuring long-term reliability and efficiency in environments like swimming pools, food processing plants, and coastal areas.
Product parameter of the glass wool pipe
Recommend Thickness List(mm)
|
Pipeline System Type |
The Thickness of glasswood pipe shell applied in different pipeline(mm) |
||||||
|---|---|---|---|---|---|---|---|
|
Liquid Temperature Range℃ |
Diameter of Branches Under 50mm |
Under 25mm |
32-50 |
64-100 |
125-150 |
Above 200mm |
|
|
Air System Steaming and Water System High Temperature/ |
152-238 |
40 |
64 |
64 |
75 |
89 |
89 |
|
Medium Temperature/ |
122-151 |
40 |
50 |
64 |
64 |
75 |
75 |
|
low Temperature/ |
94-121 |
25 |
40 |
40 |
50 |
50 |
50 |
|
low Temperature System |
49-93 |
13 |
25 |
25 |
40 |
40 |
40 |
|
Steaming Condensator of Watering System |
Any Temperature |
25 |
25 |
40 |
50 |
50 |
50 |
Equivalent Thickness of Surface Cooling Prevention
|
Environment |
Relative Humidity |
System Working Temperature |
||
|---|---|---|---|---|
|
2℃ |
7℃ |
13℃ |
||
|
38℃ |
50%-60% |
25 |
25 |
25 |
|
70% |
40 |
30 |
30 |
|
|
80% |
75 |
60 |
50 |
|
|
85% |
100 |
90 |
75 |
|
|
32℃ |
50%-60% |
25 |
25 |
25 |
|
70% |
25 |
25 |
25 |
|
|
80% |
50 |
50 |
40 |
|
|
85% |
80 |
75 |
60 |
|
|
27℃ |
50%-70% |
25 |
25 |
25 |
|
80% |
50 |
40 |
30 |
|
|
85% |
75 |
65 |
50 |
|
|
21℃ |
50%-70% |
25 |
25 |
25 |
|
80% |
50 |
40 |
30 |
|
|
85% |
75 |
50 |
40 |
|
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
|
Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
|---|---|---|---|
|
48-80 |
25-90 |
1000,1200 |
18-529 |
Product feature and application of the glass wool pipe
Integrated Vapor Barrier: FSK or Alum Glass Cloth facing blocks moisture migration, protecting the insulation core.
Enhanced Durability: The facing adds surface strength and resistance to tearing during and after installation.
Clean & Professional Finish: Provides a neat, cleanable surface that is both aesthetically pleasing and functional.
All-in-One Solution: Combines thermal insulation and vapor protection in a single, easy-to-install product.

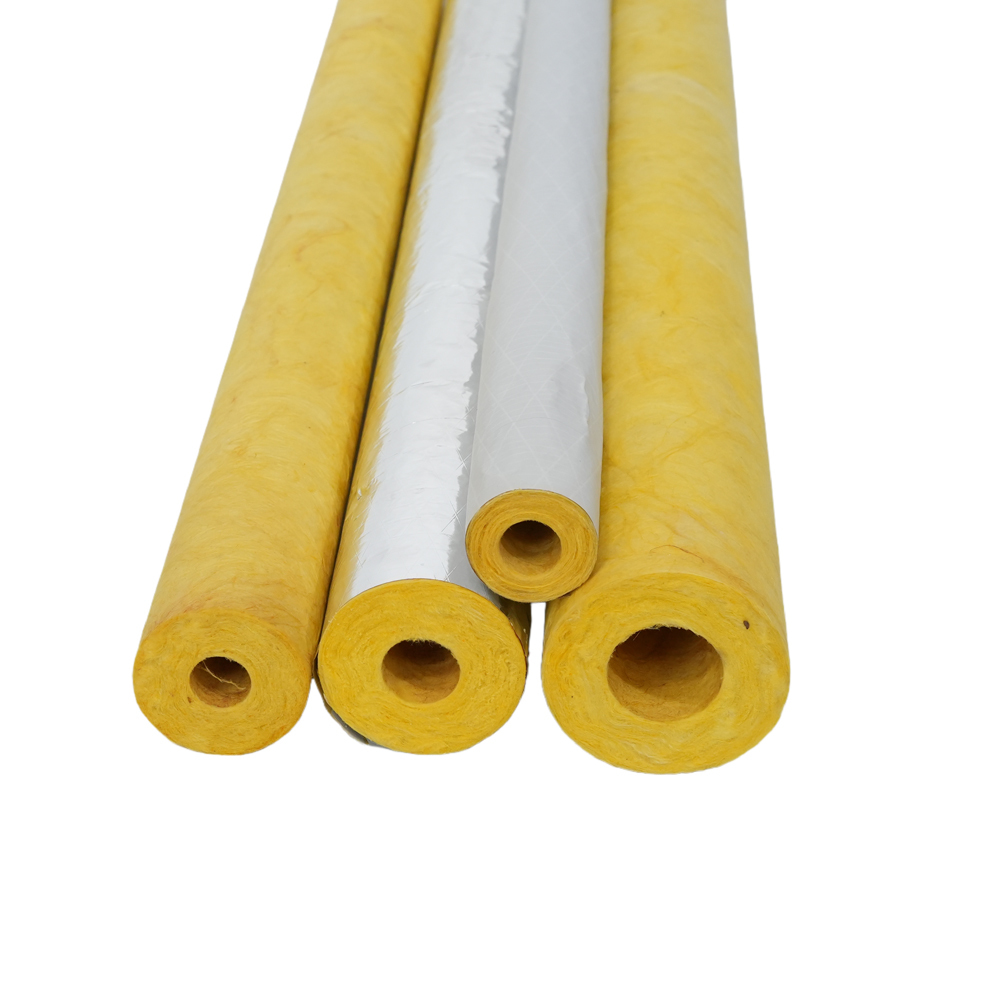

Production Facing of rock wool board
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process

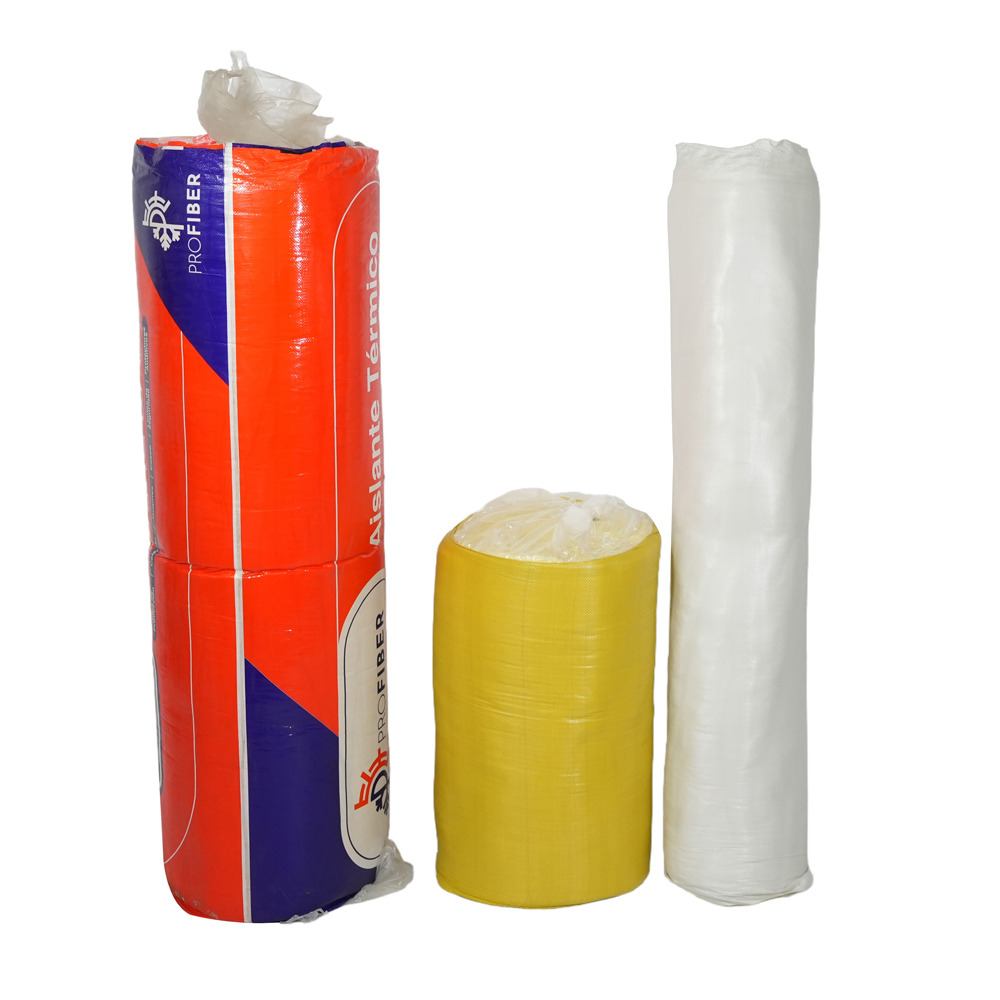

Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
