| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 最小注文数量: | 1 40HC |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| ProductName: | 熱隔熱鉱物羊毛 | 吸音率: | 0.85 |
|---|---|---|---|
| アプリケーション: | 建築断熱材、産業機器、HVAC システム | 厚さ: | 25-100 mm |
| 水 吸収: | 低い | 温度 抵抗: | -268℃～700℃ |
| 色: | 通常は黄色または茶色です | 寸法: | さまざま (通常は 600x1200 mm ボード) |
| 材料: | ミネラルウール | 密度: | 40～200kg/m3 |
| 環境への影響: | 再生利用できる、環境に優しい | 耐火性: | 不燃性A1種 |
| 設置方法: | 機械的固定または接着剤 | 熱伝導性: | 0.035W/m・K |
| 圧縮強度: | 10 kPa以上 | ||
| ハイライト: | Snap-On pipe insulation for retrofit,Mineral wool pipe insulation,Easy maintenance pipe insulation |
||

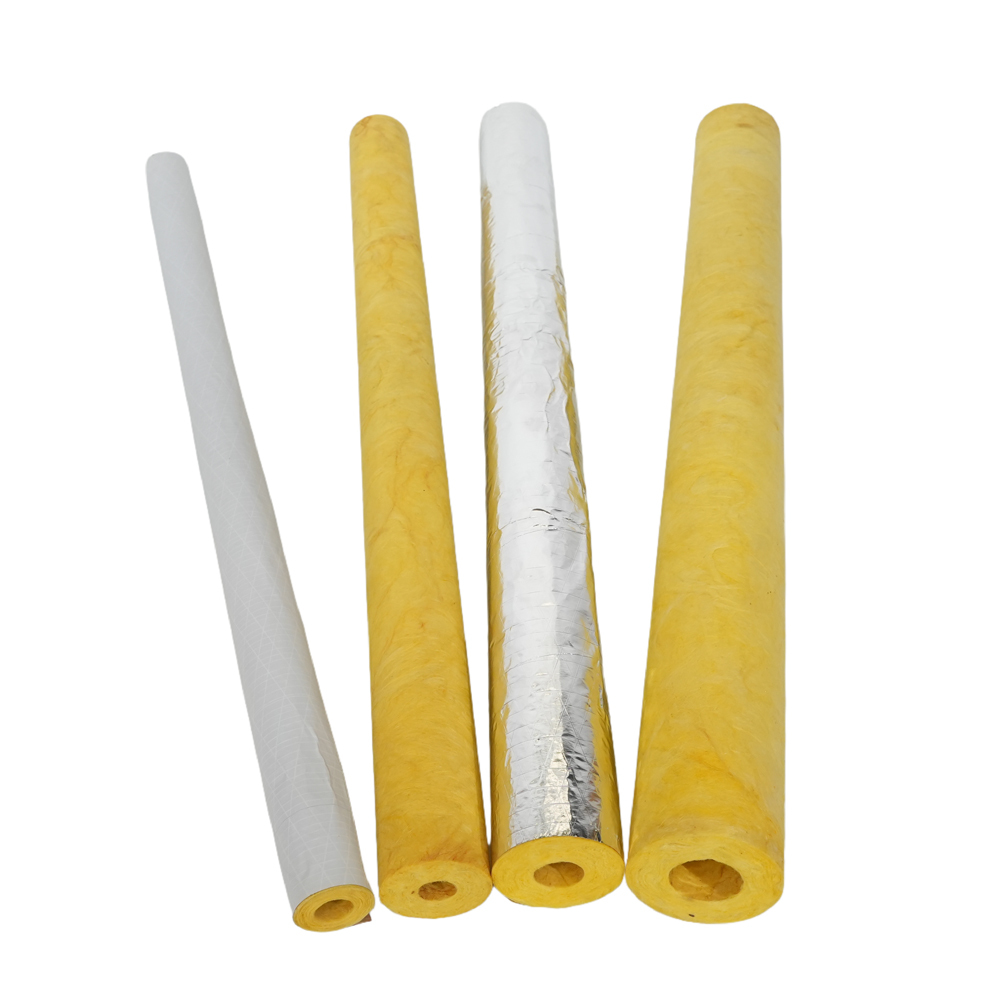

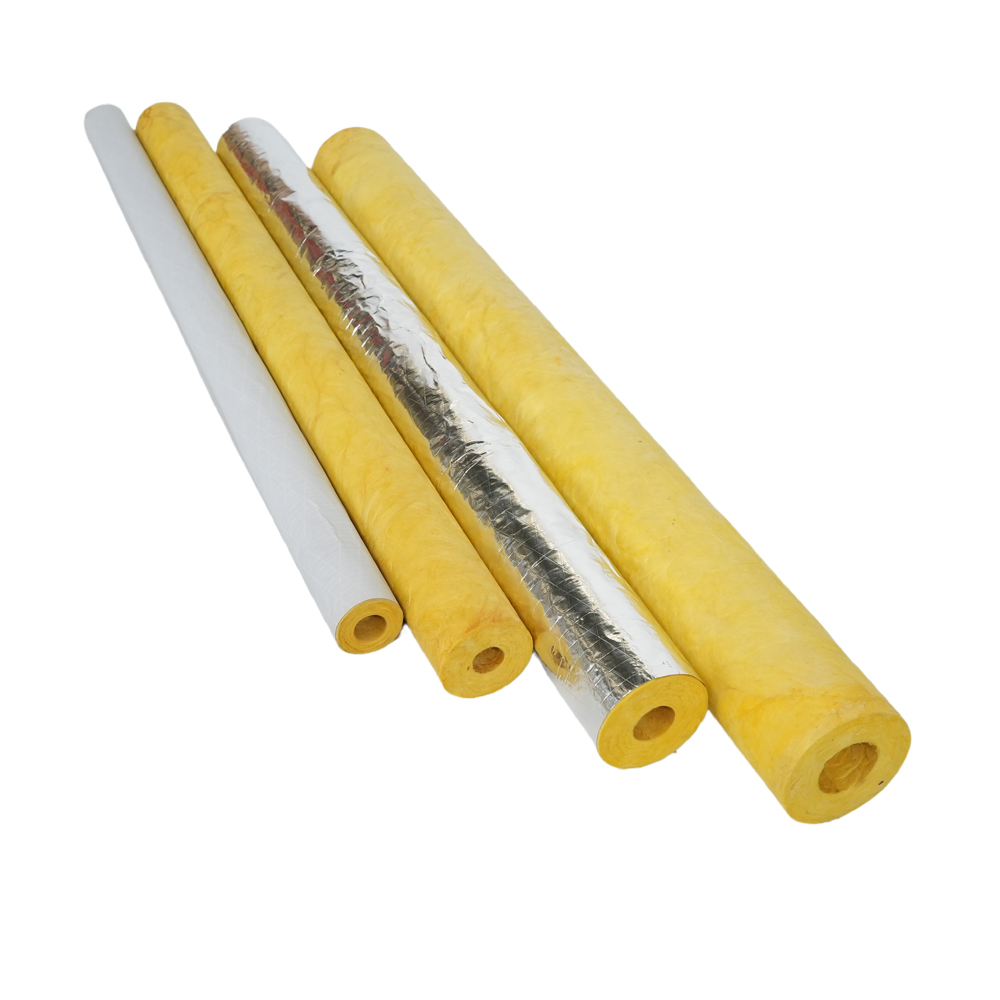

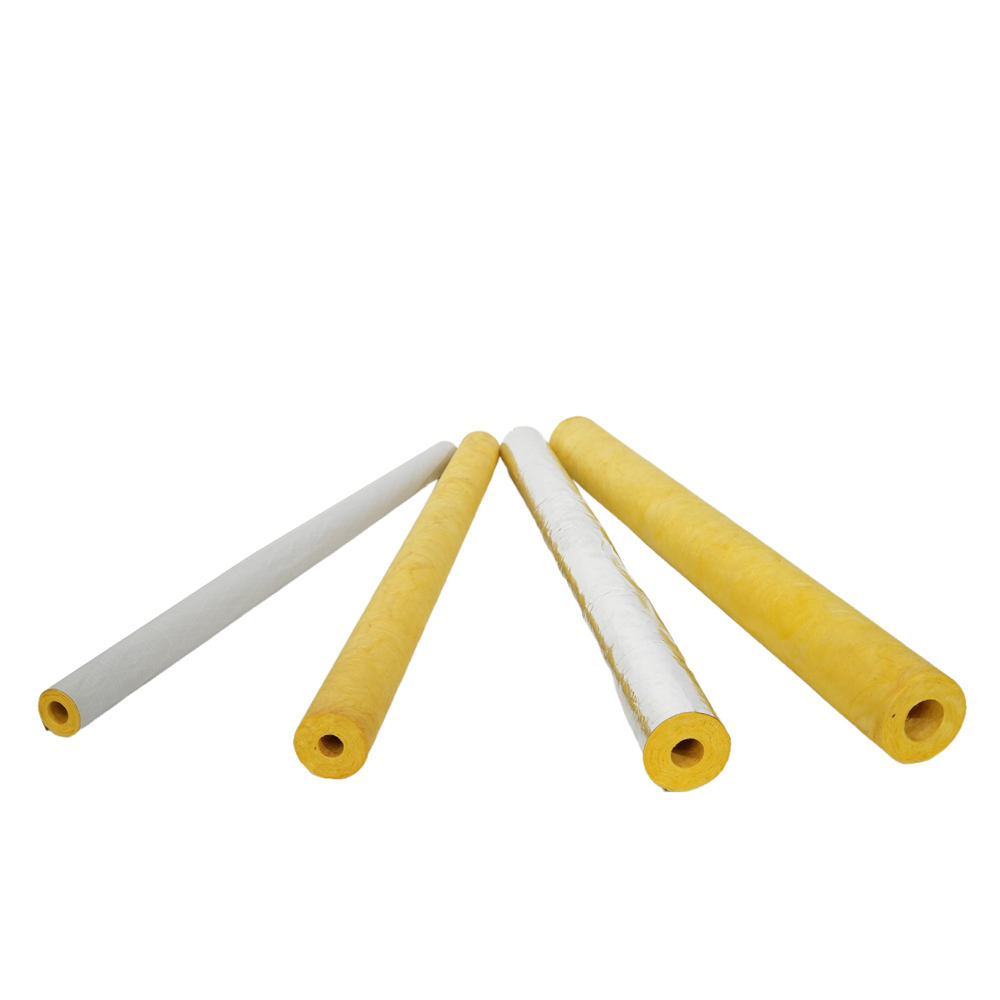

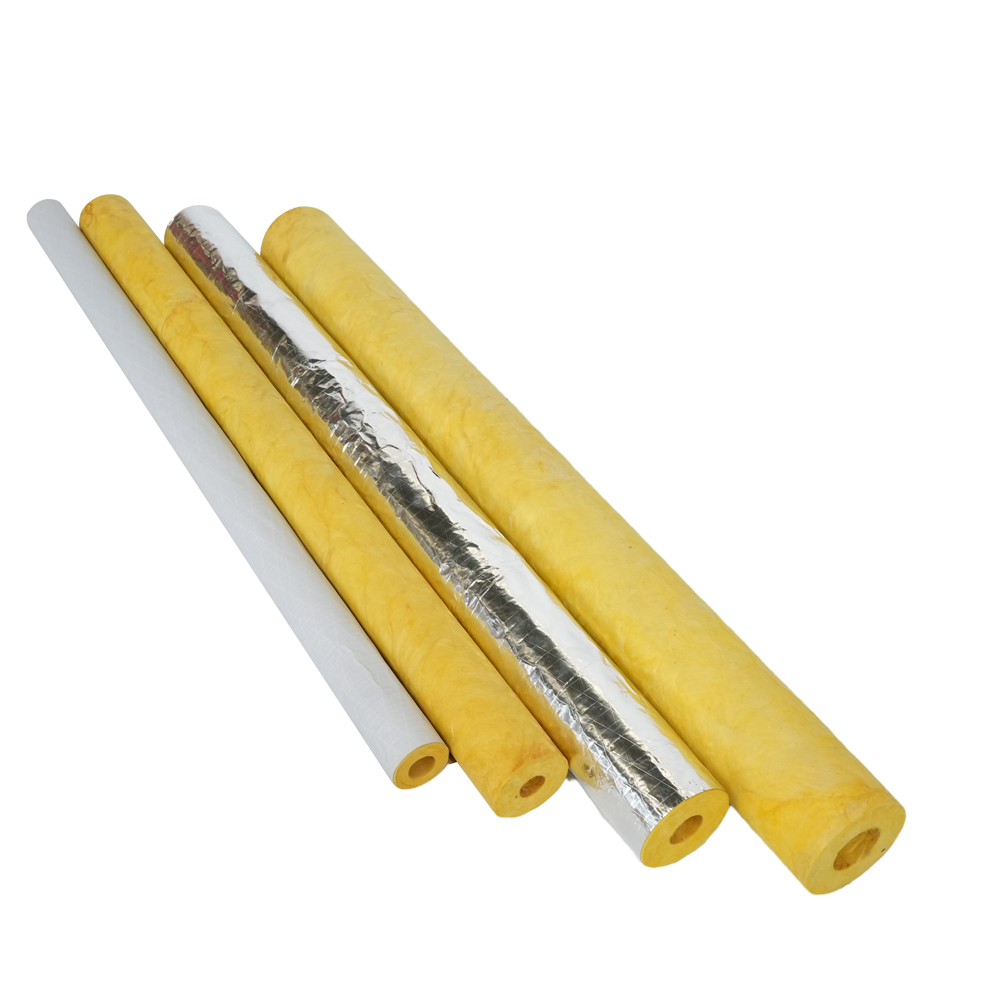

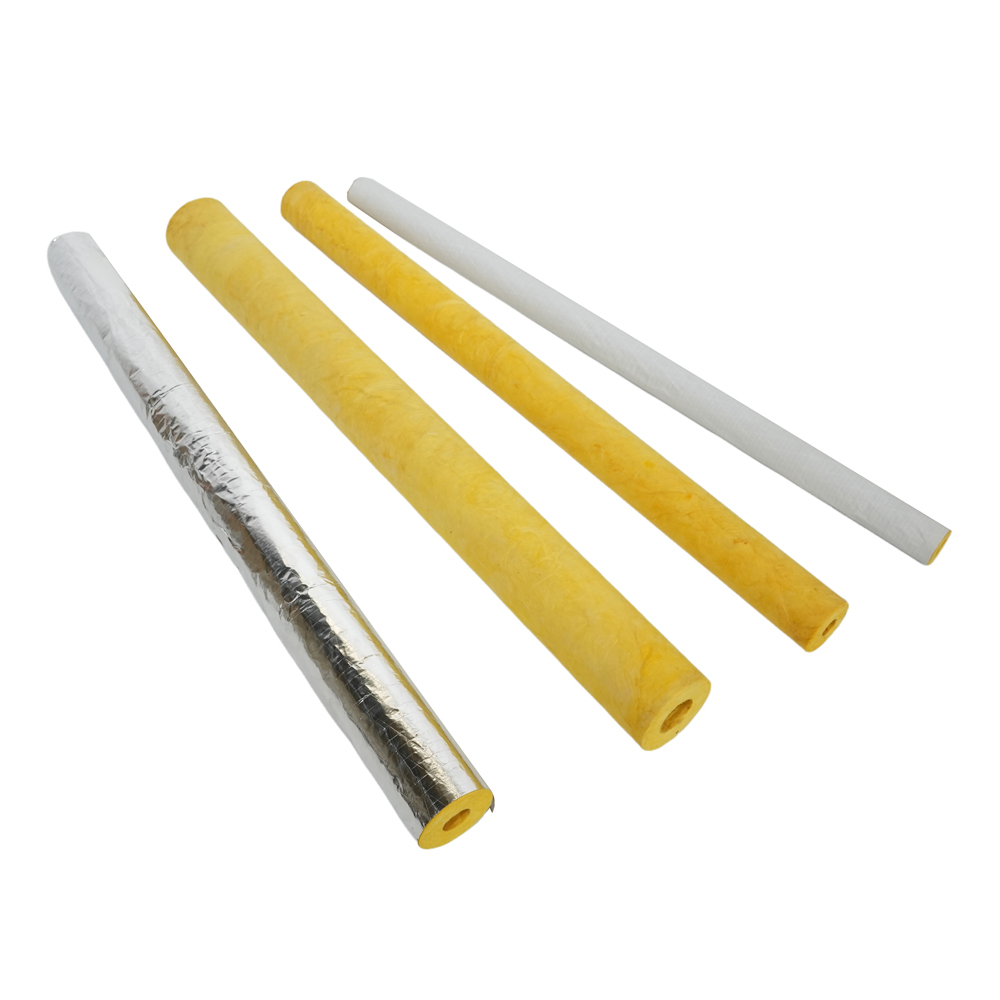

Our pre-formed Glass Wool Pipe Sections are the go-to solution for quick and efficient insulation upgrades, repairs, and maintenance. The snap-on design allows for easy installation on existing pipelines without the need for complex tools or system shutdowns. Whether you're improving energy efficiency in an old building or insulating new branches in a plant, this product offers a cost-effective and straightforward solution that delivers immediate performance benefits.
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) | ||||||
|---|---|---|---|---|---|---|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm | |
Air System Steaming and Water System High Temperature/ | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/ | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/ | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment | Relative Humidity | System Working Temperature | ||
|---|---|---|---|---|
2℃ | 7℃ | 13℃ | ||
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 | |
80% | 75 | 60 | 50 | |
85% | 100 | 90 | 75 | |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 | |
80% | 50 | 50 | 40 | |
85% | 80 | 75 | 60 | |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 65 | 50 | |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 50 | 40 | |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|---|---|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Easy Snap-On Fit: Simplifies installation over existing pipes, saving time and labor costs.
Pre-Formed Efficiency: Manufactured to precise dimensions for a perfect fit on standard pipe sizes.
Versatile Application: Suitable for a wide range of temperatures, from low-temperature cooling to medium-temperature heating.
Minimal Disruption: Ideal for maintenance work where downtime needs to be minimized.
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
