| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| 最小注文数量: | 1 40 HC |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 10営業日 |
| 支払条件: | T/T |
| 寸法: | さまざま (例: 600x1200 mm ボード) | 耐火性: | 不燃性A1種 |
|---|---|---|---|
| アプリケーション: | 建築断熱、工業断熱、HVAC | 水 吸収: | <1％ |
| 環境への影響: | 再生利用できる、環境に優しい | 密度: | 40～200kg/m3 |
| 厚さ: | 25-100 mm | 設置方法: | 機械的固定または接着剤 |
| 材料: | ミネラルウール | 熱伝導性: | 0.035W/m・K |
| 圧縮強度: | 10 kPa以上 | 吸音率: | 0.85 |
| ProductName: | 熱隔熱鉱物羊毛 | 透湿性: | 高い |
| 温度 抵抗: | -268℃～700℃ | ||
| ハイライト: | HVAC ductwork insulation pipe,thermal insulation mineral wool pipe,acoustic insulation pipe for ducts |
||

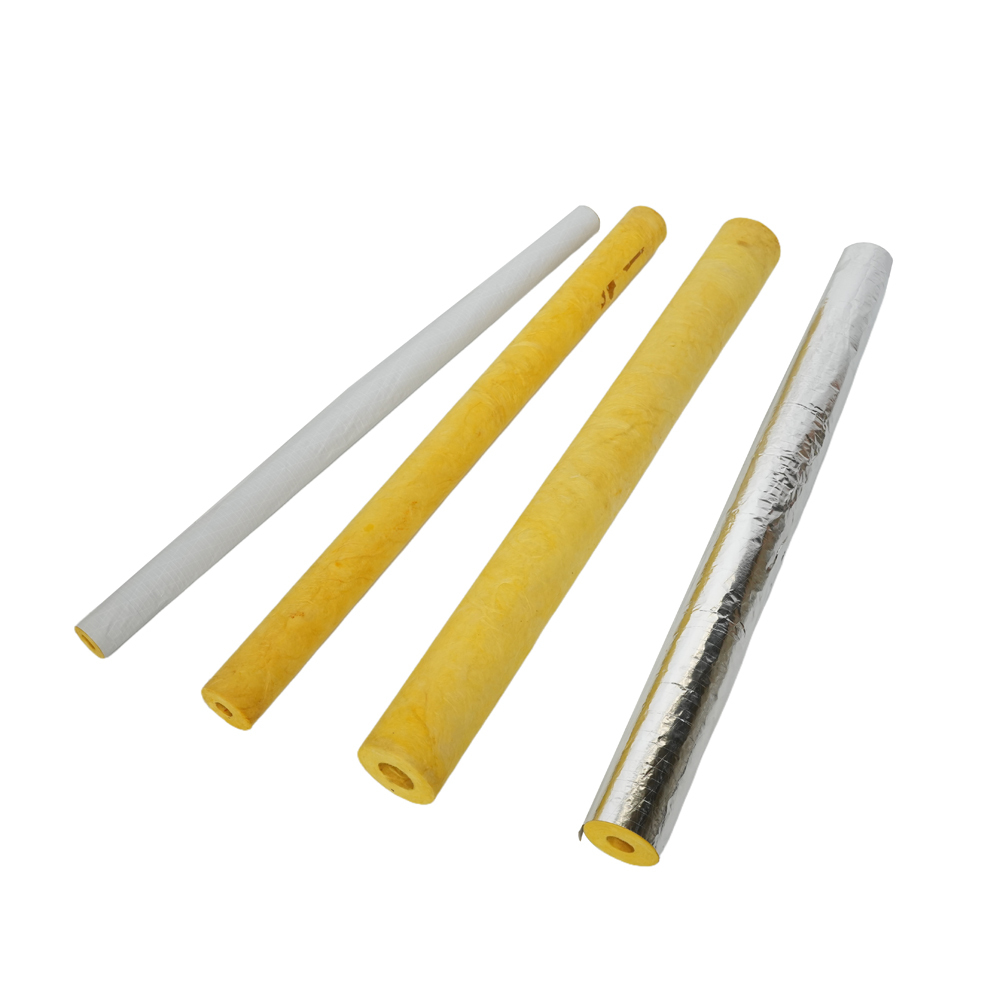

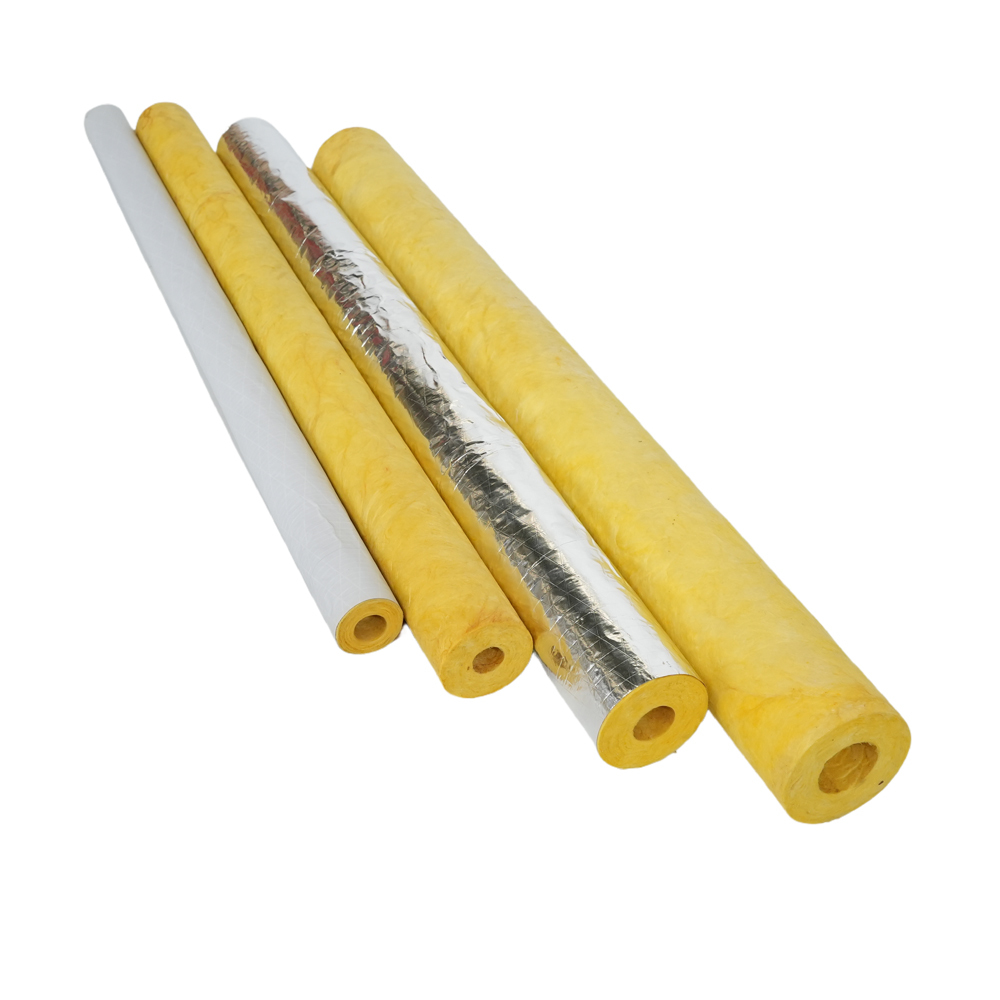

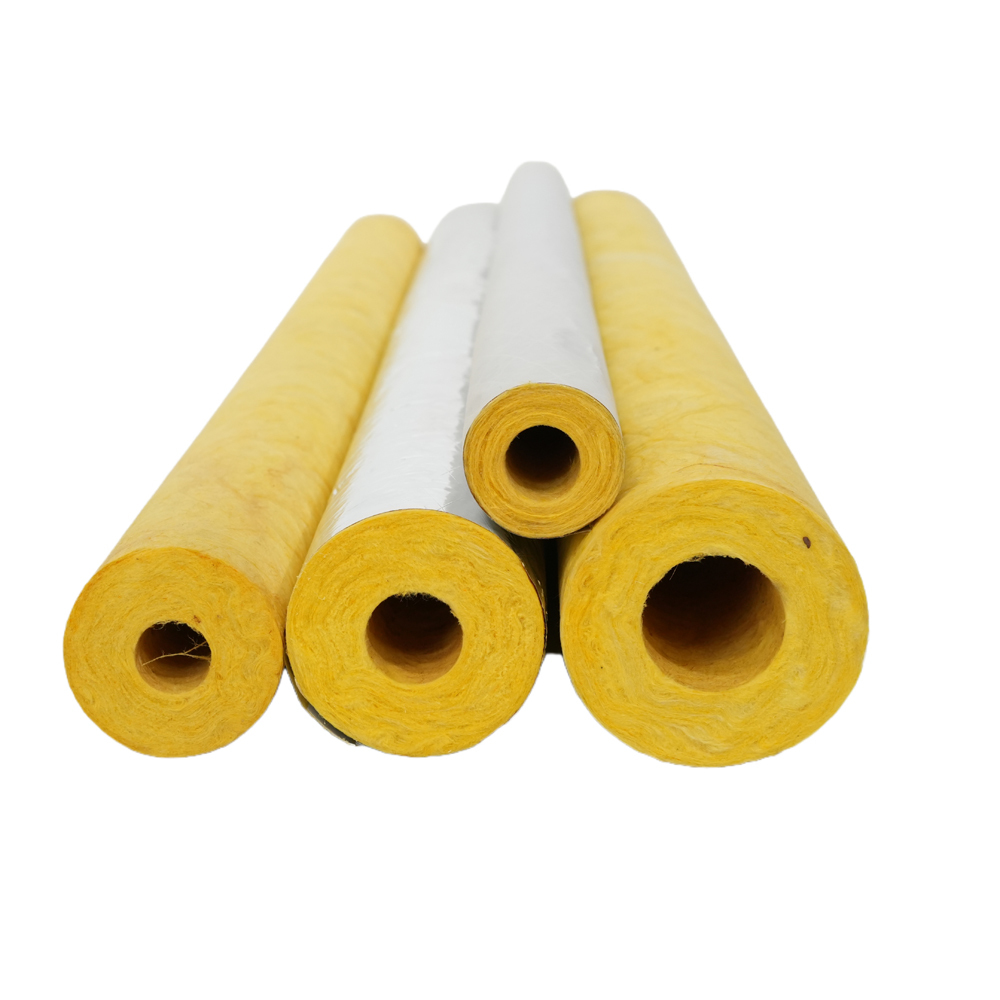

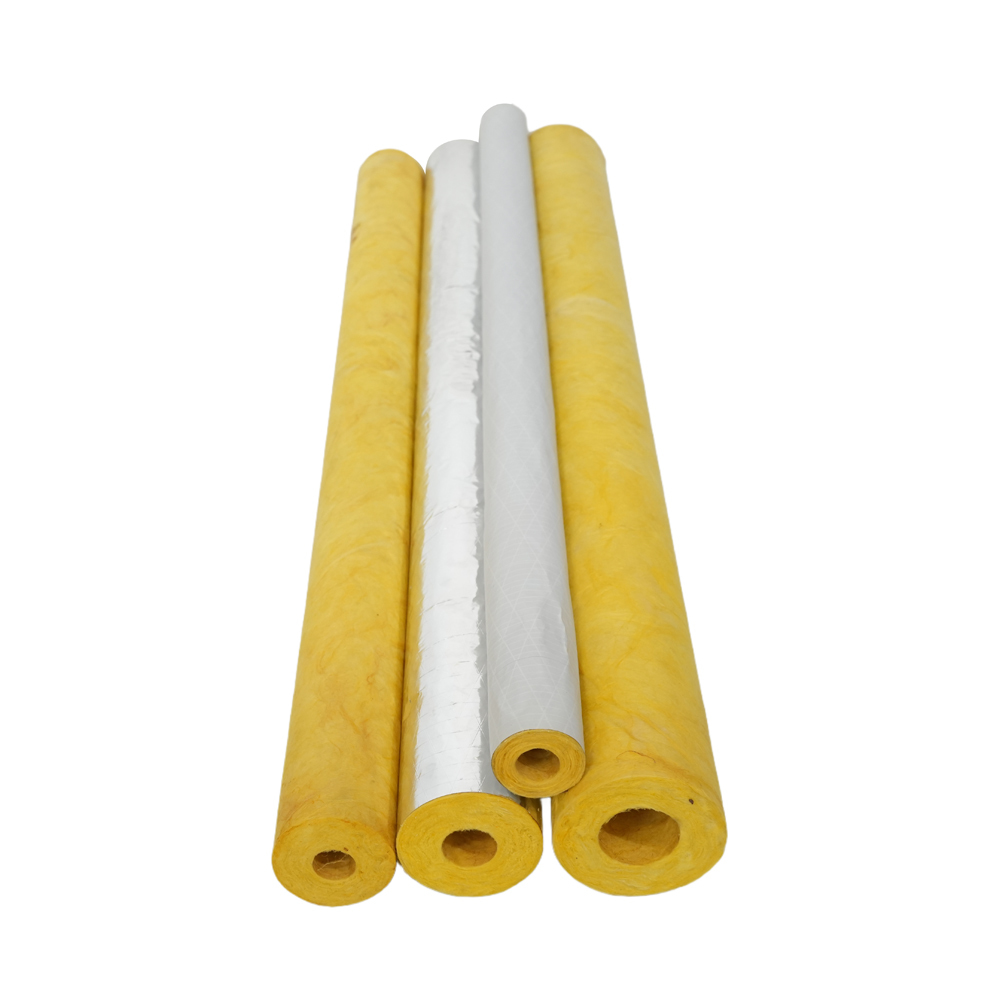

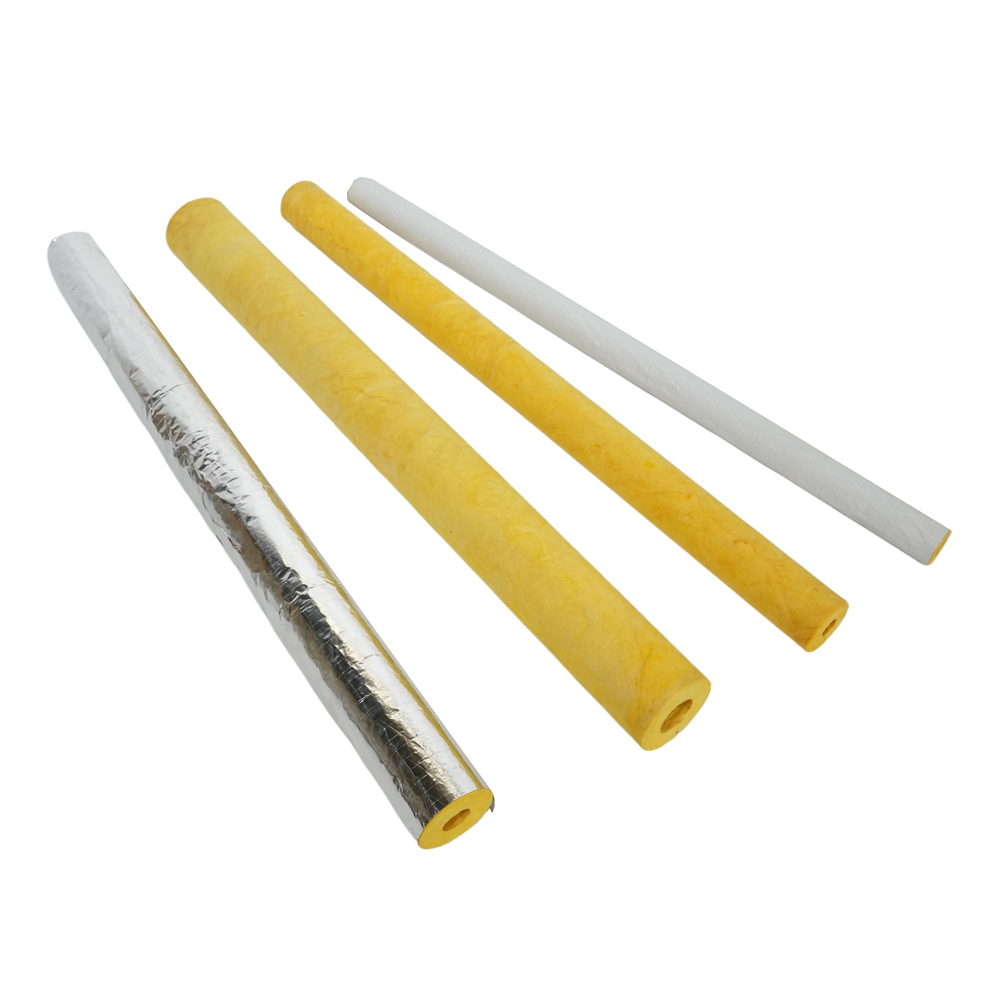

Optimize your building's climate control and acoustic comfort with our high-performance Glass Wool Pipe Sections. Specifically engineered for HVAC and ventilation systems, this insulation solution effectively minimizes heat loss or gain in air ducts, ensuring energy-efficient temperature management. Simultaneously, its superior sound-absorbing properties dampen noise from air movement and equipment, contributing to a quieter, more comfortable indoor environment. Easy to handle and install, it's the ideal choice for insulating complex ductwork in both commercial and residential buildings.
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) | ||||||
|---|---|---|---|---|---|---|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm | |
Air System Steaming and Water System High Temperature/ | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/ | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/ | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment | Relative Humidity | System Working Temperature | ||
|---|---|---|---|---|
2℃ | 7℃ | 13℃ | ||
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 | |
80% | 75 | 60 | 50 | |
85% | 100 | 90 | 75 | |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 | |
80% | 50 | 50 | 40 | |
85% | 80 | 75 | 60 | |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 65 | 50 | |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 50 | 40 | |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|---|---|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Dual-Action Performance: Provides excellent thermal insulation to reduce energy costs and acoustic insulation to lower operational noise.
Wide Temperature Range: Stable performance in temperatures from -85°C to 454°C, suitable for various air handling scenarios.
Lightweight & Flexible: Simplifies installation around elbows, tees, and joints, reducing labor time and cost.
Non-Combustible: Enhances the overall fire safety of the ventilation system.
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
