| 起源の場所: | 中国 |
|---|---|
| ブランド名: | FANRYN |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T |
| 圧縮強度: | 20 psi | 火災評価: | クラスA |
|---|---|---|---|
| 炎の拡散指数: | 25 | 熱伝導率: | 0.23 w/m・k |
| 抗張力: | 50 psi | 耐薬品性: | ほとんどの化学物質に耐性があります |
| 温度範囲: | -40°F〜1200°F | 蒸気透気性: | 0.05パーム |
| 厚さ: | 1インチ | 材料: | ミネラルウール |
| 音の吸収: | NRC 0.85 | 水分耐性: | 非hygroscopic |
| 喫煙 開発 指数: | 50 | 密度: | 2.5 lbs/ft³ |
| ハイライト: | A1 fire rated rock wool blanket,external wall insulation mineral wool,building facade rock wool blanket |
||

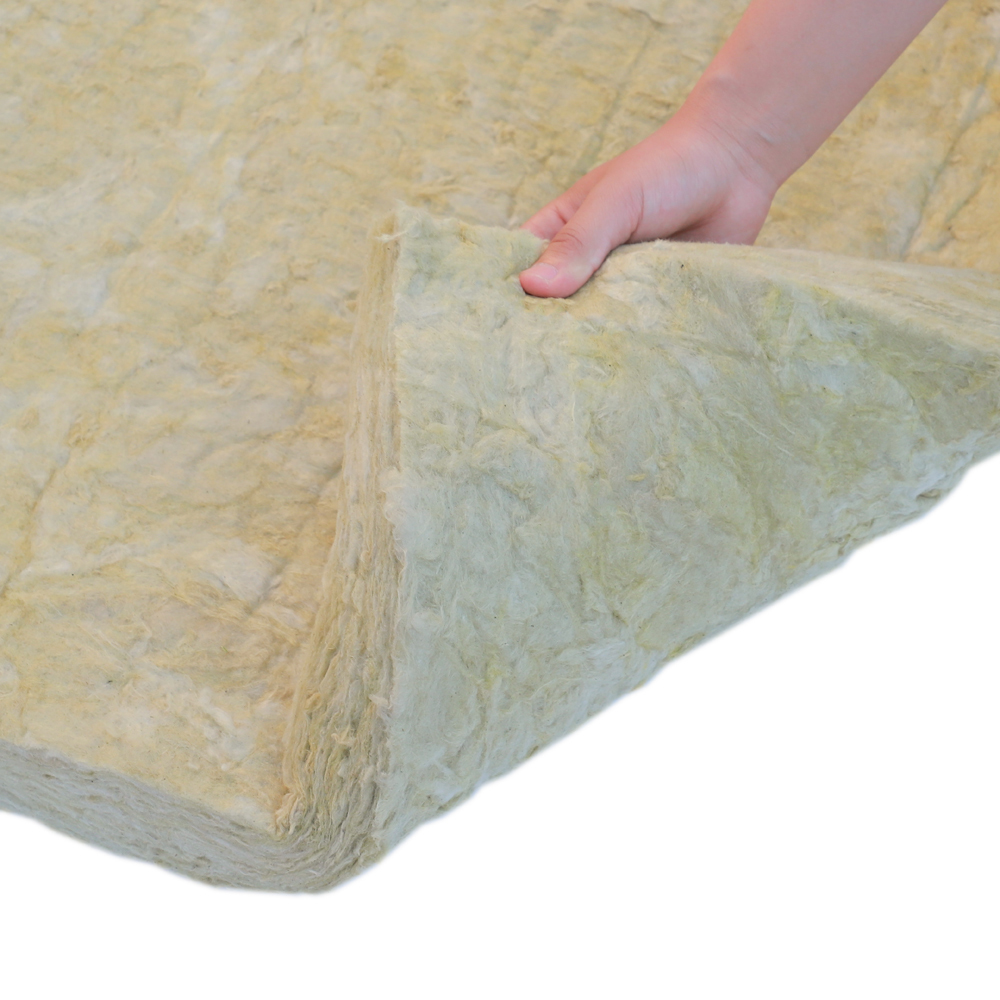

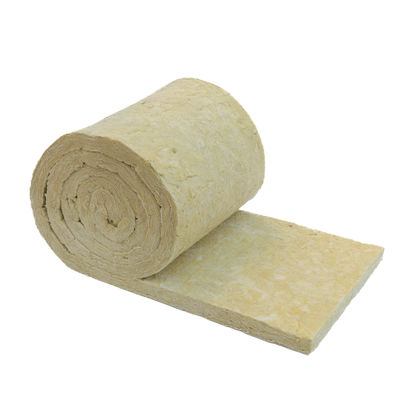

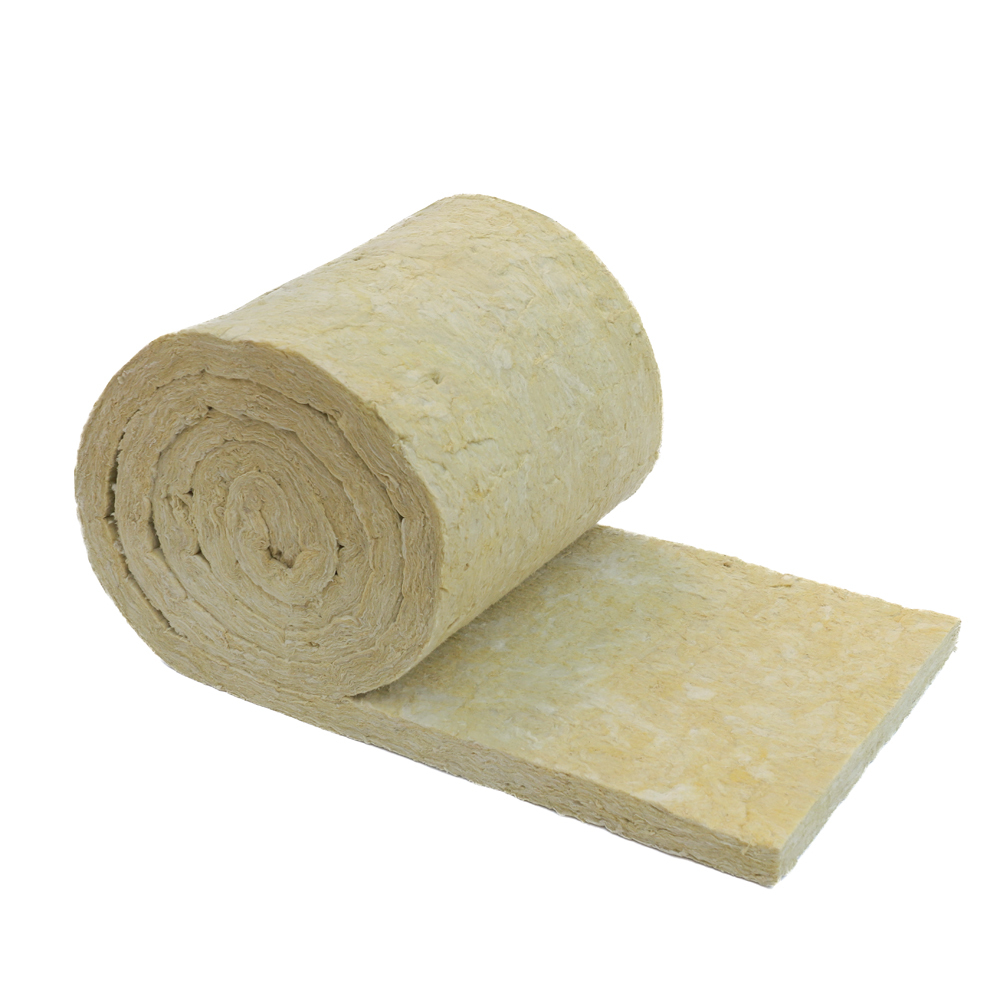

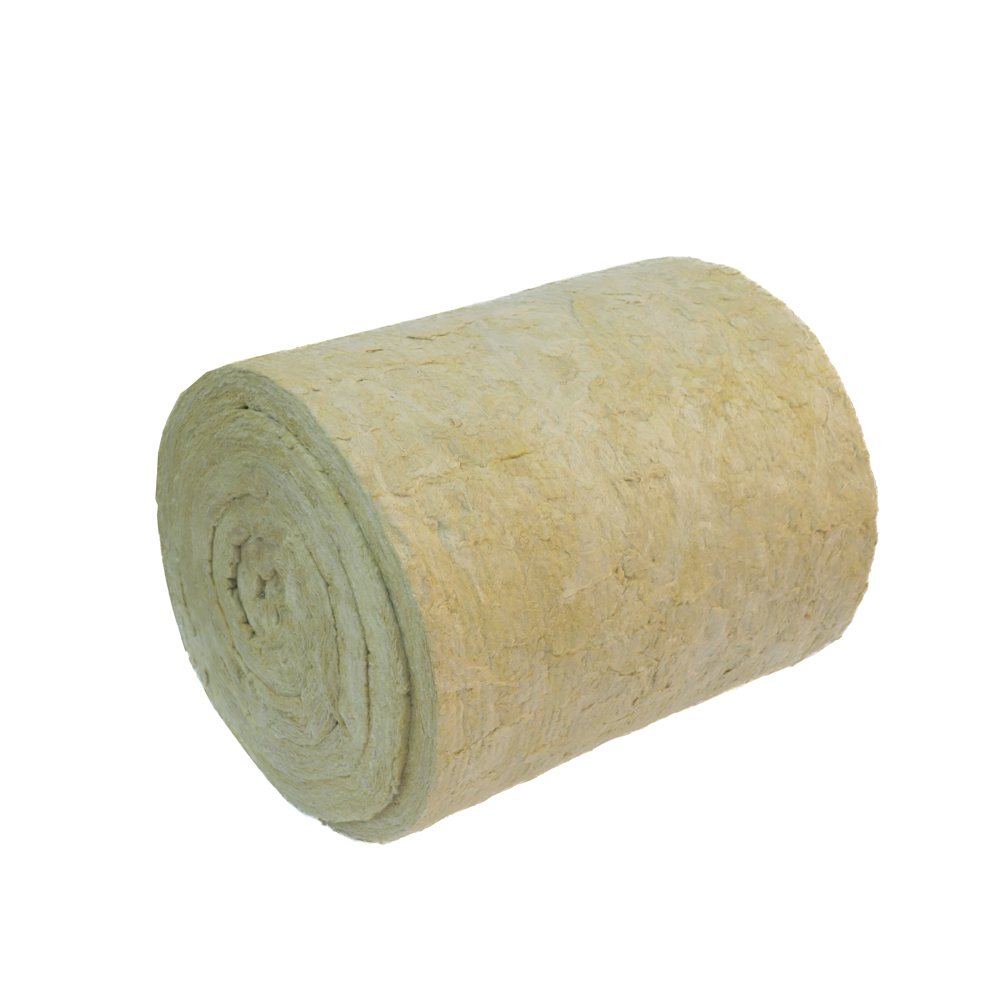

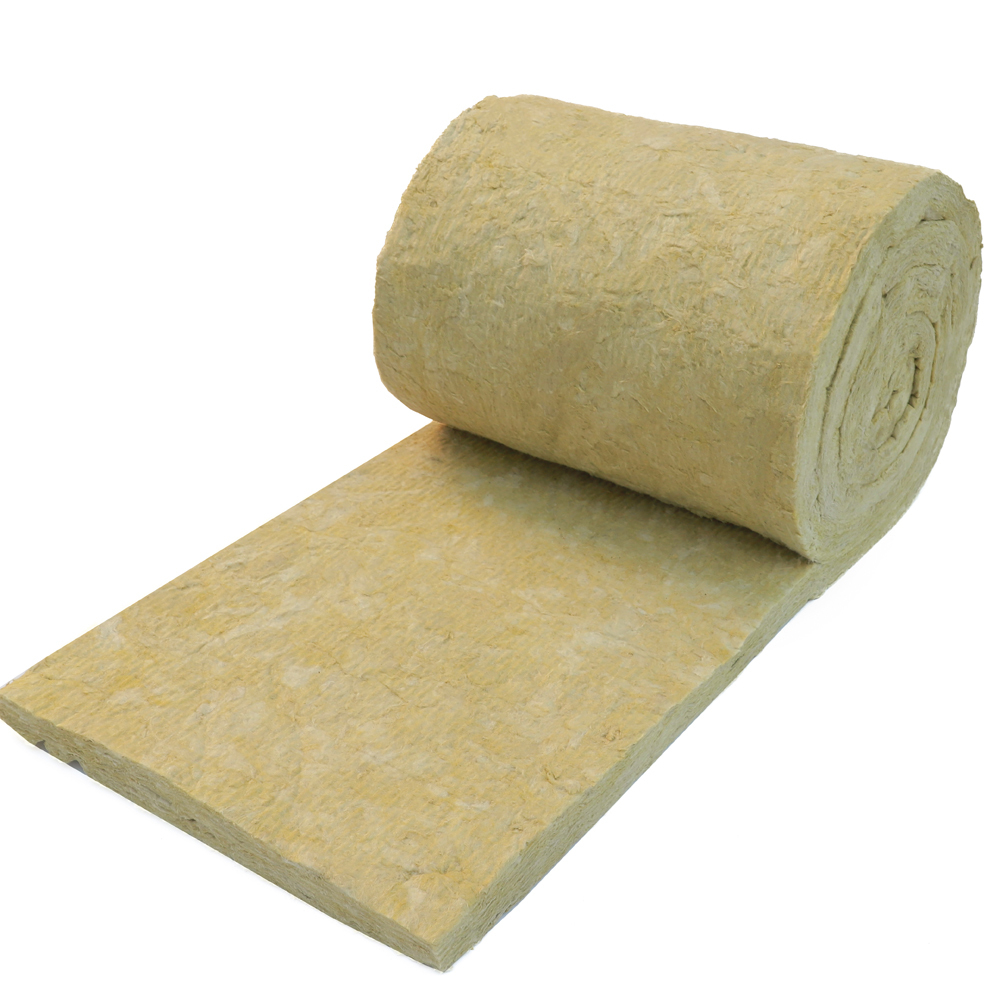

Product introduction of the Rock Wool Blanket
FANRYN Rock Wool Blankets are engineered for insulating large-diameter industrial pipelines in power plants, refineries, and chemical processing facilities. With a melting point exceeding 1000°C and low thermal conductivity (≤0.044 W/mK), our blankets provide superior thermal insulation and fire protection for high-temperature applications. The uniform fiber structure ensures consistent performance, reducing energy loss and protecting personnel.
Production details of the Rock Wool Blanket
Product parameter of the Rock Wool Blanket
Properties |
Blanket |
Standards |
Density Tolerance |
±10% |
GB/T 19686-2005 |
Fire Performance |
Non-Combustible |
GB/T 5464-1999 |
Reaction to fire Class A1 |
GB/T 8624-2006 |
|
Thermal Conductivity |
≤0.044 |
GB/T 10295 |
Fiber Diameter |
7(+/-1)um |
GB/T 5480. 4 |
Shot Content |
≤12% |
|
Moisture Content |
≤0.5% |
|
Organic Matter Content |
≤4% |
|
Melting Point |
>1000℃ |
Product size of the Rock Wool Blanket
Product |
Blanket |
Density (kg/m3) |
60-100 |
Size: L x W (mm) |
600X5000 |
Thickness (mm) |
30-150 |
Product feature of the Rock Wool Blanket
Product application of the Rock Wool Blanket
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process

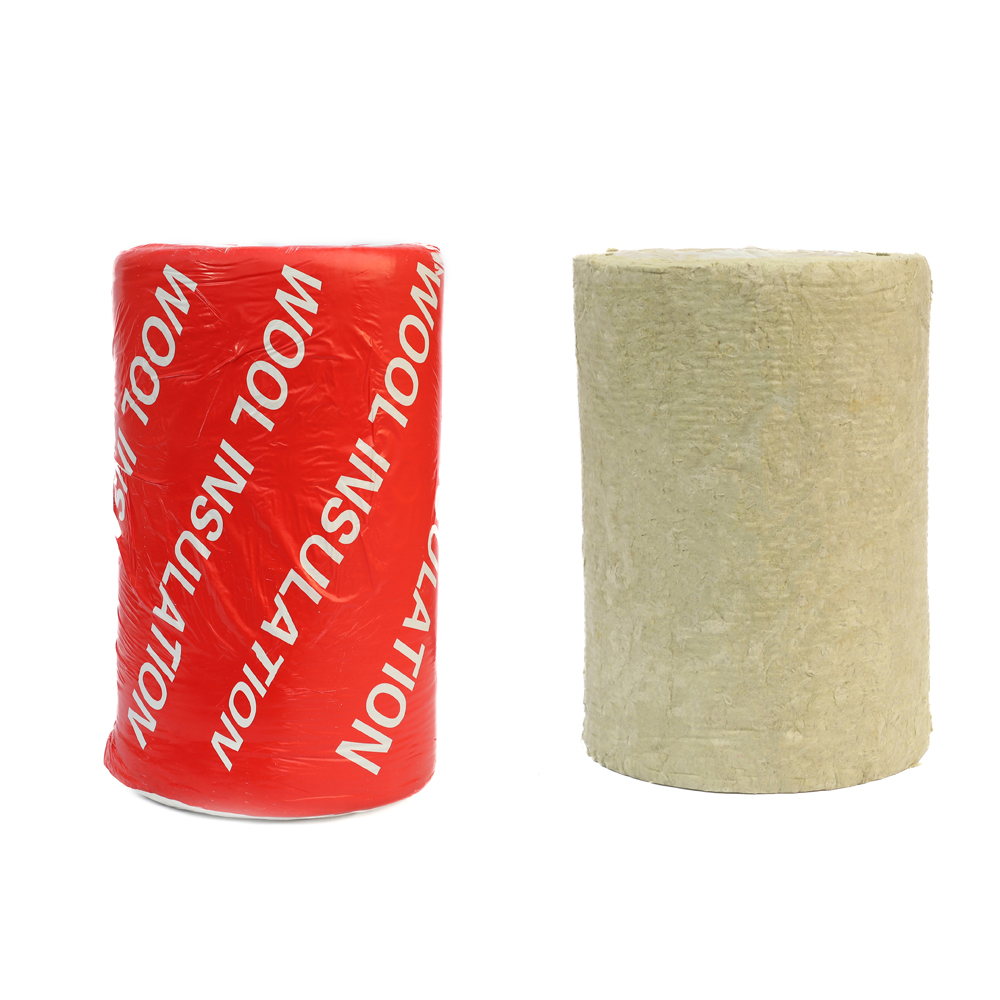

Q2: How to pack exported goods?
A2: Plastic bag + woven bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on Rock Wool Blanket?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
