| 起源の場所: | 中国 |
|---|---|
| ブランド名: | fanryn |
| 証明: | ASTM E84 |
| モデル番号: | Glasswoolボード |
| 最小注文数量: | 1*40hq |
| 価格: | 0.1-5$ |
| パッケージの詳細: | ビニール袋 |
| 受渡し時間: | 7〜10日 |
| 支払条件: | T/T |
| 供給の能力: | 10000平方メートル |
| 耐薬品性: | ほとんどの化学物質に耐性があります | 材料: | ミネラルウール |
|---|---|---|---|
| 密度: | 24-96 kg/m3 | 熱伝導率: | 0.031-0.042 w/mk |
| 音の吸収: | 高い | 水分耐性: | 水をはじく |
| 耐火性: | 不燃性 | 環境への影響: | 環境に優しい |
| 適用する: | 断熱材の構築 | タイプ: | 熱絶縁 |
| 耐久性: | 長持ちする | インストール方法: | 簡単にインストールできます |
| 料金: | 手頃な価格 | ||
| ハイライト: | fireproof HVAC acoustic glasswool board,Class A1 high-temperature insulation board,water-resistant mineral wool insulation board |
||

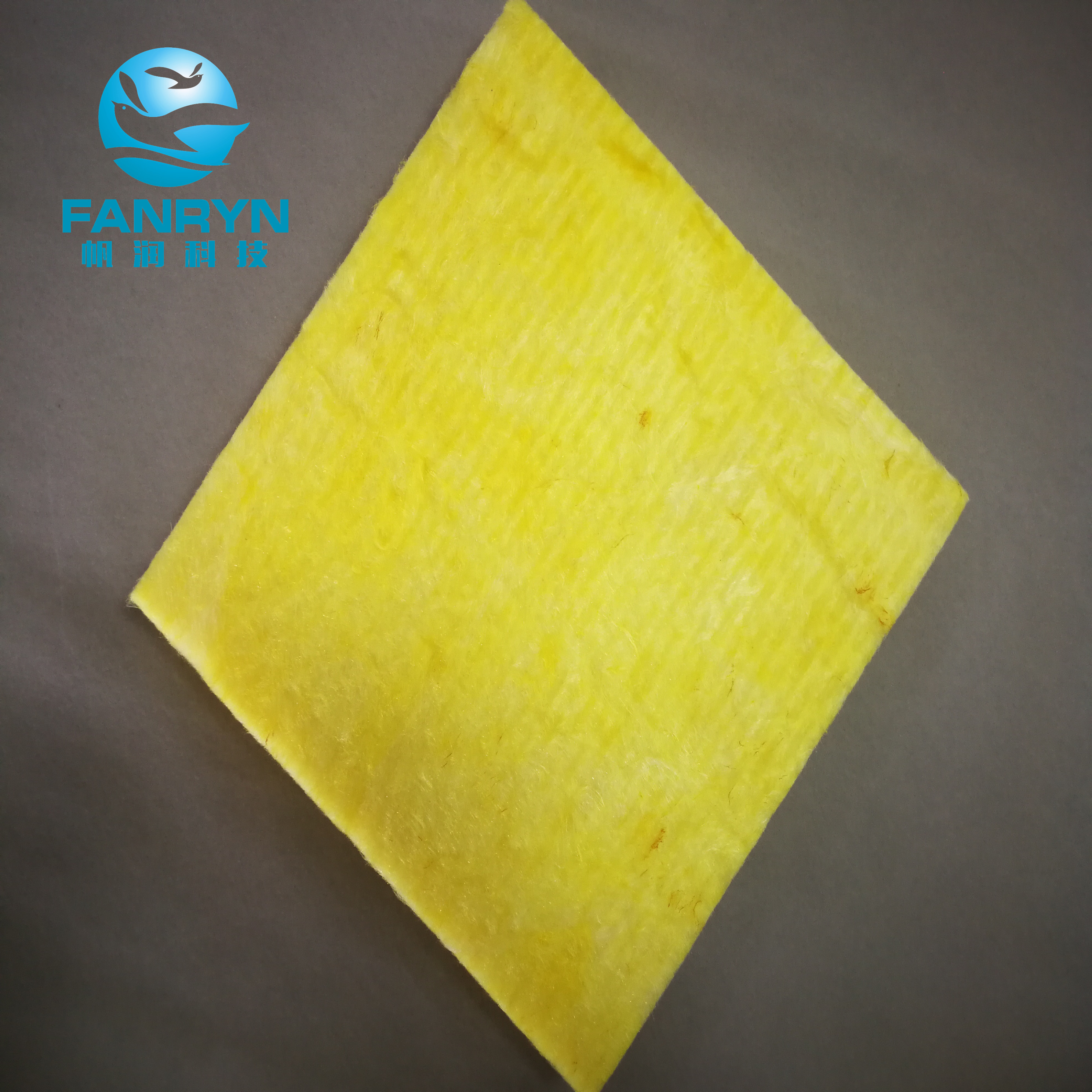

Product Introduction Of The Bare Glass Wool Board Insulation
FANRYN Centrifugal Glass Wool Board is a rigid, hot-formed panel known for its consistent strength and dimensional stability. It delivers excellent thermal insulation performance across a wide temperature range, making it suitable for both high- and low-temperature applications. Commonly used in high-spec construction and industrial settings, it is ideal for partition walls, suspended ceilings, duct and equipment insulation, and noise reduction in mechanical rooms. It also performs effectively as a moisture barrier when installed behind metal ceiling panels. High-density laminated versions are specifically engineered for HVAC duct insulation systems.
Product Parameter Of The Glass Wool Board Insulation
|
Technical Data |
|||
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
24-96 |
GB/T 5480.3 |
|
Average fiber dia |
μm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤ 1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Preshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m·k |
0.031-0.042 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥ 98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤ 5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m3 2000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤ 0.3 |
|
Product Size Of The Glass Wool Board Insulation
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Pcs/packing |
|
24-96 |
0.025-0.1 |
0.6-1.25 |
0.6 |
5-18 |
|
24-96 |
0.025-0.1 |
0.6-2.4 |
1.1-1.25 |
5-18 |
Product Feature And Application Of The Glass Wool Board Insulation
1.Wall Insulation
Suitable for exterior and interior wall applications, it ensures stable indoor temperature control, significantly reduces energy consumption, and improves a building’s ability to adapt to changing climatic conditions.
2.Steel Structure Insulation
Designed for industrial facilities, warehouses, and large-span steel structures, it provides efficient thermal insulation while enhancing energy savings and fire safety performance.
3.Indoor Partition Walls
Serves as a lightweight interior partition filler that combines thermal and sound insulation, helping to maximize usable space and ensure occupant privacy.
4.Railway Vehicle Insulation
Offers integrated thermal and acoustic management in railway carriages, enhancing travel comfort and meeting stringent material standards for the transportation industry.
5.Sound Absorption & Noise Isolation
Effectively minimizes noise transfer in commercial, industrial, and residential settings through absorption and isolation techniques—ideal for theaters, studios, and mechanical rooms

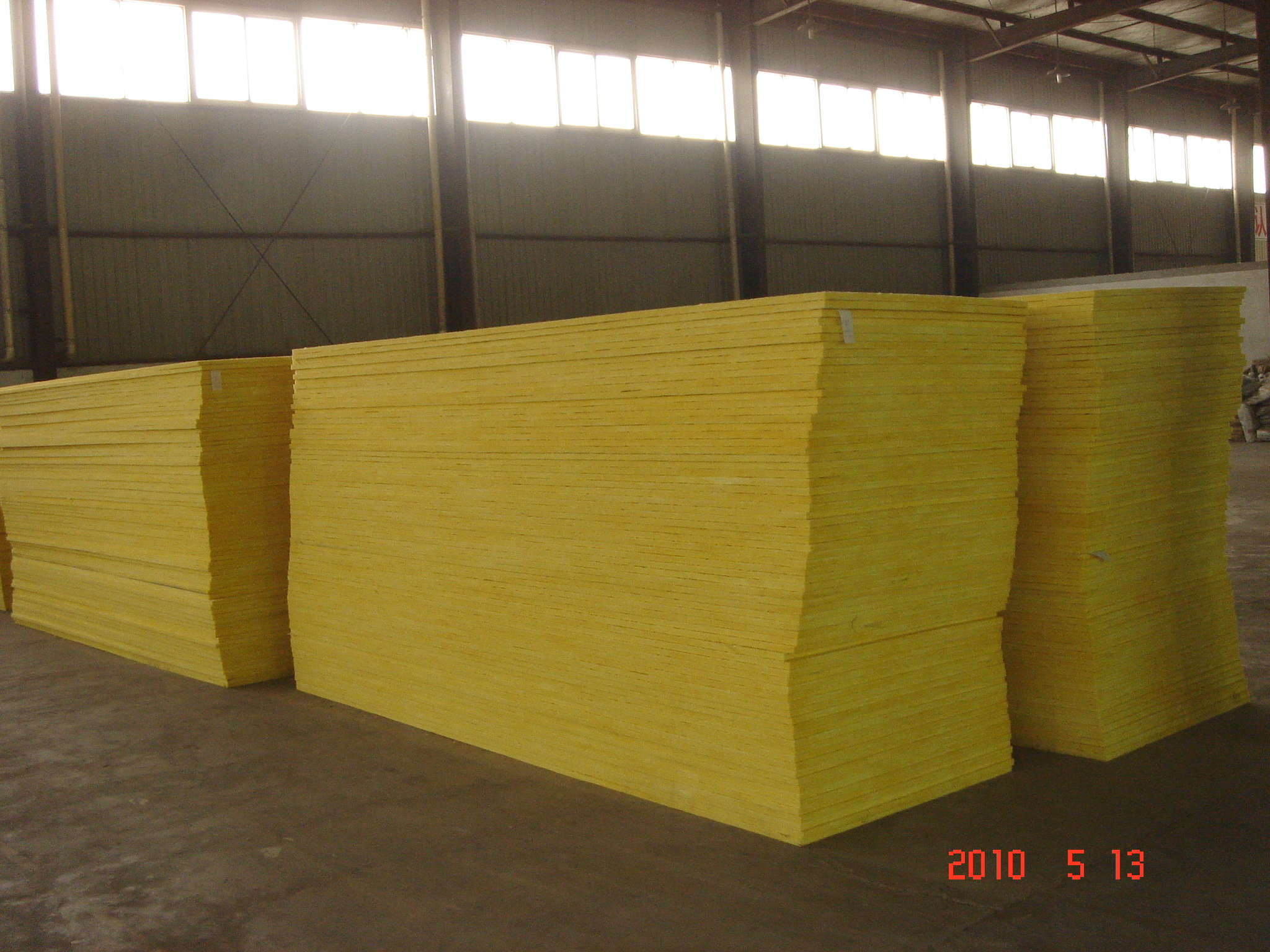

Production Details Of The Glass Wool Board Insulation
Product Packing Of The Glass Wool Board Insulation
The normal packing is plastic bag
OEM is acceptable

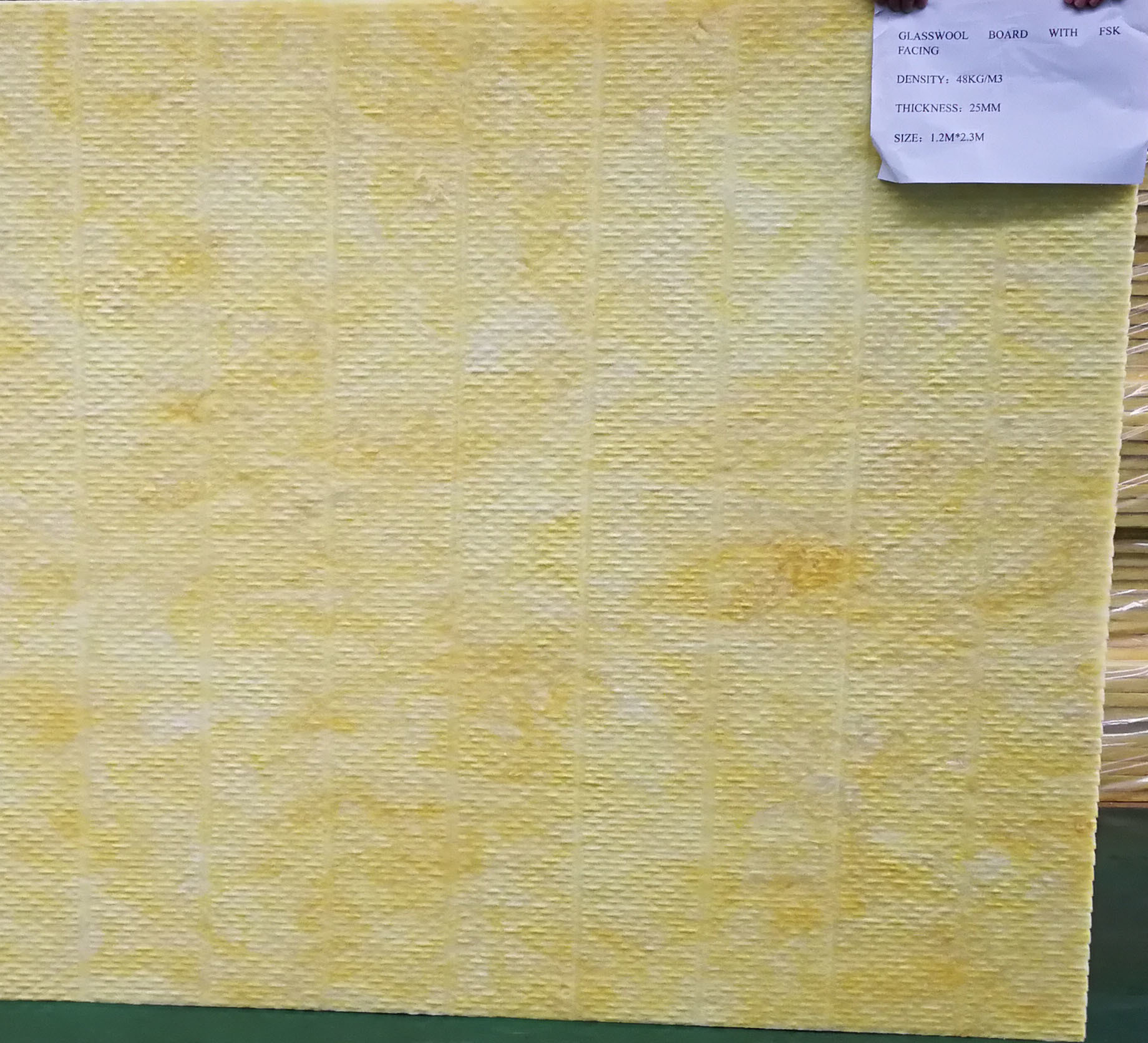

Production Facing Of The Glass Wool Board Insulation
1.Foil-Scrim-Kraft Facing
2.Alum Glass Cloth Facing
3.Fiberglass Tissue
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
Our service
-One year warranty for all products
-Necessary technical support
-Delivery quality products with excellent service on time
-Supply one stop solution on insulation and ventilation products
-Supply high level QC service
