| 起源の場所: | 中国 |
|---|---|
| ブランド名: | fanryn |
| 証明: | GB 8624-1997 |
| モデル番号: | Glasswoolブランケット |
| 最小注文数量: | 1*40hq |
| 価格: | 1-10$ |
| パッケージの詳細: | 真空ビニール袋+織物バッグ |
| 受渡し時間: | 7〜10日 |
| 支払条件: | T/T |
| 供給の能力: | 約7〜10日で1*40hqを終了できます |
| 材料: | グラスウール | 音吸収係数: | 1.03 製品反響方法 24kg/m3 2000HZ |
|---|---|---|---|
| 水分率: | 5％未満 | アプリケーション: | 屋根、壁、床の断熱 |
| 環境への影響: | 環境に優しい | 熱伝導率: | 0.031-0.042 w/mk |
| 耐薬品性: | 非腐食性 | 断熱タイプ: | サーマル |
| 耐火性: | クラスA1 | 密度: | 10-100 kg/m3 |
| ハイライト: | premium glass wool insulation blankets,HVAC system glass wool blankets,thermal insulation mineral wool blankets |
||

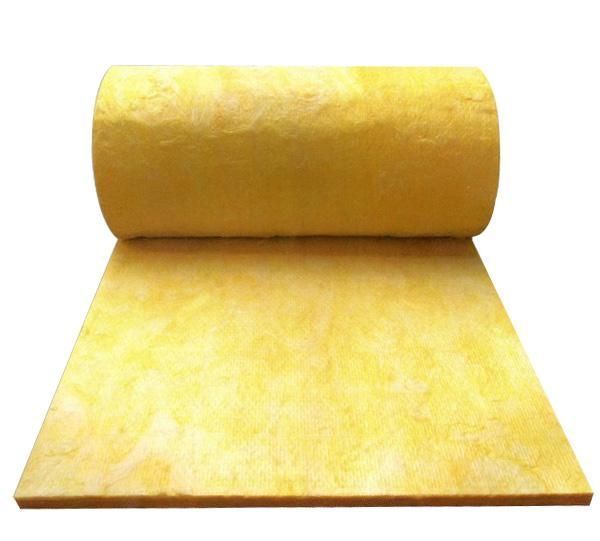

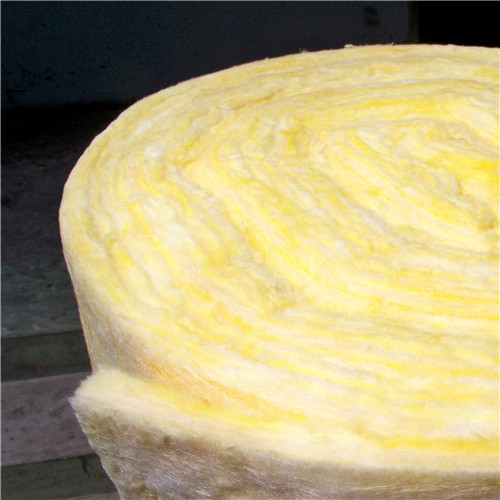

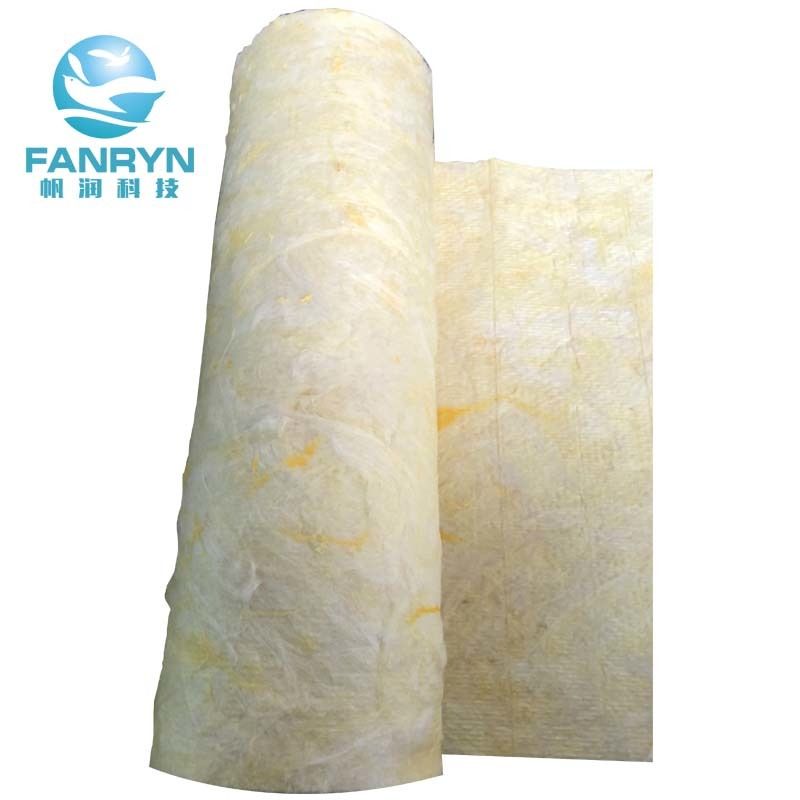

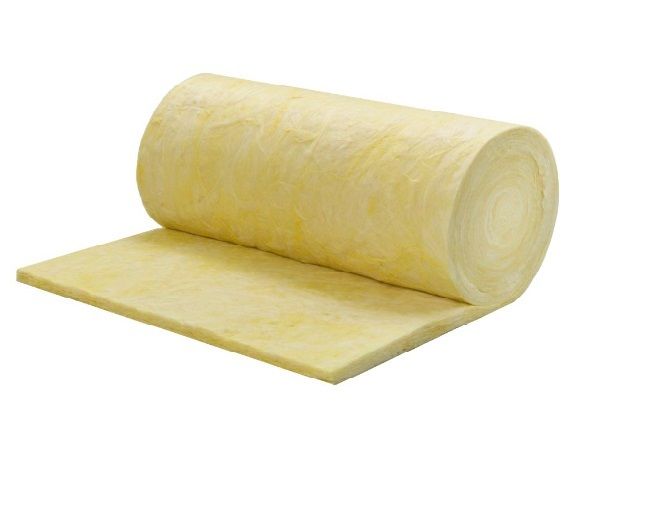

Product Introduction Of The Glass Wool Blanket Insulation
FANRYN centrifugal glass wool blanket Insulation are made for large laying area. Beside the character of thermal insulation, it also has the performances of shock absorption and acoustical isolation,especially for middle or low frequency sound, which can cancel the noise and improve working environment.
Our premium glass wool blankets deliver exceptional thermal insulation, acoustic absorption, and fire resistance in one lightweight, durable solution.
Product Parameter Of The Glass Wool Blanket Insulation
|
Technical Data |
|||
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-48 |
GB/T 5480.3 |
|
Average fiber dia |
μm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤ 1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Preshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m·k |
0.031-0.042 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥ 98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤ 5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m3 2000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤ 0.3 |
|
Key Benefits:
-Superior Thermal Insulation
-Excellent Sound Absorption
-Class A Fire Rating
-Lightweight & Durable
-Eco-Friendly & Moisture-Resistant
-Easy Cutting & Customization
Product Size Of The Glass Wool Blanket Insulation
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Rolls/packing |
|
|
10-48 |
0.025-0.2 |
5-30 |
0.6 |
2 rolls |
|
|
10-48 |
0.025-0.2 |
5-30 |
1.1 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.15 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.2 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.25 |
1 roll |
2 rolls overlapping |
Product Feature And Application Of The Glass Wool Blanket Insulation
1. Heat preservation for wall
2. Heat preservation of steel structure
3. Indoor partition wall
4. Train compartment
5. Sound absorption and acoustical isolation
Production Details Of The Glass Wool Blanket Insulation
Product Packing Of The Glass Wool Blanket Insulation
1. Vacuum plastic bag+woven bag
2. Vacuum plastic bag+PE bag
3. Vacuum plastic bag+PE shrinking bag
4. PE shrinking bag
Production Facing Of The Glass Wool Blanket Insulation
1.Foil-Scrim-Kraft Facing
2.Alum Glass Cloth Facing
3.Fiberglass Tissue
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Vacuum plastic bag + woven bag(Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
